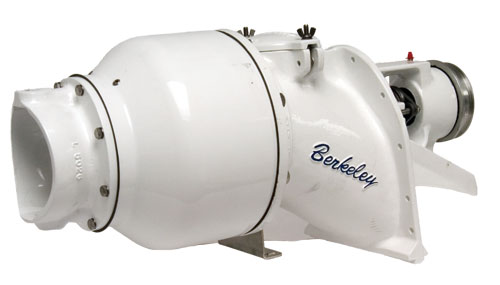

Berkeley Jet Drive Model 12JE
DESCRIPTION: The Model 12JE Jet-Drive is constructed of a super-tough, high-strength, aluminum alloy, castings the finest and most serviceable material available. Precision machined and hard-anodized, assembled with stainless steel fasteners, assures maximum performance with a minimum of maintenance. Dissimilar metals are protected from each other by inert insulators to retard corrosion. Using Berkeley's unique single stage, mixed flow, impeller, this unit gives maximum thrust per horsepower. Developed over a period of many years, and field tested, assures the user of the Model 12JE Jet-Drive many years of trouble-free boating. A popular unit with boat manufacturers because of its ease of installation in specially molded hulls.
APPLICATION: Designed for fast, simple installation in specially molded hulls measuring 14 to 24 feet in overall length, with a gross weight of not over 5,000 pounds per unit, including passengers and gear.
FEATURES: No intake adapter or transom housing required for simple bolt in installation in specially molded hulls. Entire unit located outside the hull, saving five inches. Lighter weight, 40 lbs. less than the 12JC. Only one rotating element, the shaft and impeller assembly. A single stage enclosed, mixed flow, impeller available in aluminum or stainless steel, machined to match horsepower involved. Replaceable, insulated impeller wear ring, machined to close tolerances for minimum bypass and high pump efficiency. Strong self-cleaning finger-type intake grate. Readily accessible and serviceable stuffing box-type shaft seal. Heavy duty, grease lubricated, ball-type, thrust bearing isolated and sealed for protection from accidental water damage. Easily accessible, outside the hull, handhole for impeller clean out in the unlikely event of clogging. Long life, oil lubricated, sleeve-type, tail bearing, sealed from the water. Smooth working steering nozzle and reverse bucket for effortless steering in forward and reverse with low, side-mounted, controls. Nozzle 0 ring seal assures minimum spray. Long blade rudder for positive boat handling at low speeds with no appreciable loss in performance at higher speeds.
POWER REQUIREMENTS: Approximately 10 to 27 pounds gross boat weight requires 1 HP. Higher or lower speeds will be obtained as gross weight varies. Weight distribution, hull length and design are other factors affecting total boat performance. The standard aluminum alloy impeller is used with engines up to 400 HP; over 400 HP, a stainless steel impeller is recommended.
OPTIONAL EQUIPMENT: Stainless steel impeller, shift-throttle controls, instrument panels, gauge clusters and wiring harnesses, intake fins and transom trim tabs, hull insert or mold plug.
DIMENSIONS / WEIGHT: Net weight approximately 85 pounds. Dimensions may vary and are for estimating only. Refer to catalog installation drawings for complete dimensions.
- Includes Long Blade Rudder, Intake Grate and all Necessary Fastenings.
- Shift uses Type 43C Cable. Specify Impeller Size.
- 12JE with Aluminum "A" Impeller, Catalog Number 0203-B-06578.
Click on the part number to check pricing or place an order.
| Berkeley New Replacement Jet Pumps Only |
|||||
 |
These pumps are new replacement pumps. These pumps are sold less nozzle assembly so that you can use your original nozzle. Each pump assembly includes all gaskets and seals so they're ready to install when you get yours.
|
||||
| Berkeley New Complete 12JE Pump With Trimmable Nozzle Assembly |
|||||
 |
Here is the complete new pump with a trimmable nozzle, nozzle control cable and a floor mount control. This pump comes complete with a hardware mounting kit.
|
||||
12JE Replacement Parts Breakdown:
| Sym. | Description | Qty. Req. | Part No. | Sym. | Description | Qty. Req. | Part No. |
| 1 | Reverse Bucket | 1 | 150-L04433 | 49 | Jam Nut | 1 | 150-S16347 |
| 2 | Nozzle | 1 | 150-L04405 | 50 | Flat Washer | 2 | 150-S27129 |
| 3 | Nozzle & Reverse Bucket Cap Screw | 4 | 150-S25959 | 51 | Hose Clamp | 2 | 150-S16416 |
| 4 | 5/16" Lock Washer | 22 | 150-S23088 | 52 | Machine Screw | 2 | 150-S25679 |
| 5 | Nyliner Bearing | 4 | 150-S14477 | 53 | Cavitation Plate | 1 | 150-S16567 |
| 6 | Nozzle & Reverse Bucket Shaft | 4 | 150-S10825 | 54 | Steering Adapter | 1 | 150-S16273 |
| 7 | Bowl End Cap | 1 | 150-S09850 | 55 | Reverse Cable Seal Housing | 1 | 150-S16255 |
| 8 | Bowl Bearing | 2 | 150-S14483 | 56 | Reverse Cable Seal Retainer | 1 | 150-S16256 |
| 9 | Pipe Plug | 2 | 150-S13883 | 57 | "O" Ring | 1 | 150-S14929 |
| 10 | Bowl Seal | 1 | 150-S14476 | 58 | Hose Clamp | 2 | 150-S16415 |
| 11 | Impeller Nut | 1 | 150-S12005 | 59 | Cable Bellows | 2 | 150-S16173 |
| 12 | Bowl | 1 | 150-H02484 | 60 | Machine Screw | 2 | 150-S25685 |
| 13 | Impeller Key | 1 | 150-S14482 | 61 | Cav. Plate Bracket | 1 | 150-M05840 |
| 14 | Aluminum Impeller | 1 | 150-L02507 | 62 | Steering Extension | 1 | 150-M05881 |
| Commercial Stainless Impeller | 150-L05021 | 63 | Flat Washer | 4 | 150-S23063 | ||
| 15 | Bowl Gasket | 1 | 150-S09017 | 64 | 3/8 Slotted Nut | 2 | 150-S32400 |
| 16 | Hex Cap Screw | 8 | 150-S23621 | 65 | Hex Cap Screw | 1 | 150-S32365 |
| 17 | Insulator | 1 | 150-S10068 | 66 | Hex Nut | 1 | 150-S23485 |
| 18 | Wear Ring | 1 | 150-S10125 | 67 | Shoulder Screw | 1 | 150-S17824 |
| 19 | Hand Hole Cover "O" Ring | 1 | 150-S13734 | 68 | Cotter Pin | 1 | 150-S26611 |
| 20 | Groove Pin | 2 | 150-S14479 | 69 | Clevis Pin | 1 | 150-S16350 |
| 21 | Rod End | 2 | 150-S10907 | 70 | Cable Clevis | 1 | 150-S17843 |
| 22 | Wing Nut | 2 | 150-S16117 | 71 | Tiller | 1 | 150-M05875 |
| 23 | Flat Washer | 24 | 150-S23062 | 72 | Hex Cap Screw | 2 | 150-S23538 |
| 24 | Hand Hole Cover | 1 | 150-M06098 | 73 | Jam Nut | 1 | 150-S15981 |
| 25 | Suction Piece | 1 | 150-H02715 | 74 | Swivel Pin Nyliner Bearing | 2 | 150-S13865 |
| 26 | Hex Cap Screw | 10 | 150-S23546 | 75 | Reverse Swivel Pin | 1 | 150-S16344 |
| 27 | Hex Nut | 17 | 150-S15981 | 76 | Cooling Water Pipe | 1 | 150-M05773 |
| 28 | Packing Rings | 4 | 150-S08287 | 77 | Water Pipe Retainer | 1 | 150-S15904 |
| 29 | Packing Gland | 1 | 150-S12727 | 78 | Machine Screw | 3 | 150-S24504 |
| 30 | Shaft Sleeve | 1 | 150-S14379 | 79 | "O" Ring | 1 | 150-S16022 |
| 31 | Grease Fitting | 1 | 150-S14480 | 80 | Back-up Plate Retainer | 1 | 150-S15905 |
| 32 | Suction Piece Seal | 1 | 150-S14380 | 81 | Hex Cap Screw | 2 | 150-S23574 |
| 33 | Bearing Cap Gasket | 1 | 150-S09018 | 82 | Hex Locking Nut | 2 | 150-S26573 |
| 34 | Hex Cap Screw | 4 | 150-S26151 | 83 | Hex Nut | 2 | 150-S23479 |
| 35 | Thrust Bearing | 1 | 150-S14063 | 84 | Cable Clamp | 1 | 150-S18429 |
| 36 | Bearing Cap Seal | 1 | 150-S14475 | 85 | Rd. Hd. Machine Screw | 2 | 150-S24472 |
| 37 | Snap Ring | 1 | 150-S14478 | 86 | #10 Lock Washer | 2 | 150-S23085 |
| 38 | Pump Shaft | 1 | 150-M05356 | 87 | Set Screw | 1 | 150-S23664 |
| 39 | Bearing Cap | 1 | 150-S15338 | 88 | Hex Cap Screw | 1 | 150-S32394 |
| 40 | Hex Cap Screw | 6 | 150-S23540 | 89 | Nozzle "O" Ring | 1 | 150-S17737 |
| 41 | Grate Retainer | 1 | 150-M05928 | 90 | Slotted Nut | 1 | 150-S32399 |
| 42 | Machine Screw | 4 | 150-S25669 | 91 | Plain Washer | 3 | 150-S23061 |
| 43 | Intake Grate | 1 | 150-L04411 | 92 | Cotter Pin | 1 | 150-S26612 |
| 44 | Hex Nut | 6 | 150-S23481 | 93 | Cotter Pin | 2 | 150-S26619 |
| 45 | 1/4 Lock Washer | 6 | 150-S23087 | 94 | Rudder Kit Plastic | 1 | 150-B-07486 |
| 46 | Flat Washer | 3 | 150-S16401 | Rudder Kit Aluminum | 1 | 150-B-06906 | |
| 47 | Rd. Hd. Machine Screw | 3 | 150-S24507 | 95 | Rudder Pin | 1 | 150-S16753 |
| 48 | Reverse Cable Seal Bearing |
2 | 150-S16254 | 96 | Grease Fitting Cap | 1 | 150-S16549 |
