600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Audio Warning System

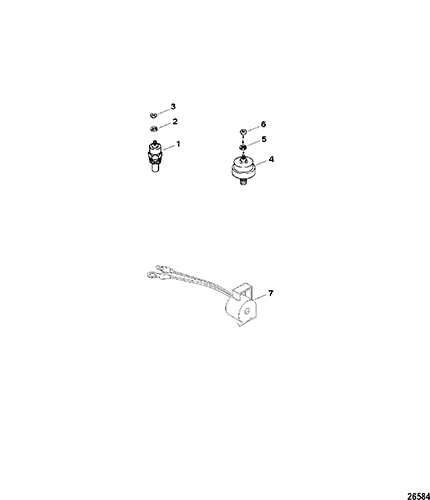

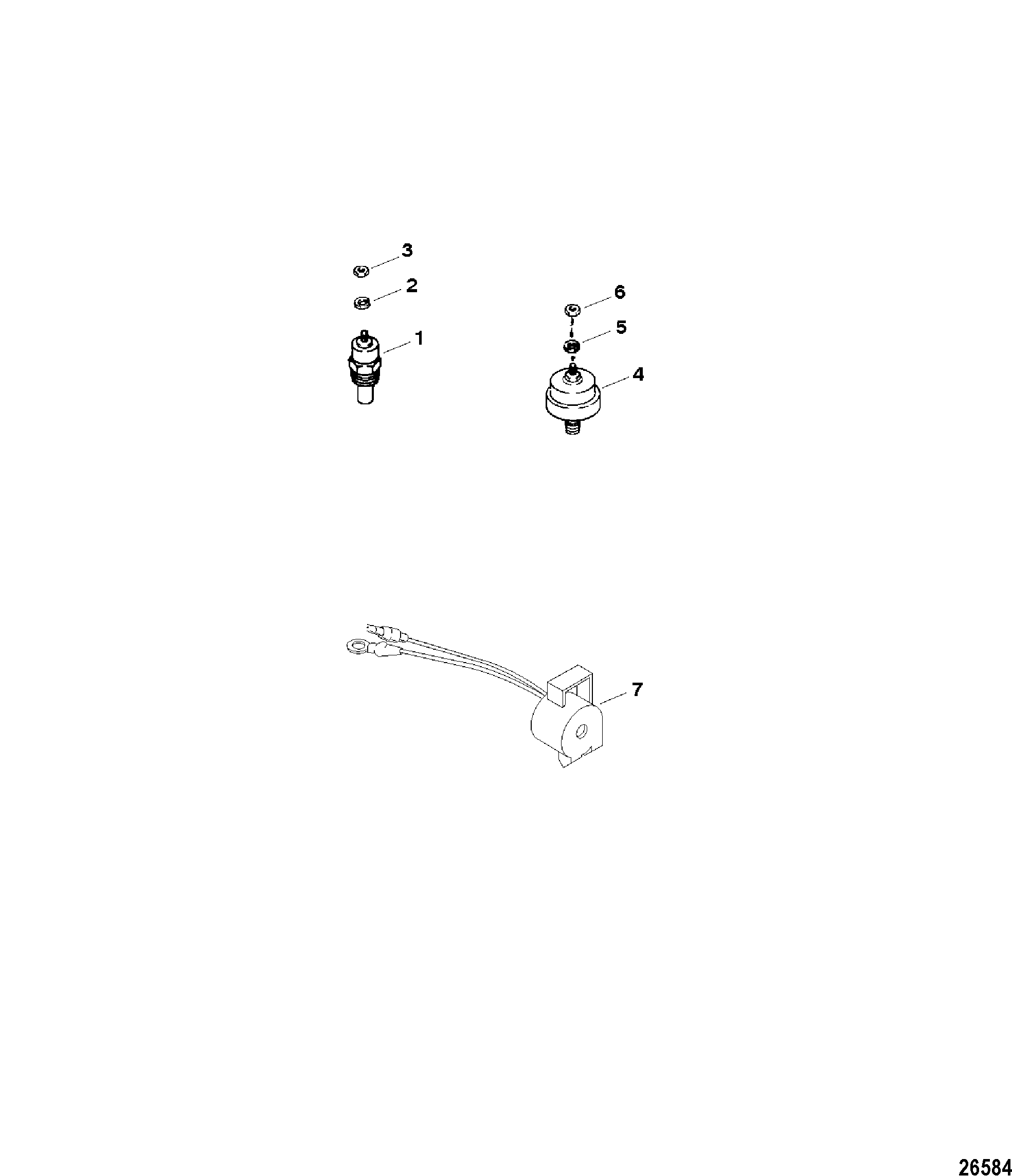

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft – Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-8M8021116)
- Supercharger
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | SWITCH ASSEMBLY, Water Temperature | 1 | ||||||
| 2 | 13-26996 | LOCKWASHER, (#10), Temperature Switch | 1 | ||||||
| 3 | 11-45076 | NUT, (#10-32), Temperature Switch | 1 | ||||||
| 4 | 87-805605A1 | SWITCH ASSEMBLY, Pressure | 1 | ||||||
| 5 | 11-68219 | NUT, (#10-32), Pressure Switch Terminal | 1 | ||||||
| 6 | 13-26996 | LOCKWASHER, (#10) | 1 | ||||||
| 7 | 816492A6 | ALARM KIT, Audio Warning | 1 |
