500 Bulldog - Serial 0K000248 Thru 0L001607 - Audio Warning System

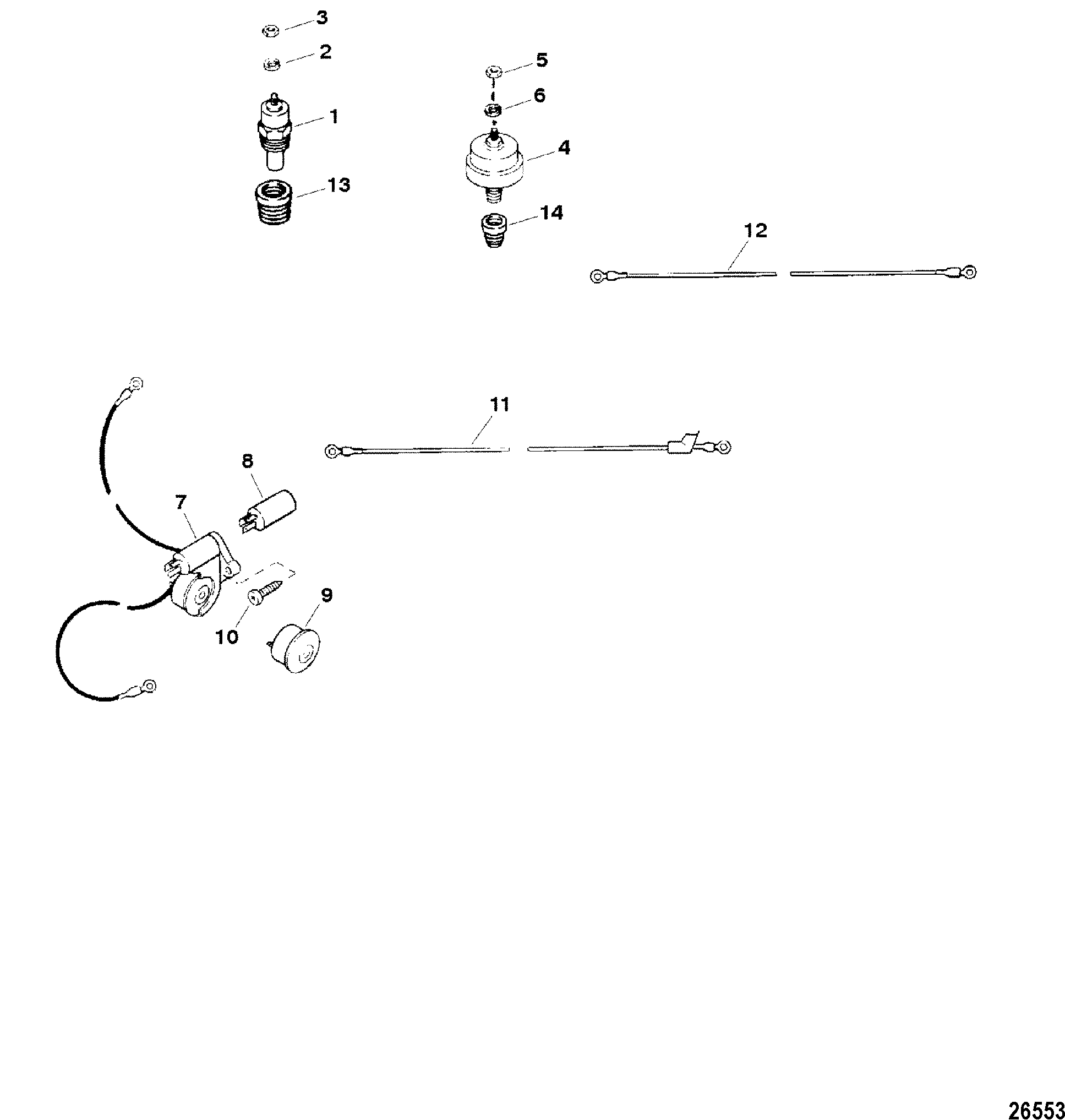

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo Models)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Elbow
- Flywheel Housing (Bravo Models)
- Flywheel Housing (Driveline Models)
- Intake Manifold And Front Cover
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler Assembly (Bravo Models)
- Oil Cooler Assembly (Driveline Models)
- Oil Filter And Oil Adaptor
- Oil Pump And Oil Pump
- Power-Assisted Steering Assembly
- Sea Water Pump Assembly
- Shift Bracket (Bravo Models)
- Starter And Alternator
- Starter Assembly (Bravo Models) (50-8M8021116)
- Starter Assembly (Driveline Models) (50-808011A1)
- Thermostat Housing And Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | SWITCH ASSEMBLY, Water Temperature - Intake Manifold | 1 | ||||||
| 2 | 13-26996 | LOCKWASHER, (#10) | 1 | ||||||
| 3 | 11-45076 | NUT, (#10-32) | 1 | ||||||
| 4 | 87-805605A1 | SWITCH ASSEMBLY, Engine Block Pressure | 1 | ||||||
| 5 | 11-68219 | NUT, (#10-32) | 1 | ||||||
| 6 | 13-26996 | LOCKWASHER, (#10) | 1 | ||||||
| 7 | 816492A14 | HOUSING KIT, Buzzer | 1 | 86047A11 | NOTE: With Two Ring Connectors Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 816492A14 | TIMER, Temperature Buzzer | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 9 | 68878A6 | HORN ASSEMBLY, Buzzer Alarm | 1 | ||||||
| 10 | 10-69013 | SCREW, (#10-16 x .880) | 2 | ||||||
| 11 | 84-86044A6 | CABLE ASSEMBLY (20.00 Feet) | 1 | This Part is No Longer Available - NOTE: Tan/Blue Wire - Two Rings | |||||
| 7 | 816492A14 | HOUSING KIT, Buzzer | 1 | 86047A16 | NOTE: With One Ring - One Spade Connector Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 816492A14 | TIMER, Temperature Buzzer | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 9 | 68878A6 | HORN ASSEMBLY, Buzzer Alarm | 1 | ||||||
| 11 | 84-86044A11 | CABLE ASSEMBLY, (20.00 Feet) Tan/Blue Wire With One Ring and One Spade | 1 | This Part is No Longer Available | |||||
| 12 | 84-86044A4 | CABLE ASSEMBLY (36.00 Inches) Tan/Blue Wire | 1 | This Part is No Longer Available | |||||
| 12 | 84-88032A6 | CABLE ASSEMBLY, Tan/Blue Wire - Harness To Sender | 1 | This Part is No Longer Available | |||||
| 13 | 23-848552 | BUSHING, Reducer - Intake Manifold | 1 | ||||||
| 14 | 22-64013 | FITTING, (.375 Male To .125 Female), Reducer - Engine Block | 1 |
