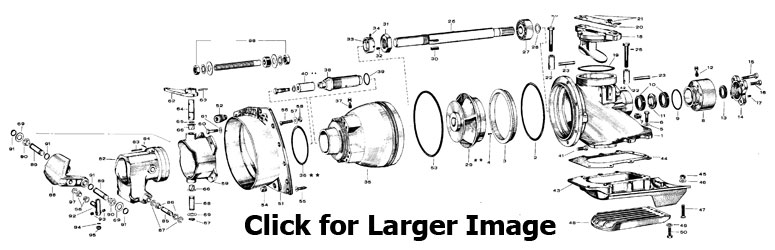

Jacuzzi 12WJ Marine Jet Drive
Click on the part number to check pricing or place an order.
| Sym. | Per Unit | Description | Part No. |
| 1 | 1 | Suction Piece No. 4779 | 160-04-2012-08 |
| 2 | 1 | Suction Piece O-ring | 160-47-0271-07 |
| 3 | 1 | Suction Piece Wear Ring | 160-08-2383-13 |
| 4 | 4 | Wear Ring Self-Tapping Screws | 160-14-1447-60 |
| 5 | 10 | Suction Piece Washers | 160-14-0740-41 |
| 6 | 10 | Suction Piece Cap Screws | 160-14-0731-00 |
| 7 | 1 | Suction Piece Pipe Plug | 160-31-0061-66 |
| 8 | 1 | Bearing Housing No. 3982 | 160-08-2047-11 |
| 9 | 1 | Bearing Housing O-ring | 160-47-0232-05 |
| 10 | 2 | Bearing Housing Lip Seals | 160-10-1274-13 |
| 11 | 1 | Lip Seal Back Up Plate | 160-10-1342-03 |
| 12 | 1 | Bearing Grease Fitting | 160-23-0562-03 |
| 13 | 1 | Bearing Cap Lip Seal | 160-10-1264-07 |
| 14 | 1 | Bearing Cap No. 4365 | 160-08-2205-27 |
| 15 | 4 | Bearing Housing Cap Screws | 160-14-1303-30 |
| 16 | 4 | Bearing Cap Screws | 160-14-0731-00 |
| 17 | 1 | Bearing Cap Pipe Plug | 160-31-0058-46 |
| 18 | 1 | Inspection Cap No. 4761 | 160-51-0104-03 |
| 19 | 1 | Inspection Cap O-Ring | 160-47-0258-04 |
| 20 | 1 | Inspection Cap Lock Wrench | 160-22-1810-02 |
| 21 | 2 | Wrench Nylatch Assembly | 160-23-1418-07 |
| 22 | 2 | Swivel Block | 160-51-0201-05 |
| 23 | 2 | Swivel Block Pin | 160-14-0802-04 |
| 25 | 2 | Hold Down Cap Screw | 160-14-0734-07 |
| 26 | 1 | Splined Impeller Shaft | 160-07-5271-04 |
| 27 | 1 | Thrust Bearing | 160-08-2202-04 |
| 28 | 1 | Bearing Retaining Ring | 160-14-0767-07 |
| 29 | 1 | Impeller 9-9/16" Dia. "A" Cut (Alum.) | 160-05-2528-04 |
| 29.1 | 1 | Impeller 9-3/8" Dia. "B" Cut (Alum.) | 160-05-2529-03 |
| 29.2 | 1 | Impeller 9-1/4" Dia. "C" Cut (Alum.) | 160-05-2530-00 |
| 29.3 | 1 | Impeller 9-1/8" Dia. "O" Cut (Alum.) | 160-05-2531-09 |
| 29.4 | 1 | Impeller 9" Dia. "B" Cut (Alum.) | 160-05-2532-08 |
| 30 | 1 | Impeller Key | 160-14-0614-02 |
| 31 | 1 | Impeller Nut | 160-14-0606-02 |
| 32 | 2 | Impeller Nut Set Screws | 160-14-0717-08 |
| 33 | 1 | Bowl Bearing Sand Cap | 160-08-2044-06 |
| 34 | 2 | Bowl Bearing Sand Cap Set Screw | 160-14-0724-09 |
| 35 | 1 | Bowl No. 4417 | 160-04-1548-03 |
| 36 | 1 | Bowl to Steering Housing O-ring | 160-47-0256-06 |
| 37 | 1 | Bowl Grease Fitting w/Cap | 160-23-0562-03 |
| 38 | 1 | Bowl Bearing No. 3980 | 160-08-2043-15 |
| 39 | 1 | Bowl Bearing O-ring | 160-47-0032-07 |
| 40 | 1 | Hi-Flow Nozzle Plug Assembly | 160-50-0056-02 |
| 41 | 8 | Bowl Cap Screws | 160-14-0731-00 |
| 43 | 1 | Contour Grill Housing No. 4920 | 160-51-0175-07 |
| 43.1 | 1 | Flat Grill Housing No. 4418 | 160-51-0171-19 |
| 43.2 | 1 | Vee Grill Housing No. 4418 | 160-51-0175-07 |
| 44 | 1 | Suction Piece Bottom Gasket | 160-13-0854-72 |
| 45 | 14 | Grill Housing Nut | 160-14-0726-07 |
| 46 | 14 | Grill Housing Washer | 160-14-0756-00 |
| 47 | 14 | Grill Housing Machine Screws | 160-14-1713-00 |
| 48 | 1 | Grill Insert Standard No. 4419 | 160-51-0102-05 |
| 48.1 | 1 | Grill Insert Contour No. 5523 | 160-51-0273-08 |
| 49 | 2 | Grill Insert Lock Washers | 160-14-0745-04 |
| 50 | 2 | Grill Insert Cap Screws | 160-14-0743-06 |
| 51 | 1 | Transom Adapter No. 4889 9° to 18° | 160-52-0262-00 |
| 51.1 | 1 | Transom Adapter No. 4331 2° to 9° | 160-52-0262-00 |
| 52 | 1 | Cable Gland Assembly 1/2" NPT | 160-23-1408-09 |
| 53 | 1 | Transom Adapter O-ring | 160-47-0451-09 |
| 54 | 1 | Transom Adapter Drain Plug | 160-31-0061-66 |
| 55 | 2 | Transom Adapter Wood Screws | 160-23-0572-01 |
| 56 | 10 | Transom Adapter Cap Screw | 160-14-1713-00 |
| 57 | 10 | Transom Adapter Washer | 160-14-0756-00 |
| 58 | 10 | Transom Adapter Nut | 160-14-0726-07 |
| 59 | 1 | Steering Housing No. 4766 | 160-52-0248-09 |
| 60 | 4 | Steering Housing Cap Screws | 160-14-0731-00 |
| 61 | 4 | Steering Housing Washers | 160-14-0740-41 |
| 62 | 1 | Tiller Arm No. 4764 | 160-52-0249-24 |
| 63 | 1 | Tiller Arm Groove Pin | 160-14-1573-09 |
| 64 | 1 | Deflector Top Pivot Pin | 160-52-0238-01 |
| 65 | 1 | Top Pivot Pin O-ring | 160-47-0114-08 |
| 66 | 2 | Deflector Pivot Bearing | 160-08-2196-02 |
| 67 | 1 | Pivot Pin Retaining Rings | 160-14-1918-03 |
| 68 | 1 | Deflector Bottom Pivot Pin | 160-52-0359-04 |
| 69 | 12 | Spacer Washers for Pivot Pins | 160-52-0078-04 |
| 82 | 1 | Deflector No. 4414 | 160-52-0241-06 |
| 83 | 1 | Top Pivot Pin Groove Pin | 160-14-0804-02 |
| 84 | 1 | Groove Pin Spring Pin | 160-14-1521-02 |
| 85 | 1 | Cable Pivot Pin | 160-52-0239-00 |
| 86 | 2 | Cable Pivot Pin Bearings | 160-08-2195-11 |
| 87 | 2 | Cable Pivot Pin Retainer | 160-14-0775-07 |
| 88 | 1 | Reverse Gate No. 4415 | 160-52-0242-05 |
| 89 | 2 | Reverse Gate Pivot Pin | 160-52-0237-02 |
| 90 | 2 | Reverse Gate Pivot Bearings | 160-08-2196-02 |
| 91 | 4 | Pivot Pin Retaining Rings | 160-14-0774-08 |
| 92 | 1 | Shift Cable Pivot Bracket No. 4751 | 160-52-0244-03 |
| 93 | 2 | Cable Pivot Bracket Set Screws | 160-14-0052-19 |
| 94 | 1 | Cable Pivot Bracket O-ring | 160-47-0008-07 |
| 95 | 1 | Cable Lock Nut | 160-14-0797-01 |
| 96 | 2 | Cable Pivot Bracket Bearings | 160-08-2195-11 |
| 97 | 1 | Cable Pivot Bracket Retainer | 160-14-0775-07 |
| 98 | 1 | Steering Tube for Rideguide, Morse & Teleflex | 160-51-0431-07 |
| 110 | Opt. | Safety Tilt Rudder - No Longer Available | 160-52-0233-06 |
| 111 | Opt. | Rudder Sheer Pin (Pkg. of 5) | 160-52-0259-05 |
