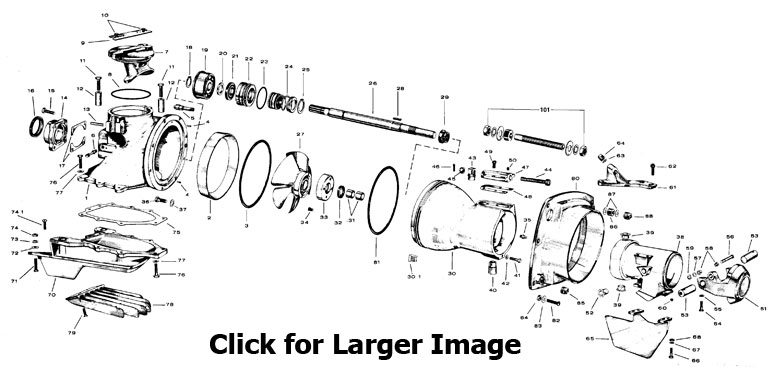

Jacuzzi 12YJ Marine Jet
Click on the part number to check pricing or place an order.
| Sym. | Per Unit | Description | Part No. |
| 1 | 1 | Suction Piece No. 4990 | 160-04-1857-08 |
| 2 | 1 | Wear Plate No. 5533 | 160-08-2243-13 |
| 3 | 1 | Wear Plate O-ring | 160-47-0178-01 |
| 4 | 2 | Wear Plate Dowel Pin | 160-14-1773-07 |
| 5 | 1 | Auxiliary Water Outlet Plug Assembly | 160-23-1558-07 |
| 6 | 1 | Thrust Bearing Grease Fitting | 160-23-0562-03 |
| 7 | 1 | Inspection Cap No. 4993 | 160-51-0184-06 |
| 8 | 1 | Inspection Cap O-ring | 160-47-0258-04 |
| 9 | 1 | Inspection Cap Lock Wrench | 160-22-1810-02 |
| 10 | 2 | Lock Wrench Nylatch Assembly | 160-23-1418-07 |
| 11 | 2 | Hold Down Bolt | 160-14-0734-07 |
| 12 | 2 | Inspection Cap Swivel Block | 160-51-0201-05 |
| 13 | 2 | Swivel Block Spring Pin | 160-14-0802-04 |
| 14 | 1 | Bearing Cap No. 4910 | 160-08-2399-07 |
| 15 | 4 | Bearing Cap Bolts | 160-14-1295-14 |
| 16 | 1 | Bearing Cap Lip Seal | 160-10-1320-09 |
| 17 | Opt. | Impeller Adjustment Shims Effective .010 Movement | 160-14-0829-70 |
| 17.1 | Opt. | Impeller Adjustment Shims Effective .005 Movement | 160-14-1903-70 |
| 18 | 1 | Thrust Bearing Retaining Ring | 160-14-0767-07 |
| 19 | 1 | Thrust Bearing | 160-08-2202-12 |
| 20 | 1 | Thrust Bearing Washer | 160-14-1762-00 |
| 21 | 1 | Seal Housing Lip Seal | 160-10-1345-00 |
| 22 | 1 | Seal Housing | 160-10-1042-06 |
| 23 | 2 | Seal Housing O-ring | 160-47-0232-05 |
| 24 | 1 | Mechanical Seal | 160-10-1043-05 |
| 25 | 1 | Mechanical Seal Retaining Ring | 160-14-0801-05 |
| 26 | 1 | Impeller Shaft | 160-07-5756-08 |
| 27.1 | 1 | Impeller "B" Cut No. 4906 | 160-05-3224-09 |
| 27.2 | 1 | Impeller "C" Cut No. 4906 | 160-05-3225-08 |
| 27.3 | 1 | Impeller "D" Cut No. 4906 | 160-05-3226-07 |
| 27.4 | 1 | Impeller "E" Cut No. 4906 | 160-05-3227-06 |
| 27.5 | 1 | Impeller "F" Cut No. 4906 | 160-05-3228-05 |
| 27.6 | 1 | Impeller "G" Cut No. 4906 | 160-05-3229-04 |
| 27.7 | 1 | Impeller "H" Cut No. 4906 | 160-05-3230-01 |
| 27.8 | 1 | Impeller "I" Cut No. 5617 | 160-05-3231-00 |
| 27.9 | 1 | Impeller "J" Cut No. 5617 | 160-05-3232-09 |
| 27.10 | 1 | Impeller "K" Cut No 5617 | 160-05-3346-02 |
| 28 | 1 | Impeller Key | 160-23-1403-04 |
| 29 | 1 | Impeller Nut | 160-23-1491-07 |
| 30 | 1 | Bowl No. 4905 | 160-04-1856-09 |
| 30.1 | 2 | Water Strainer | 160-22-1884-03 |
| 31 | 2 | Bowl Bearing | 160-23-1423-00 |
| 32 | 1 | Bowl Bearing Lip Seal | 160-10-1260-19 |
| 33 | 1 | Bowl Wear Ring | 160-08-2244-04 |
| 33.1 | 1 | Cooling Outlet Plug | 160-31-0557-00 |
| 34 | 4 | Bowl Wear Ring Bolts | 160-14-1490-17 |
| 35 | 1 | Bowl Grease Fitting | 160-23-0560-13 |
| 36 | 8 | Bowl Bolts | 160-14-0731-00 |
| 37 | 8 | Lock Washer | 160-14-0722-01 |
| 38 | 1 | Deflector No. 4997 | 160-52-7014-12 |
| 39 | 2 | Deflector Nyliner Bearings | 160-08-2245-03 |
| 40 | 1 | Deflector Bottom Pivot Pin | 160-51-0203-03 |
| 41 | 1 | Bottom Pivot Pin Retaining Bolt | 160-14-1269-16 |
| 42 | 1 | Lock Tab | 160-14-1895-00 |
| 43 | 1 | Deflector Trim Pivot Assembly | 160-51-0205-01 |
| 44 | 1 | Trim Screw | 160-14-0809-07 |
| 45 | 1 | Trim Screw Nut | 160-14-0803-03 |
| 46 | 1 | Trim Screw Nut Cotter Pin | 160-14-0712-03 |
| 47 | 1 | Trim Cap No. 5426 | 160-51-0208-08 |
| 48 | 1 | Trim Cap Gasket | 160-13-0370-07 |
| 49 | 6 | Trim Cap Bolts | 160-14-1772-08 |
| 50 | 1 | Trim Set Screw | 160-14-0717-08 |
| 51 | 1 | Reverse Gate (Pull to open) 5509 | 160-52-0313-09 |
| 52 | 2 | Reverse Gate Nyliner Berarings | 160-08-2196-02 |
| 53 | 2 | Reverse Gate Pivot Pin | 160-52-0280-08 |
| 54 | 2 | Pivot Pin Retaining Bolts | 160-14-1268-09 |
| 55 | 2 | Lock Tab | 160-14-1895-00 |
| 56 | 1 | Reverse Gate Cable Pin | 160-52-0293-03 |
| 57 | 1 | Cable Pin Flat Washer | 160-23-1503-03 |
| 58 | 2 | Cable Pin Nyliner Bearing | 160-08-2298-09 |
| 59 | 1 | Cable Pin Retaining Ring | 160-14-1504-11 |
| 60 | 1 | Cable Lock Nut | 160-14-0797-01 |
| 61 | 1 | Tiller Arm (Pull to open) No. 5573 | 160-52-0310-02 |
| 62 | 2 | Tiller Arm Bolts | 160-14-0737-12 |
| 63 | 1 | Cable Retainer C-Washer | 160-23-1502-04 |
| 64 | 1 | Cable Retainer Plug | 160-22-1995-09 |
| 65 | 1 | Rudder No. 4975 | 160-52-0290-06 |
| 66 | 4 | Rudder Bolts | 160-14-1268-09 |
| 67 | 4 | Lock Washer | 160-14-0721-02 |
| 68 | 4 | Nut | 160-14-0725-08 |
| 69 | Bottom Pivot Washer | 160-14-1856-07 | |
| 70 | 1 | Grill Housing Contour No. 4992 | 160-51-0182-08 |
| 70.1 | 1 | Grill Housing Flat No. 4991 | 160-51-0185-05 |
| 70.2 | 1 | Grill Housing Deep Vee No.5525 | 160-51-0289-00 |
| 71 | 8 | Grill Housing Machine Screws | 160-14-1713-00 |
| 72 | 8 | Flat Washers | 160-14-0756-00 |
| 73 | 8 | Lock Washers | 160-14-1416-18 |
| 74 | 8 | Nut | 160-14-0726-07 |
| 74.1 | 4 | Grill Housing Leveling Screws | 160-14-1399-50 |
| 75 | 1 | Suction Piece Gasket | 160-13-0884-06 |
| 76 | 10 | Suction Piece Bolts | 160-14-0731-00 |
| 77 | 10 | Lock Washer | 160-14-0722-01 |
| 78 | 1 | Grill Insert Standard No. 5452 | 160-51-0250-05 |
| 78.1 | 1 | Grill Insert Deep Vee No. 5638 | 160-51-0290-07 |
| 79 | 4 | Grill Insert Machine Screw | 160-51-0290-07 |
| 80 | 1 | Transom Adapter 120 No. 4995 | 160-52-0275-05 |
| 80.1 | 1 | Transom Adapter 20 No. 4995 | 160-52-0287-01 |
| 81 | 1 | Transom Adapter O-ring | 160-47-0451-09 |
| 82 | 6 | Transom Adapter Machine Screws | 160-14-1844-02 |
| 83 | 6 | Flat Washer | 160-14-0756-00 |
| 84 | 6 | Nut | 160-14-0726-07 |
| 85 | 1 | Drain Plug 1/2" NPT | 160-31-0061-82 |
| 86 | 1 | Cable Sealing Gland | 160-23-1504-02 |
| 87 | 2 | Flat Washer | 160-23-1503-03 |
| 88 | 1 | Cable Lock Plug | 160-22-1995-09 |
| 101 | 1 | Steering Tube | 160-51-0431-07 |
