Water Pump Repair Kit

Key Features:

• Meets or Exceeds OEM Specifications
• Direct Fit Replacement for OEM Water Pump Kit
• Same as 18-3471 but without housing

Additional Details:

• Fits: Late Model Four-Stroke 225-350 HP Yamaha Engines

Interchanges/Replaces

Yamaha Outboard

• 6CE-W0078-00-00
• 6CE-W0078-01-00

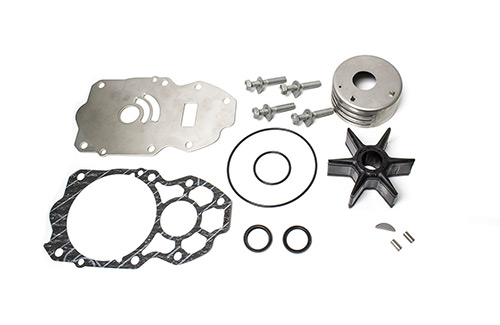

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-3459	Yamaha Outboard 6CE-44323-01-00 Yamaha Sterndrive 6CE-44323-00-00	1	Outer Wear Plate		N/A
18-3458	Yamaha Outboard 6CE-44315-00-00	1	Water Pump Gasket		N/A
18-3457	Yamaha Outboard 6AW-44322-00-00	1	Impeller Cup Insert		N/A
18-45617-1	Mallory 9-45617 Yamaha Outboard 6CE-44352-00-00	1	Impeller		N/A
18-7471	Yamaha Outboard 93210-94003-00	1	Outer O-Ring		N/A
18-3302	Yamaha Outboard 90280-04M05-00	1	Impeller Key		N/A
18-0256	Yamaha Outboard 91290-08045-00 97095-08045-00 97290-08045-00 97370-08045-00 97395-08045-00	4	Bolt		N/A
18-2091	Yamaha Outboard 93104-22M07-00	2	Oil Seal		N/A
18-7483	Yamaha Outboard 93210-37160-00 93210-37M67-00	1	O-Ring		N/A
NSS	Yamaha Outboard 90209-08M02-00	4	Washer, Bolt	No Image	N/A
NSS	Yamaha Outboard 93606-12019-00	2	Pin, Dowell	No Image	N/A
