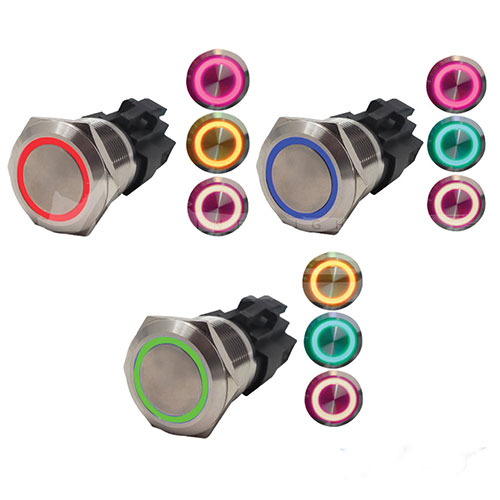

Marine Push Button Switch - Dual Color - 10A - Stainless Steel

FEATURES:

• Rated for 10A
• Stainless Steel Housing - No Rust
• Simply wire according to the instructions for your choice of color options for both when latched and unlatched. Example: Blue turns to Teal (or pink) when pressed.
• 22mm (7/8") Diameter Button - Easier to Push Compared to 19mm
• 25mm (1") Outside Diameter
• Works on 12V or 24V Systems
• LED Backlit Ring in your Choice of Colors
• IP67 Rated - Waterproof
• Silky Smooth Movement
• Rated for 150,000 Cycles (Presses)
• Removable Clip for Wiring Harness
• 3ft of 14AWG Wiring for a Simple Installation
• Mounts in panels up to 3/8" thick
• Fits a 7/8" Hole
• Plash Limited Lifetime Warranty

WIRING:

• BROWN 14 AWG wire = Positive V+ Out to Load
• RED 14 AWG wire = Positive V+ From Fuse Panel
• BLACK 18 AWG wire =  Ground
• BLUE 18 AWG wire = Positive V+
• RED 18 AWG wire = Postive V+
• GREEN18 AWG wire = Positive V+

 There are many options when it comes to wiring configuration such as do you want the LED ring to be on all the time, only when the navigation lights are on, or only when the switch is pressed?  Depending on how you wire the switch, and the orientation of the switch, you can decide which function suits you best.
