Dual Cable Rotary Steering System

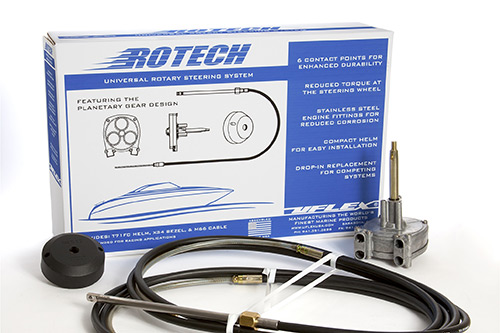

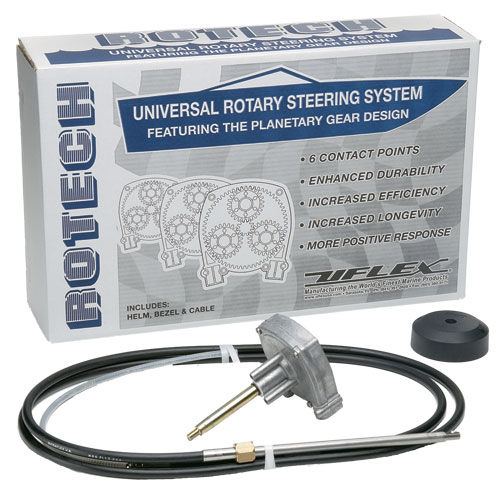

Uflex Dual Cable Rotary Steering System Packaged in a Box

A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable. The cable is available in 1-ft increments from 8 to 20 feet (specify cable length when ordering). Featuring the T71FC helm with a Planetary Gear Design, the Rotech reduces steering effort and delivers more balanced loads on the steering wheel. This unique design also offers a wider wear area which reduces lost motion and improves durability. Centered on the main drive shaft, this helm requires less room behind the dash and is a direct “drop in” replacement for competing system; requiring no new holes for installation. The Rotech package also includes the M66 universal Rotary Steering Cable with stainless steel output fittings for maximum longevity and smooth steering. Click here for how to measure for replacement cable.

This kit includes:

• T72FC - helm
• X34 - 90° bezel (diameter is 5 1/8")
• M66 -  2 steering cables

Features and Technical Specifications:

• Cable Entry can be set from either Port or Starboard sides
• Fast connect, simple installation
• All stainless steel cable output ends
• Corrosion resistant materials
• Particularly suitable where clearance is limited
• Optional 90° or 20° installation
• Standard 3/4” tapered shaft
• Lock-to-lock steering wheel turns: approx. 3,8
• Stroke: 9” (228 mm)
• Maximum allowable steering wheel diameter: 16” (406 mm)
• Minimum steering cable bend radius: 7.9” (200 mm)
• Minimal feedback
• Compact for mounting
• T71FC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat.
• For boats faster than 50 mph the twin cable steering system T72FC is recommended
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
