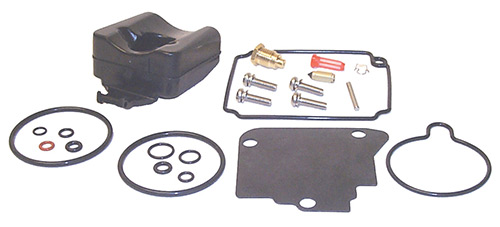

Carburetor Kit

Additional Details:

• For: Mercury 75/90 4-Stroke (2000 & Up)

Interchanges/Replaces

Mallory

• 9-37512

Mercury Marine

• 804346T02
• 804346T1

Yamaha Outboard

• 67F-W0093-00-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-7056	Mercury Marine 17050M 804186 Yamaha Outboard 67F-1439A-00-00 6H2-14591-00-00 6H2-14590-00-00 6H2-14590-01-00	1	Needle Valve		N/A
18-79972	Mercury Marine 804195 Yamaha Outboard 67F-14371-00-00 67F-14371-01-00	1	Fuel Filter (Carb Inlet)		N/A
NSS	Yamaha Outboard 67F-14147-00-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 97980-04114-00	4	Screw, with Washer	No Image	N/A
NSS	Yamaha Outboard 67F-14397-00-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 67F-14984-00-00	1	Gasket, Float Chamber	No Image	N/A
NSS	Yamaha Outboard 93210-04230-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 6H2-14985-01-00	1	Float	No Image	N/A
NSS	Yamaha Outboard 663-14159-00-00	1	Clip	No Image	N/A
NSS	Yamaha Outboard 6H2-14548-00-00	1	Pin, Float Arm	No Image	N/A
NSS	Yamaha Outboard 93210-04228-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 67F-14398-00-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 67F-14398-10-00	2	O-Ring	No Image	N/A
NSS	Yamaha Outboard 67F-14398-20-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 67F-14239-00-00	1	Seal	No Image	N/A
NSS	Yamaha Outboard 93210-40M10-00	2	O-Ring	No Image	N/A
NSS	Yamaha Outboard 67F-14398-30-00	1	O-Ring	No Image	N/A
