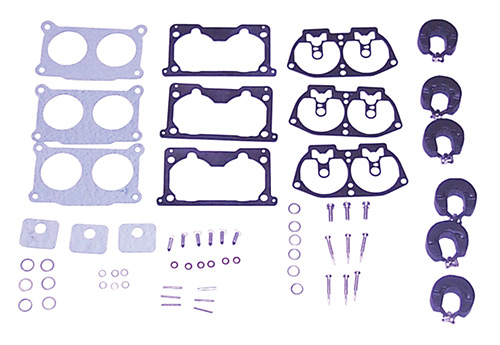

Carburetor Kit

Interchanges/Replaces

Mallory

• 9-37516

Yamaha Outboard

• 6K7-W0093-00-00
• 6K7-W0093-01-00
• 6K7-W0093-02-00
• 6K7-W0093-08-00
• 6K7-W0093-09-00
• 6R3-W0093-00-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0785	Mallory 9-60395 Yamaha Outboard 6E5-14198-00-00 6E5-14198-A1-00 6E5-14198-A2-00	3	Carburetor Mounting Gasket		N/A
18-7055	Yamaha Outboard 6E5-14546-00-00 6J8-14546-00-00	6	Needle Valve		N/A
18-7069	Yamaha Outboard 6E5-14385-02-00	6	Float		N/A
18-2592	Yamaha Outboard 6E5-14384-03-00	3	Float Bowl Gasket		N/A
NSS	Yamaha Outboard 6K7-14483-00-00	3	Gasket	No Image	N/A
NSS	Yamaha Outboard 6E5-14386-02-00	6	Pin, Float	No Image	N/A
NSS	Yamaha Outboard 6E5-14997-00-00	6	O-Ring	No Image	N/A
NSS	Yamaha Outboard 6E5-14398-01-00	6	Gasket	No Image	N/A
NSS	Yamaha Outboard 98580-05016-00	3	Screw, Panhead	No Image	N/A
NSS	Yamaha Outboard 92990-05100-00	3	Washer, Spring	No Image	N/A
NSS	Yamaha Outboard 6E5-14323-03-00	6	Screw, Air Adjusting	No Image	N/A
NSS	Yamaha Outboard 6E5-14979-00-00	6	Gasket	No Image	N/A
NSS	Yamaha Outboard 6J8-14995-00-00	6	Gasket	No Image	N/A
NSS	Yamaha Outboard 6E5-14959-01-00	3	Gasket	No Image	N/A
