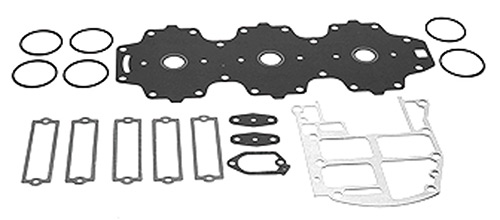

Powerhead Gasket Set

Interchanges/Replaces

Mallory

• 9-64410

Yamaha Outboard

• 61A-W0001-00-00
• 61A-W0001-01-00
• 61A-W0001-A1-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-3891	Mallory 9-63950 Yamaha Outboard 61A-11181-00-00 61A-11181-A0-00 61A-11181-A1-00 61A-11181-A2-00 69L-11181-00-00 69L-11181-01-00	2	Head Gasket		N/A
18-0829	Mallory 9-60510 Yamaha Outboard 61A-12414-A0-00 6H2-12414-00-00 6H2-12414-A0-00 6J8-12414-A0-00	2	Cover Gasket		N/A
18-0808	Yamaha Outboard 6G5-11382-00-00 6G5-11382-A1-00	1	Pressure Control Valve Gasket		N/A
18-99052	Yamaha Outboard 61A-11381-00-00 61A-11381-A0-00	1	Side Cover Gasket		N/A
18-99051	Yamaha Outboard 61A-11193-00-00 61A-11193-A0-00 61A-11193-A1-00 61A-11193-A2-00	2	Valve Cover Gasket		N/A
18-99054	Yamaha Outboard 61A-13645-00-00	2	Intake Gasket		N/A
18-99053	Yamaha Outboard 61A-13621-00-00 61A-13621-A0-00	6	Intake Gasket		N/A
18-99056	Yamaha Outboard 61A-45113-00-00 61A-45113-A0-00	1	Base Gasket		N/A
18-99055	Yamaha Outboard 61A-13646-00-00	2	Manifold Gasket		N/A
18-0849	Mallory 9-35345 Yamaha Outboard 650-24431-00-00 650-24431-A0-00	3	Fuel Pump Mounting Gasket		N/A
18-2091	Yamaha Outboard 93104-22M07-00	1	Oil Seal		N/A
18-2087	Yamaha Outboard 93102-40004-00 93102-40M36-00	1	Oil Seal		N/A
NSS	Yamaha Outboard 93210-81MA6-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 93102-40M38-00	1	Oil Seal	No Image	N/A
NSS	Yamaha Outboard 93210-54M54-00	2	O-Ring	No Image	N/A
NSS	Yamaha Outboard 61A-41112-A0-00	1	Gasket, Exhaust Inner Cover	No Image	N/A
18-76690	Mallory 9-76690 Yamaha Outboard 93210-46M16-00	6	O-Ring		N/A
