Bennett actuators are strong but flexible nylon/fiberglass hydraulic cylinders. The piston-like arms push tabs into position. Fluid flows through a concealed hole in the upper hinge at the top of the actuator - thus eliminating external hoses subject to damage. All models provide a 2-1/2" stroke. Replacement actuators do not include hardware. Hardware kit H1170A is recommended when replacing an actuator assembly.

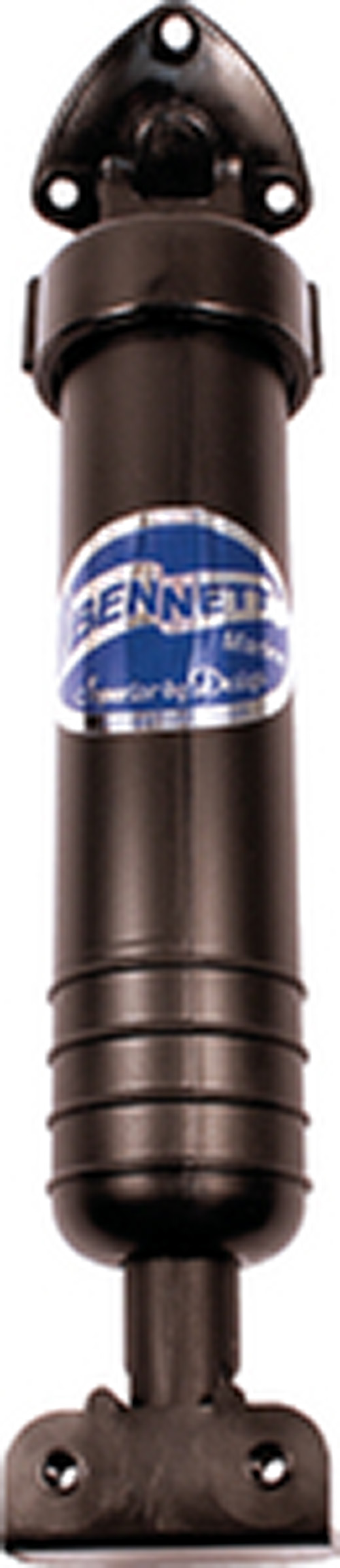

Description: Actuator Assembly - Small Version (11-3/4")
A1200S designed for installations where space is limited
