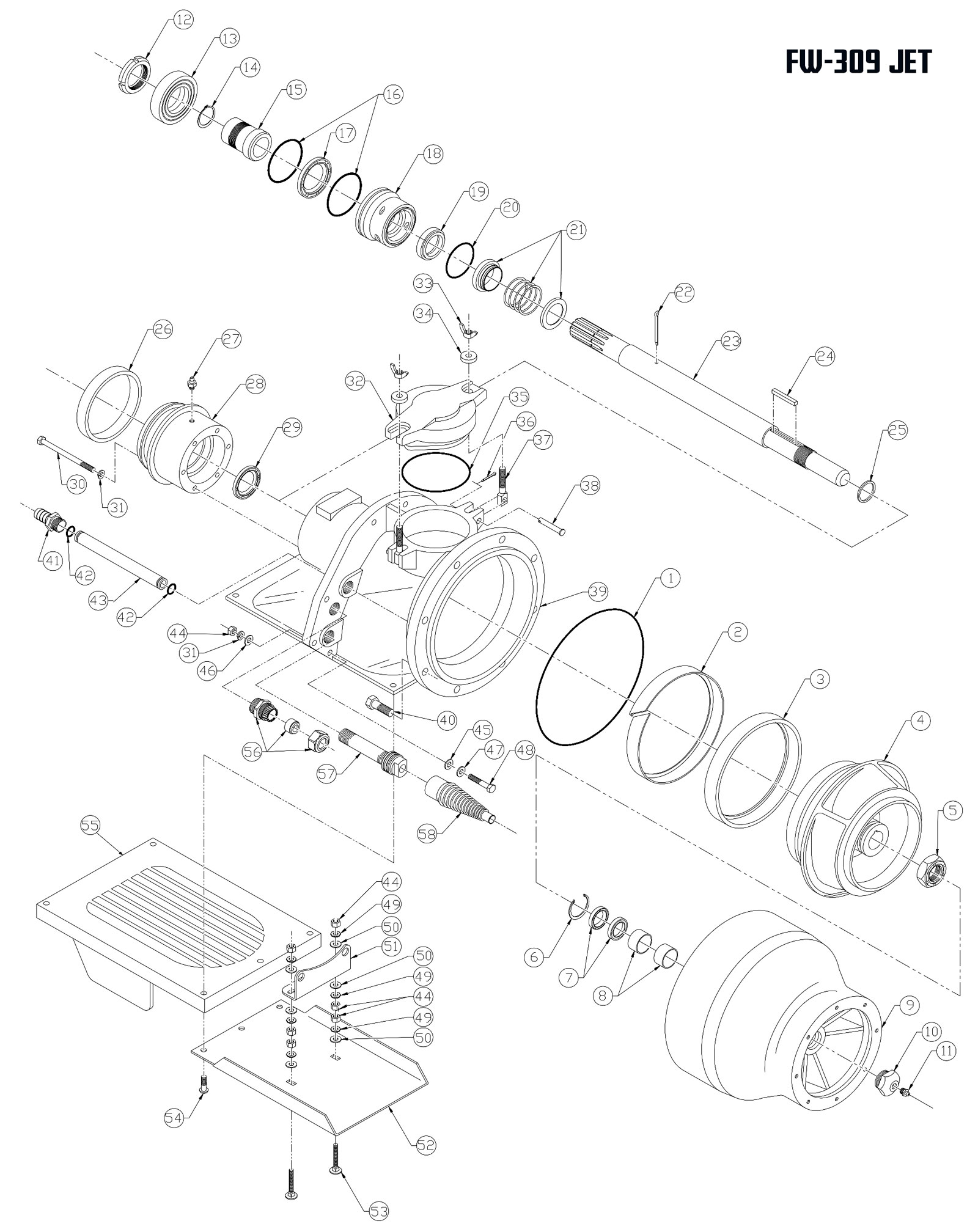

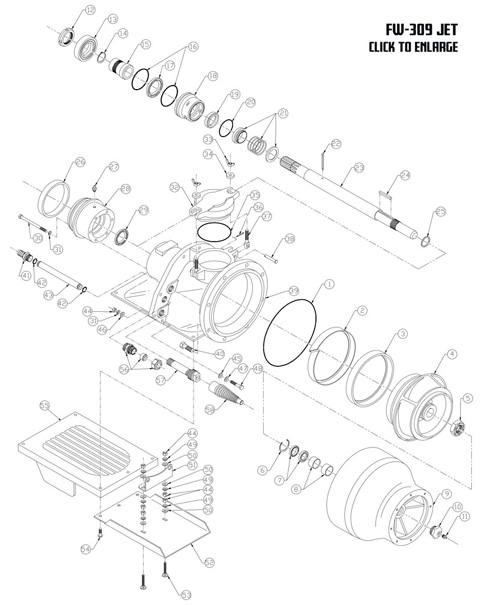

American Turbine Model FW-309 Jet



Model FW-309 JET

SYM.
DESCRIPTION
QTY.
PART NO.
1
BOWL O-RING
1
152-O3101
2
WEAR RING LINER
1
152-WR6004
3
WEAR RING
1
152-WR5000
4
IMPELLER
1
152-IMA***
5
IMPELLER NUT
1
152-SH3507
6
BOWL SNAP RING
1
152-SC9201
7
BOWL SEALS
2
152-SL2003
8
BOWL BEARINGS
2
152-B1502
9
BOWL
1
152-SCA9301
10
BOWL PLUG
1
152-SCA9001
11
GREASE ZERT
1
152-SC8901
12
BEARING SLEEVE NUT
1
152-SH5101
13
BEARING
1
152-B1101
14
SNAP RING
1
152-SH1507
15
BEARING SLEEVE
1
152-SH5001
16
O-RING BEARING HOUSING
2
152-O3301
17
SEAL FACE HOUSING SEAL
1
152-SL1201
18
SEAL FACE HOUSING
1
152-SH5201
19
CERAMIC SEAL
1
152-SL4008
20
O-RING SEAL FACE HOUSING
1
152-O3401
21
MECHANICAL SEAL
1
152-SL4008
22
COTTER PIN, 5/32 X 2
1
152-F03 16 CP
23
SD SHAFT
1
152-SH1207
24
IMPELLER KEY
1
152-SH3007
25
SHIM KIT
1
152-SHK4007
26
ENGINE MOUNT RING
1
152-SC4007
27
GREASE ZERT
1
152-SC8901
28
BEARING HOUSING
1
152-SC2101
29
BEARING HOUSING SEAL
1
152-SL1101
30
HHCS, 5/16-18 X 4-1/2
6
152-F05 18 36 HH
31
LOCKWASHER, 5/16
16
152-F05 LW
32
HAND HOLE COVER
1
152-SC1701
33
WING NUT, 3/8-16
2
152-F06 16 WN
34
THICK WASHER, 3/8
2
152-F06 TW
35
HAND HOLE COVER O-RING
1
152-O1002
36
COTTER PIN, 1/8 X 1/2
2
152-F02 04 CP
37
EYE BOLT, 3/8-16
2
152-F06 16 EB
38
CLEVIS PIN, 5/16
2
152-F05 CL
39
SUCTION PIECE
1
152-SC1201
40
HHCS, 1/2-13 1-1/2
8
152-F08 13 12 HH
41
BARBED CONNECTOR, 3/4
1
152-SC4601
42
COOLING TUBE ORING
2
152-O3201
43
WATER TUBE
1
152-SC4501
44
HEX NUT, 5/16-18
16
152-F05 18 HN
45
BOLT INSULATOR, 5/16
10
152-F05 BI
46
NEOBOND WASHER, 5/16
10
152-F05 NW
47
AN WASHER, 5/16
10
152-F05 AN
48
HHCS, 5/16-18 X 1-1/2
10
152-F05 18 12 HH
49
STAR WASHER, 5/16
6
152-F05 SW
50
FLAT WASHER, 5/16
6
152-F05 FW
51
RIDEPLATE BRACKET
1
152-I7201
52
RIDEPLATE
1
152-I6701
53
CARRIAGE BOLT, 5/16-18 X 2
2
152-F05 18 16 CB
54
BUTTON SOCKET HEAD, 5/16-18 X 1-3/4
3
152-F05 18 14 BH
55
INTAKE GRATE
1
152-I8001
56
REVERSE CABLE PACKER, 1/2 NPT
1
152-T2201
57
STEERING CABLE ADAPTER
1
152-R5401
58
RUBBER BELLOWS
1
152-M4007
