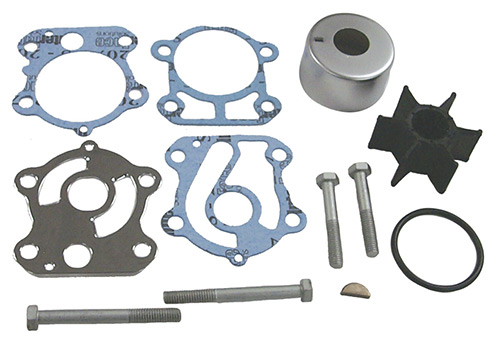

Water Pump Kit

Key Features:

• Same as 18-3371 but does not contain water pump housing

Interchanges/Replaces

Mallory

• 9-48602
• 9-48606

Yamaha Outboard

• 692-W0078-00-00
• 692-W0078-01-00
• 692-W0078-02-00
• 692-W0078-A0-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0239	Mallory 9-60378 Yamaha Outboard 688-44315-00-00 688-44315-A0-00	1	Water Pump Gasket		N/A
18-0240	Mallory 9-60382 Yamaha Outboard 688-44316-01-00 688-44316-A0-00	1	Water Pump Gasket		N/A
18-3070	GLM 89920 Mallory 9-45603 9-45603-10 Yamaha Outboard 688-44352-03-00	1	Impeller		N/A
18-3301	Yamaha Outboard 90280-04M02-00 90280-04M04-00	1	Impeller Key		N/A
18-7436	Mallory 9-76615 Yamaha Outboard 93210-46044-00	1	O-Ring		N/A
NSS	Yamaha Outboard 97395-08050-00	4	Bolt	No Image	N/A
NSS	Yamaha Outboard 688-44322-00-00	1	Cup, Insert	No Image	N/A
NSS	Yamaha Outboard 688-44323-00-00	1	Plate, Wear	No Image	N/A
NSS	Yamaha Outboard 688-44324-A0-00	1	Gasket, Water Pump	No Image	N/A
