Water Pump Parts - Yamaha

Dominator carb black oxide stud kit, no spacer

Carburetor Stud Kits, Dominator Carb Stud (No Spacer) 5/16” x 2.225” O.A.L.

Carburetors Stay Perfectly Sealed to the Intake Manifold.
These stud kits feature the J-Form threads to resist loosening and vibration. Chrome moly black oxide. All carb stud kits come with hex nuts and washers.

Interchanges/Replaces

Mallory

• 9-43250

Yamaha Outboard

• 61A-44311-00-00
• 61A-44311-01-00
• 6E5-44311-00-00

Interchanges/Replaces

Mallory

• 9-43251

Yamaha Outboard

• 688-44311-01-00

Interchanges/Replaces

Mallory

• 9-43252

Yamaha Outboard

• 61A-44311-00-00
• 61A-44311-01-00
• 6E5-44311-00-00

Interchanges/Replaces

Mallory

• 9-43254

Yamaha Outboard

• 63V-44301-00-00

Key Features:

• Same as 18-3410 but without housing

Interchanges/Replaces

Mallory

• 9-48613

Yamaha Outboard

• 68T-W0078-00-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments

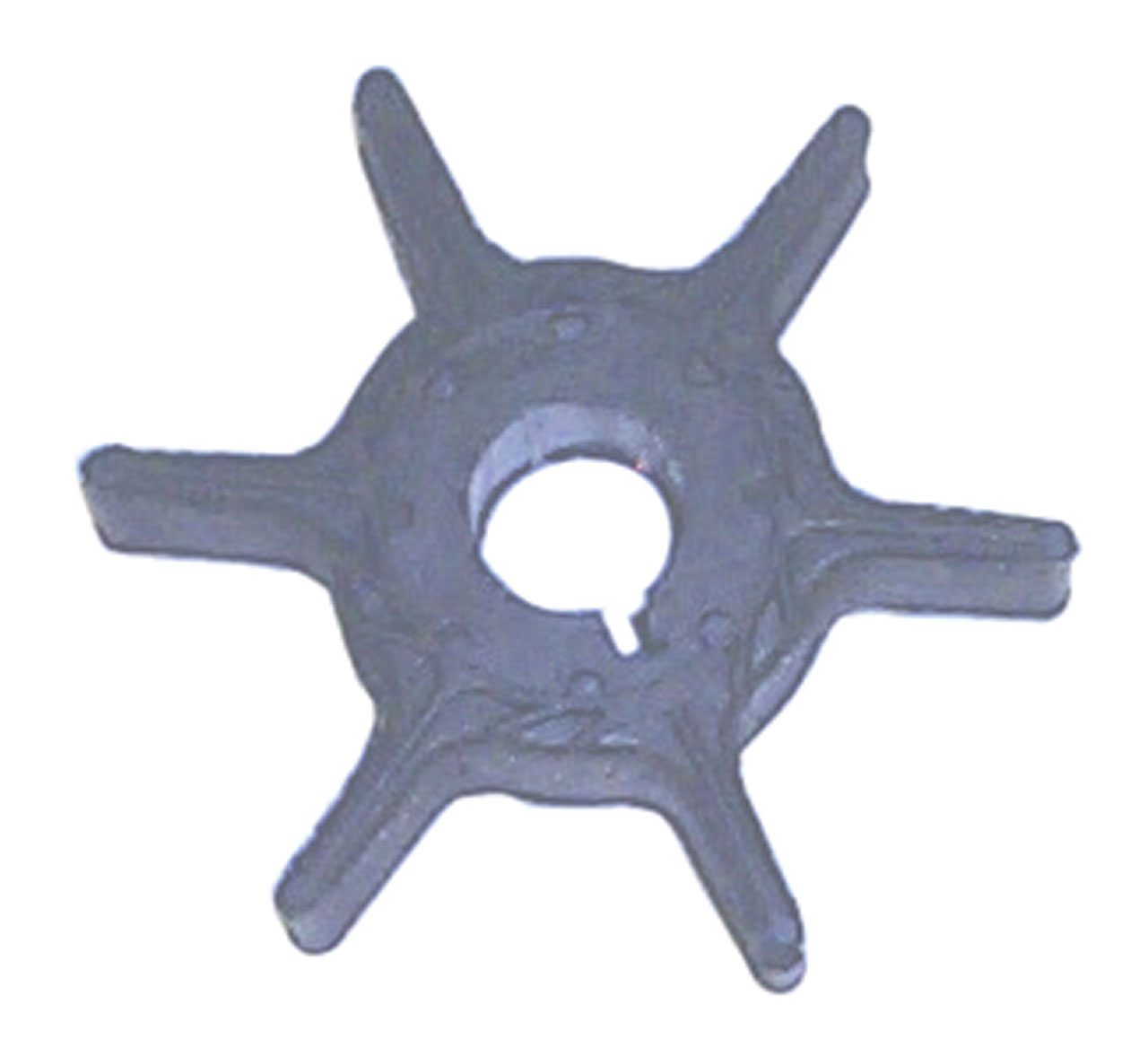

18-8910	Mallory 9-45614 Yamaha Outboard 68T-44352-00-00	1	Impeller		N/A
18-3444	Yamaha Outboard 63V-44322-00-00	1	Insert Cup		N/A

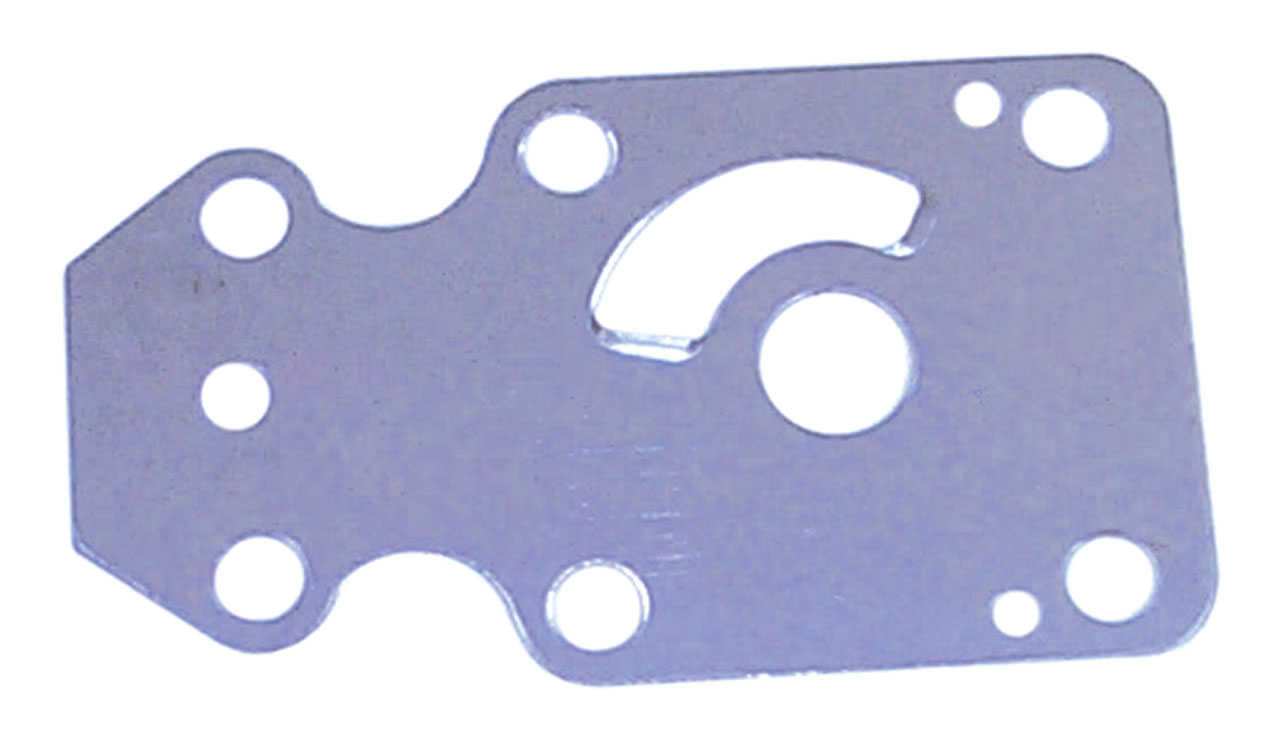

18-3142	Yamaha Outboard 68T-44323-00-00	1	Impeller Plate		N/A
18-3176	Yamaha Outboard 68T-44366-00-00	1	Water Seal Damper		N/A
18-3294	GLM 89594 Mercury Marine 28-81603M Yamaha Outboard 63V-44338-00-00 664-44338-00-00	1	Impeller Key		N/A
18-0256	Yamaha Outboard 91290-08045-00 97095-08045-00 97290-08045-00 97370-08045-00 97395-08045-00	4	Bolt		N/A
NSS	Yamaha Outboard 93210-44398-00	1	O-Ring	No Image	N/A

Key Features:

• Same as 18-3310 but includes Water Pump Housing

Interchanges/Replaces

Mallory

• 9-48614

Yamaha Outboard

• 6G5-W0078-00-00
• 6G5-W0078-01-00
• 6G5-W0078-A1-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0244	Yamaha Outboard 6E5-44315-00-00 6E5-44315-A0-00	1	Water Pump Gasket		N/A
18-0256	Yamaha Outboard 91290-08045-00 97095-08045-00 97290-08045-00 97370-08045-00 97395-08045-00	4	Bolt		N/A
18-3071	GLM 89930 Mallory 9-45609 9-45609-10 Yamaha Outboard 6E5-44352-00-00 6E5-44352-01-00	1	Impeller		N/A
18-3170	Mallory 9-43250 Yamaha Outboard 61A-44311-00-00 61A-44311-01-00 6E5-44311-00-00	1	Water Pump Housing		N/A

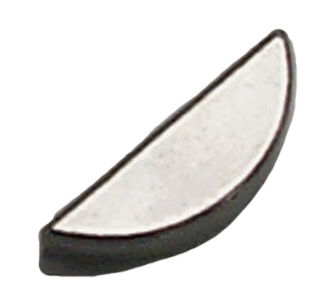

18-3302	Yamaha Outboard 90280-04M05-00	1	Impeller Key		N/A

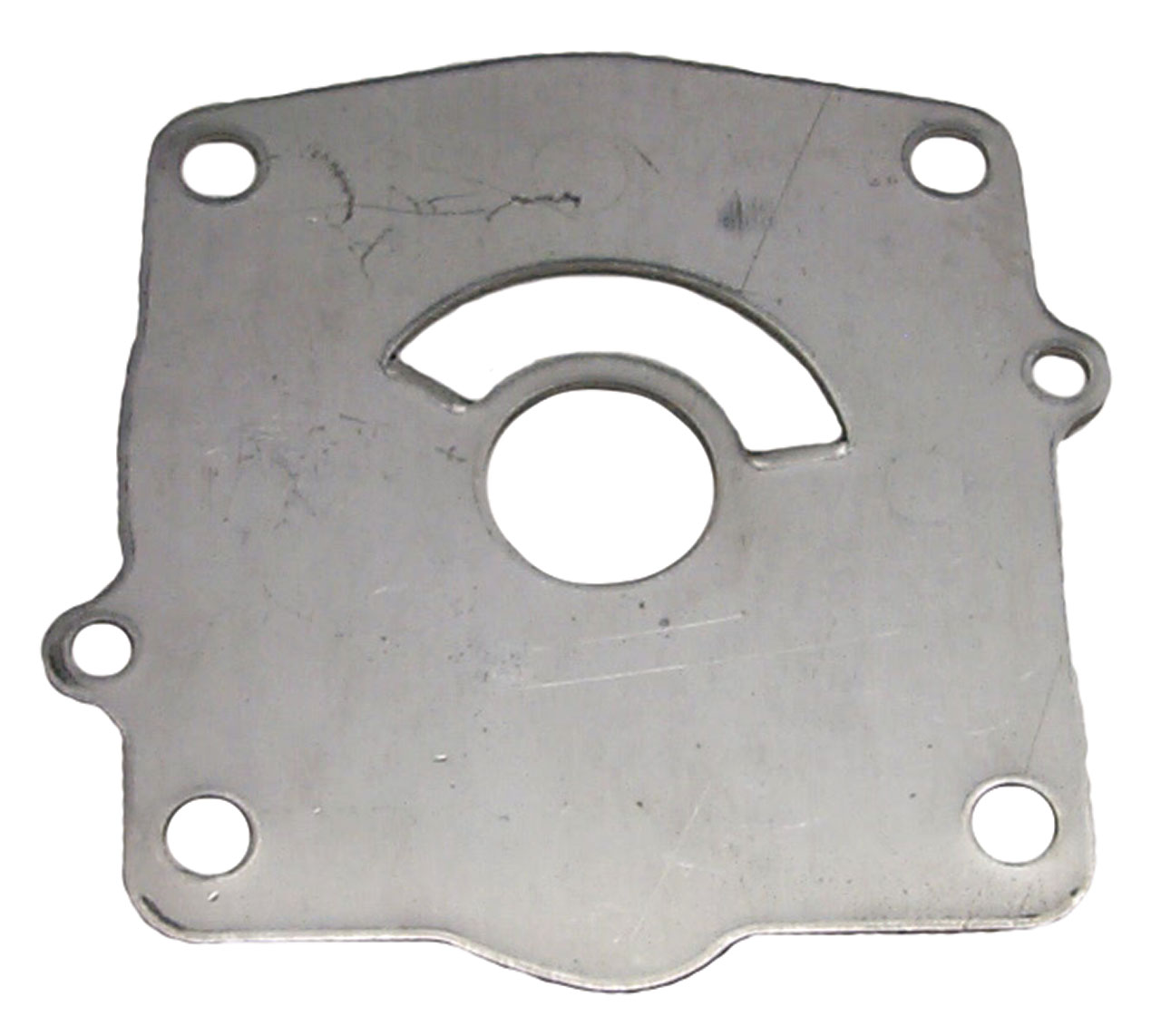

18-3345	Yamaha Outboard 6G5-44323-00-00 6G5-44323-01-00	1	Wear Plate		N/A
18-7483	Yamaha Outboard 93210-37160-00 93210-37M67-00	1	O-Ring		N/A
18-7485	Mallory 9-76573 Yamaha Outboard 93210-86M38-00	1	O-Ring		N/A
18-3333	Yamaha Outboard 61A-44322-00-00	1	Insert Cup		N/A
NSS	Yamaha Outboard 90209-08M02-00	4	Washer, Bolt	No Image	N/A
NSS	Yamaha Outboard 93606-12019-00	2	Pin, Dowel	No Image	N/A

Key Features:

• Same as 18-3312 but includes Water Pump Housing

Interchanges/Replaces

Mallory

• 9-48615

Yamaha Outboard

• 6N6-W0078-01-00
• 6N6-W0078-02-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0256	Yamaha Outboard 91290-08045-00 97095-08045-00 97290-08045-00 97370-08045-00 97395-08045-00	4	Bolt		N/A
18-7483	Yamaha Outboard 93210-37160-00 93210-37M67-00	1	O-Ring		N/A
18-3302	Yamaha Outboard 90280-04M05-00	1	Impeller Key		N/A
18-7485	Mallory 9-76573 Yamaha Outboard 93210-86M38-00	1	O-Ring		N/A
18-3344	Yamaha Outboard 6E5-44323-00-00	1	Wear Plate		N/A
18-3071	GLM 89930 Mallory 9-45609 9-45609-10 Yamaha Outboard 6E5-44352-00-00 6E5-44352-01-00	1	Impeller		N/A
18-3333	Yamaha Outboard 61A-44322-00-00	1	Insert Cup		N/A
18-0244	Yamaha Outboard 6E5-44315-00-00 6E5-44315-A0-00	1	Water Pump Gasket		N/A

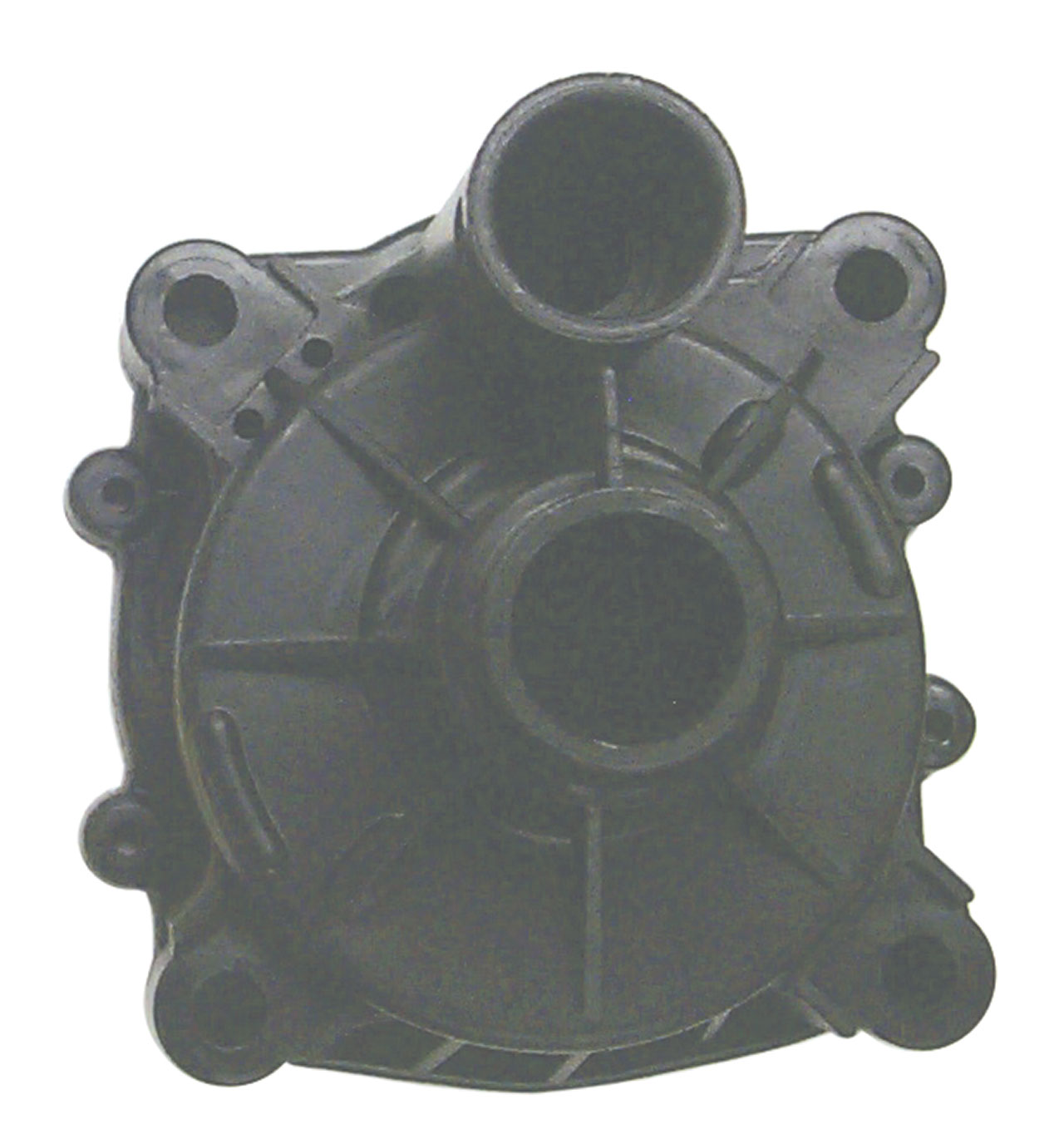

18-3173-1	Mallory 9-43252 Yamaha Outboard 61A-44311-00-00 61A-44311-01-00 6E5-44311-00-00	1	Water Pump Housing		N/A
NSS	Yamaha Outboard 93606-12019-00	2	Pin, Dowel	No Image	N/A
NSS	Yamaha Outboard 90209-08M02-00	4	Washer, Bolt	No Image	N/A

Key Features:

• Same as 18-3370 but includes Water Pump Housing

Interchanges/Replaces

Mallory

• 9-48616

Yamaha Outboard

• 692-W0078-00-00
• 692-W0078-A0-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0239	Mallory 9-60378 Yamaha Outboard 688-44315-00-00 688-44315-A0-00	1	Water Pump Gasket		N/A
18-0240	Mallory 9-60382 Yamaha Outboard 688-44316-01-00 688-44316-A0-00	1	Water Pump Gasket		N/A
18-3070	GLM 89920 Mallory 9-45603 9-45603-10 Yamaha Outboard 688-44352-03-00	1	Impeller		N/A
18-3171	Mallory 9-43251 Yamaha Outboard 688-44311-01-00	1	Water Pump Housing		N/A
18-3301	Yamaha Outboard 90280-04M02-00 90280-04M04-00	1	Impeller Key		N/A
18-7436	Mallory 9-76615 Yamaha Outboard 93210-46044-00	1	O-Ring		N/A
NSS	Yamaha Outboard 97395-08070-00	2	Bolt	No Image	N/A
NSS	Yamaha Outboard 97395-08050-00	2	Bolt	No Image	N/A
NSS	Yamaha Outboard 688-44322-00-00	1	Cup, Insert	No Image	N/A
NSS	Yamaha Outboard 688-44323-00-00	1	Plate, Wear	No Image	N/A
NSS	Yamaha Outboard 688-44324-A0-00	1	Gasket, Water Pump	No Image	N/A

Key Features:

• Same as 18-3395 but includes Water Pump Housing

Interchanges/Replaces

Mallory

• 9-48618

Yamaha Outboard

• 61A-W0078-A2-00
• 61A-W0078-A3-00
• 64L-W0078-00-00
• 65L-W0078-A0-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-3173-1	Mallory 9-43252 Yamaha Outboard 61A-44311-00-00 61A-44311-01-00 6E5-44311-00-00	1	Water Pump Housing		N/A
18-3071	GLM 89930 Mallory 9-45609 9-45609-10 Yamaha Outboard 6E5-44352-00-00 6E5-44352-01-00	1	Impeller		N/A
18-3345	Yamaha Outboard 6G5-44323-00-00 6G5-44323-01-00	1	Wear Plate		N/A
18-3302	Yamaha Outboard 90280-04M05-00	1	Impeller Key		N/A
18-3333	Yamaha Outboard 61A-44322-00-00	1	Insert Cup		N/A
18-0244	Yamaha Outboard 6E5-44315-00-00 6E5-44315-A0-00	1	Water Pump Gasket		N/A
18-0256	Yamaha Outboard 91290-08045-00 97095-08045-00 97290-08045-00 97370-08045-00 97395-08045-00	4	Bolt		N/A
18-7483	Yamaha Outboard 93210-37160-00 93210-37M67-00	1	O-Ring		N/A
18-7485	Mallory 9-76573 Yamaha Outboard 93210-86M38-00	1	O-Ring		N/A
NSS	Yamaha Outboard 93606-12019-00	2	Pin, Dowel	No Image	N/A
NSS	Yamaha Outboard 90209-08M02-00	4	Washer, Bolt	No Image	N/A

Interchanges/Replaces

Mallory

• 9-48600
• 9-48605

Mercury Marine

• 46-84277M
• 46-84277T

Yamaha Outboard

• 682-W0078-00-00
• 682-W0078-01-00
• 682-W0078-A1-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0768	Mercury Marine 27-84024 27-84024M Yamaha Outboard 682-44315-00-00 682-44315-A0-00	2	Wear Plate Gasket		N/A
18-3074	GLM 89880 Mallory 9-45605 Mercury Marine 47-84027M 47-84027T 47-96619M Yamaha Outboard 682-44352-00-00 682-44352-01-00 682-44352-03-00 682-44352-40-00	1	Impeller		N/A
18-2607	Mercury Marine 10-82457M 10-827043M Yamaha Outboard 91101-06040-00 91103-06040-00 91104-06040-00 91201-06040-00 91202-06040-00 91203-06040-00 97011-06040-00 97012-06040-00 97095-06040-00 97301-06040-00 97303-06040-00 97311-06040-00 97312-06040-00 97313-06040-00 97321-06040-00 97395-06040-00 97515-06240-00	4	Bolt		N/A
NSS	Yamaha Outboard 682-44322-00-00	1	Cup, Insert	No Image	N/A
NSS	Yamaha Outboard 682-44323-00-00	1	Plate, Wear	No Image	N/A
18-1834	Mercury Marine 26-84022M Yamaha Outboard 682-44365-00-00	1	Water Seal Damper		N/A
18-3305	Mercury Marine 28-81912M 28-83701M Yamaha Outboard 90280-03003-00 90280-03024-00	1	Impeller Key		N/A

Key Features:

• Same as 18-3311 but does not include Water Pump Housing

Interchanges/Replaces

Mallory

• 9-48601

Yamaha Outboard

• 6G5-W0078-00-00
• 6G5-W0078-01-00
• 6G5-W0078-A1-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0244	Yamaha Outboard 6E5-44315-00-00 6E5-44315-A0-00	1	Water Pump Gasket		N/A
18-0256	Yamaha Outboard 91290-08045-00 97095-08045-00 97290-08045-00 97370-08045-00 97395-08045-00	4	Bolt		N/A
18-3071	GLM 89930 Mallory 9-45609 9-45609-10 Yamaha Outboard 6E5-44352-00-00 6E5-44352-01-00	1	Impeller		N/A
18-3302	Yamaha Outboard 90280-04M05-00	1	Impeller Key		N/A
18-3345	Yamaha Outboard 6G5-44323-00-00 6G5-44323-01-00	1	Wear Plate		N/A
18-7483	Yamaha Outboard 93210-37160-00 93210-37M67-00	1	O-Ring		N/A
18-7485	Mallory 9-76573 Yamaha Outboard 93210-86M38-00	1	O-Ring		N/A
NSS	Yamaha Outboard 6E5-44322-00-00	1	Cup, Insert	No Image	N/A
NSS	Yamaha Outboard 90209-08M02-00	4	Washers, Bolt	No Image	N/A

Key Features:

• Same as 18-3371 but does not contain water pump housing

Interchanges/Replaces

Mallory

• 9-48602
• 9-48606

Yamaha Outboard

• 692-W0078-00-00
• 692-W0078-01-00
• 692-W0078-02-00
• 692-W0078-A0-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0239	Mallory 9-60378 Yamaha Outboard 688-44315-00-00 688-44315-A0-00	1	Water Pump Gasket		N/A
18-0240	Mallory 9-60382 Yamaha Outboard 688-44316-01-00 688-44316-A0-00	1	Water Pump Gasket		N/A
18-3070	GLM 89920 Mallory 9-45603 9-45603-10 Yamaha Outboard 688-44352-03-00	1	Impeller		N/A
18-3301	Yamaha Outboard 90280-04M02-00 90280-04M04-00	1	Impeller Key		N/A
18-7436	Mallory 9-76615 Yamaha Outboard 93210-46044-00	1	O-Ring		N/A
NSS	Yamaha Outboard 97395-08050-00	4	Bolt	No Image	N/A
NSS	Yamaha Outboard 688-44322-00-00	1	Cup, Insert	No Image	N/A
NSS	Yamaha Outboard 688-44323-00-00	1	Plate, Wear	No Image	N/A
NSS	Yamaha Outboard 688-44324-A0-00	1	Gasket, Water Pump	No Image	N/A

Key Features:

• Same as 18-3396-1 but without the water pump housing

Interchanges/Replaces

Mallory

• 9-48603

Yamaha Outboard

• 61A-W0078-00-00
• 61A-W0078-01-00
• 61A-W0078-A1-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0244	Yamaha Outboard 6E5-44315-00-00 6E5-44315-A0-00	1	Water Pump Gasket		N/A
18-0256	Yamaha Outboard 91290-08045-00 97095-08045-00 97290-08045-00 97370-08045-00 97395-08045-00	4	Bolt		N/A
18-3071	GLM 89930 Mallory 9-45609 9-45609-10 Yamaha Outboard 6E5-44352-00-00 6E5-44352-01-00	1	Impeller		N/A
18-3302	Yamaha Outboard 90280-04M05-00	1	Impeller Key		N/A
18-3333	Yamaha Outboard 61A-44322-00-00	1	Insert Cup		N/A
18-3345	Yamaha Outboard 6G5-44323-00-00 6G5-44323-01-00	1	Wear Plate		N/A
18-7483	Yamaha Outboard 93210-37160-00 93210-37M67-00	1	O-Ring		N/A
18-7485	Mallory 9-76573 Yamaha Outboard 93210-86M38-00	1	O-Ring		N/A
NSS	Yamaha Outboard 93606-12019-00	2	Pin, Dowel	No Image	N/A
NSS	Yamaha Outboard 90209-08M02-00	4	Washer, Bolt	No Image	N/A

Key Features:

• Same as 18-3409 but without housing

Interchanges/Replaces

Mallory

• 9-48608

Yamaha Outboard

• 67F-W0078-00-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-3042	Mallory 9-45612 Yamaha Outboard 67F-44352-00-00	1	Impeller		N/A
18-3162	Yamaha Outboard 67F-44322-00-00	1	Insert Cup		N/A
18-3143	Yamaha Outboard 67F-44323-00-00	1	Impeller Plate		N/A
18-7436	Mallory 9-76615 Yamaha Outboard 93210-46044-00	1	O-Ring		N/A
18-0239	Mallory 9-60378 Yamaha Outboard 688-44315-00-00 688-44315-A0-00	1	Water Pump Gasket		N/A
18-0240	Mallory 9-60382 Yamaha Outboard 688-44316-01-00 688-44316-A0-00	1	Water Pump Gasket		N/A
18-3301	Yamaha Outboard 90280-04M02-00 90280-04M04-00	1	Impeller Key		N/A
18-2605	Yamaha Outboard 90119-08M87-00	2	Bolt		N/A
18-2606	Yamaha Outboard 90119-08M13-00	2	Bolt		N/A
NSS	Yamaha Outboard 688-44324-A0-00	1	Gasket, Water Pump	No Image	N/A
NSS	Yamaha Outboard 90209-08M02-00	4	Washer, Bolt	No Image	N/A

Key Features:

• Same as 18-3412 but without housing

Interchanges/Replaces

Mallory

• 9-48609
• 9-48617

Yamaha Outboard

• 63V-W0078-00-00
• 63V-W0078-01-00
• 63V-W0078-02-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-3040	Mallory 9-45607 Yamaha Outboard 63V-44352-00-00 63V-44352-01-00	1	Impeller		N/A
18-3444	Yamaha Outboard 63V-44322-00-00	1	Insert Cup		N/A
18-3195	Yamaha Outboard 63V-44323-00-00	1	Impeller Plate		N/A
18-0256	Yamaha Outboard 91290-08045-00 97095-08045-00 97290-08045-00 97370-08045-00 97395-08045-00	4	Bolt		N/A
18-3294	GLM 89594 Mercury Marine 28-81603M Yamaha Outboard 63V-44338-00-00 664-44338-00-00	1	Impeller Key		N/A
18-1833	Yamaha Outboard 647-44366-00-00	1	Water Seal Damper		N/A

Key Features:

• Same as 18-3413 but without housing

Interchanges/Replaces

Mallory

• 9-48610

Yamaha Outboard

• 66T-W0078-00-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-3068	GLM 89900 Mallory 9-45601 9-45601-10 Yamaha Outboard 6H2-44352-00-00 6H2-44352-01-00 6H2-44352-02-00	1	Impeller		N/A
18-3449	Yamaha Outboard 63D-44322-00-00	1	Insert Cup		N/A
18-3196	Yamaha Outboard 66T-44323-00-00	1	Impeller Plate		N/A
18-0483	Yamaha Outboard 63D-44316-00-00	1	Pump Case Gasket		N/A
18-8400-9	Yamaha Outboard 90119-08M15-00	1	Bolt (Priced Per Pkg of 4)		N/A
18-3297	Mercury Marine 28-97089M Yamaha Outboard 90280-03M03-00 90280-03M07-00	1	Impeller Key		N/A
18-1830	Mercury Marine 26-81426M Yamaha Outboard 663-44366-00-00	1	Water Seal Damper		N/A
NSS	Yamaha Outboard 90209-08M02-00	4	Washer	No Image	N/A
NSS	Yamaha Outboard 93210-59MG7-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 63D-44312-00-00	1	Cover, Pump Housing	No Image	N/A

Key Features:

• Same as 18-3523-1 but without housing

Interchanges/Replaces

Mallory

• 9-48611

Yamaha Outboard

• 68V-W0078-00-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-3519	Yamaha Outboard 61A-44322-01-00 61A-44322-02-00	1	Water Pump Housing Insert Cup		N/A
18-3071	GLM 89930 Mallory 9-45609 9-45609-10 Yamaha Outboard 6E5-44352-00-00 6E5-44352-01-00	1	Impeller		N/A
18-3521	Yamaha Outboard 68V-44323-00-00 6EK-44323-00-00	1	Water Pump Base Outer Plate		N/A
18-0244	Yamaha Outboard 6E5-44315-00-00 6E5-44315-A0-00	2	Water Pump Gasket		N/A
18-0256	Yamaha Outboard 91290-08045-00 97095-08045-00 97290-08045-00 97370-08045-00 97395-08045-00	4	Bolt		N/A
18-7483	Yamaha Outboard 93210-37160-00 93210-37M67-00	1	O-Ring		N/A
18-3302	Yamaha Outboard 90280-04M05-00	1	Impeller Key		N/A
18-7485	Mallory 9-76573 Yamaha Outboard 93210-86M38-00	1	O-Ring		N/A
NSS	Yamaha Outboard 93606-12019-00	2	Pin, Dowel	No Image	N/A
NSS	Yamaha Outboard 90209-08M02-00	4	Washer	No Image	N/A

Additional Details:

• Fits: Mercury 225 EFI (4-Stroke) 0T653945 & Up
• Fits: Yamaha 2-Stroke 115hp-300hp 1993-Current
• Fits: Yamaha 4-Stroke 115hp-225hp 2002-Current

Interchanges/Replaces

Mallory

• 9-43714

Mercury Marine

• 13-888363 2

Yamaha Outboard

• 90206-22M19-00

Additional Details:

• Fits: Yamaha 2-Stroke 115-300hp 1993 & Up
• Fits: Yamaha 4-Stroke 115-225hp 2002-Up
• Fits: Mercury 4-Stroke 225 EFI S/N 0T653945 & Up

Interchanges/Replaces

Mallory

• 9-43715

Yamaha Outboard

• 61A-45538-00+61A-45527-00+90206-22M19+90201-22M01

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-9075	Mallory 9-43711 Mercury Marine 23-888690 Yamaha Outboard 61A-45538-00-00	1	Spacer		N/A
18-9076	Mallory 9-43712 Mercury Marine 23-886901 Yamaha Outboard 61A-45527-00-00	1	Collar		N/A
18-9077	Mallory 9-43714 Mercury Marine 13-888363 2 Yamaha Outboard 90206-22M19-00	1	Wave Washer		N/A
18-9078	Mallory 9-43713 Mercury Marine 12-8556822 Yamaha Outboard 90201-22M01-00	2	S.S. Washer		N/A
