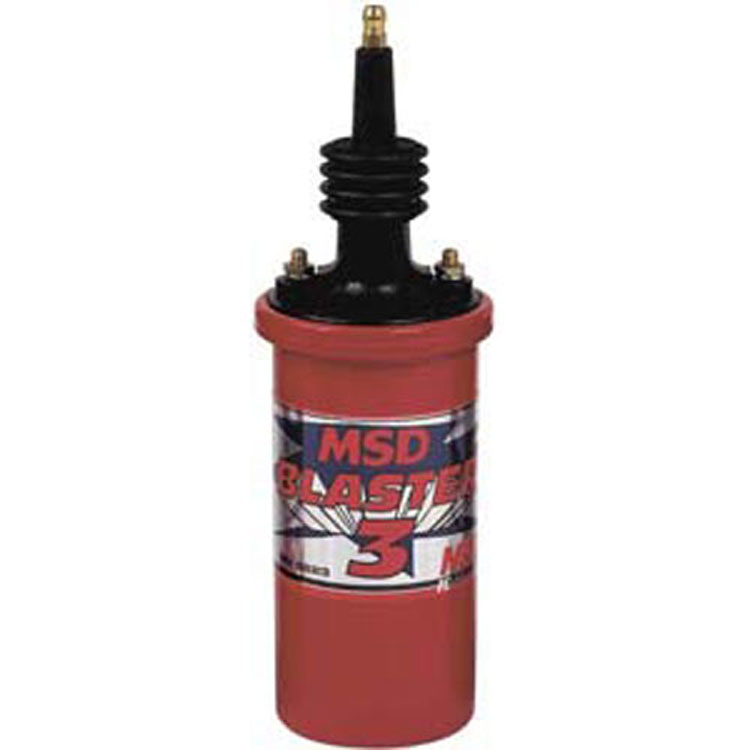

MSD High Performance Red Blaster 3 Coil

# 120-8223
Installation Instructions
Ask a question about this part

High Performance Red Blaster 3 Coil

    Coil Specs:
  • Turns ratio: 100:1
  • Primary resistance: .7 OHMs
  • Secondary resistance: 4.5K OHMs
  • Inductance: 8 mH
  • Maximum voltage: 45,000 Volts (Tested with 6AL Ignition)
  • Peak current: 140 mA
  • Spark duration: 350 uS
MSD Blaster Coils are designed to improve spark output and are made for use with stock coil, Blaster Ignition, MSD 5, 6 or 7 Ignition Control performance upgrades. Special 100:1 windings are used to provide maximum build-up of voltage and are kept cool and securely held in an oil-filled metal canister. The tower assembly is molded of durable alkyd material and wide spaced brass primary terminals prevent the possibility of spark. There are several Blaster Coil styles available, all with the same internal specifications, but with different housings or components.
    Features:
  • Extra tall secondary tower for secure coil wire connection
  • Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • MSD Red metal canister is filled with a premium grade oil for cooling
  • Supplied with a 90° spark plug style terminal and boot
MSRP: $66.61
Your Price: $59.95
 You Save: 10% off MSRP!

Additonal Info On This Product:

MSD Red Blaster 3 Coil with Power Tower Male Plug Terminal

If you're looking to upgrade your stock coil or want to complement the performance of your MSD ignition, our Blaster Coils are the right choice.

Blaster Coils for points, electronic or MSD ignitions: With a stock points style ignition, a ballast resistor must be placed in-line with the positive terminal of the coil. The following Blaster Coils are supplied with a 0.8 ohm ballast resistor plus a terminal and boot to fit most applications Mallory Unilite applications also require the ballast resistor.
Points ignition systems require this ballast resistor included with kit in addition to any original resistor or resistor wiring.

Note: The ballast is not necessary if an MSD 6 or 7 series ignition control is being used with the points distributor.
