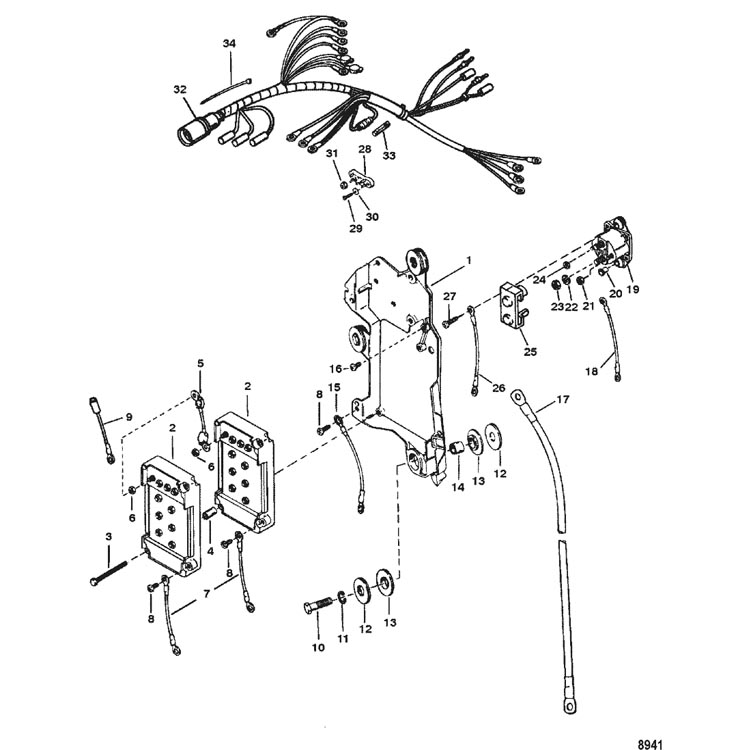

200 EFI PRO MAX and SUPER MAG - Serial 0D935000 Thru 0G610079 - Wiring Harness and Starter Solenoid
Section Drawing: (Hover or click to view larger)
