275 VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Driveshaft Housing

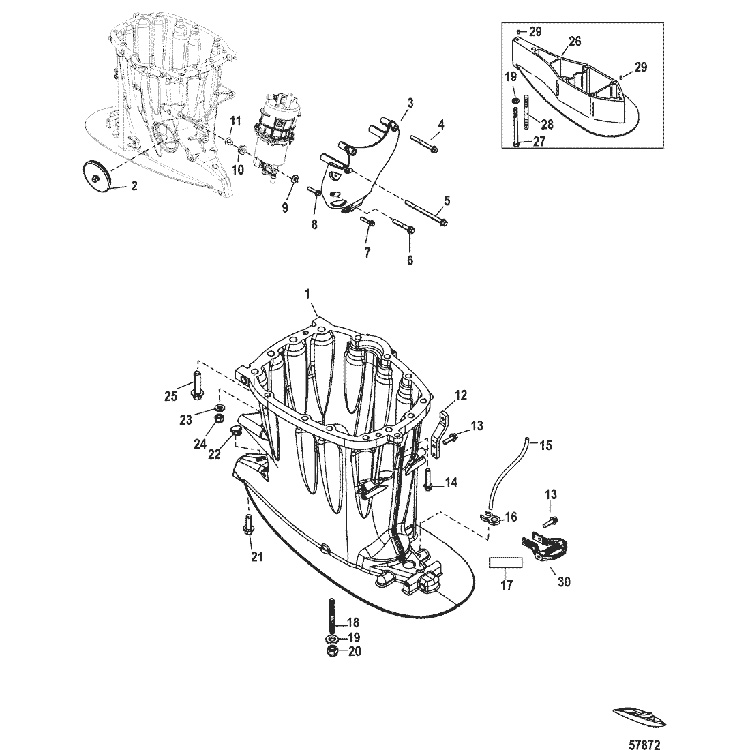

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1500-8M0113286         HOUSING, Driveshaft Long, Black 1 8M0103297
1 1500-8M0113287         HOUSING, Driveshaft X-Long, Black 1
1 1500-8M0103294         HOUSING, Driveshaft Long, Silver 1
1 1500-8M0103306         HOUSING, Driveshaft X-Long, Silver 1
2 25-889568001         GROMMET 1
3 889656T01         SHROUD 1
4 10-88552675         SCREW, (M8 x 75) 2
5 10-885526120         SCREW, (M8 x 120) 2
6 10-8M0103816         SCREW, (M8 x 50) 2
7 10-8M0103815         SCREW, (M8 x 40) 1
8 10-8M0103814         SCREW, (M8 x 35 MM) 3
9 12-817274         WASHER, (.344 x 1.00 x .063) Stainless Steel 3
10 25-834985         GROMMET 3
11 23-856954         BUSHING 3
12 897784A01         BRACKET KIT, Upper Chap 2
13 10-8M0103806         --SCREW, (M6 x 20 MM) Stainless Steel 2 88552520
14 10-8M0103813         SCREW, (M8 x 30) 1
15 32-85944975         TUBING, (72.00 Inches Bulk), Cut to 64 Inches) 1
16 889831001         RETAINER 1
17 NSS         Decal-Oil Drain 1 NOT SOLD SEPARATE
18 16-8M0008031         STUD, (M12 x 1.75 x 52) 4
19 12-856982         WASHER, (.500 x .810 x .090) Stainless Steel 4 or 5
20 11-897926         NUT, (M12), Nylon Insert 4
21 10-8M0102995         SCREW, (M12) 1
22 19-824928001         PLUG, Rubber 1
23 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 10
24 11-884412         NUT 10
25 10-88552845         SCREW, (M12 x 45) 4
26 8M0105088         SPACER, Driveshaft Housing X-Long, Black 1 8M0071622
26 8M0105091         SPACER, Driveshaft Housing X-Long, Silver 1 8M0100196
27 10-857137         SCREW, (M12 x 160) 1
28 16-8M0008047         STUD, (M12 x 179) 4
29 17-43044         PIN, Dowel - Without Hole (.375 x .625) 2
30 891966006         BRACKET, Cowl 1
