6.2L MPI 350 - 2A530776 and Up - Fuel Supply Module 2A575399 and Up

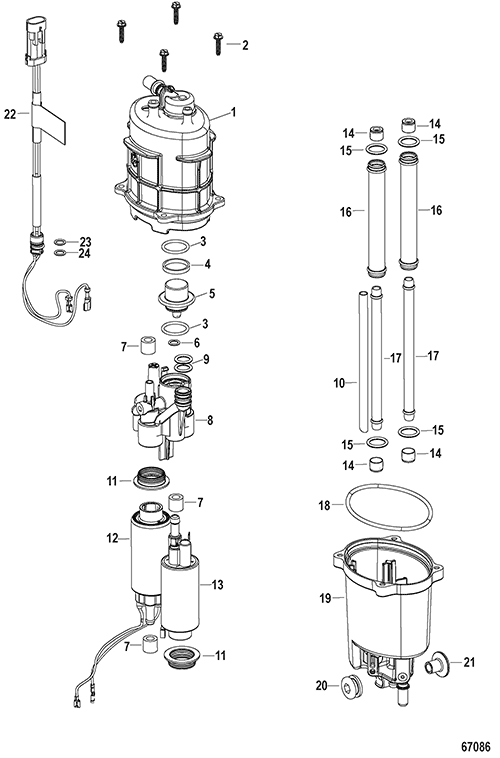

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
- 0000 8M0132733 FUEL SUPPLY MODULE Dual Pump   1
1 0000 OEM: 525-8M0053726 FSM TOP HOUSING   1
2 0010 OEM: 525-10-8M0053756 SCREW Plastite W/ HX WSR HD   4
3   NSS NOT SOLD SEPARATE O-Ring   2 [1]
4   NSS NOT SOLD SEPARATE Spacer   1 [1]
5 0000 OEM: 525-8M0053749 REGULATOR ASSEMBLY   1
6   NSS NOT SOLD SEPARATE O-Ring   1 [1]
7   NSS NOT SOLD SEPARATE Seal   3 [1]
8 0000 OEM: 525-8M0053727 FSM CAP   1
9   NSS NOT SOLD SEPARATE O-Ring   2 [1]
10 0032 OEM: 525-32-8M0053755 TUBE Suction   1
11   NSS NOT SOLD SEPARATE Seal   2 [1]
12 0000 OEM: 525-8M0062770 PUMP ASSY High Pressure   1
13 0000 OEM: 525-8M0062771 PUMP ASSY Low Pressure   1
14   NSS NOT SOLD SEPARATE Seal   4 [1]
15   NSS NOT SOLD SEPARATE O-Ring   4 [1]
16 0032 8M0120073 TUBE Water   2
17 0032 8M0130873 TUBE Fuel   2
18   NSS NOT SOLD SEPARATE Seal   1 [1]
19 0000 8M0130878 FSM BOTTOM HOUSING   1
20 0025 OEM: 525-25-895319 GROMMET   1
21 0023 OEM: 525-23-856954 BUSHING   1
22 0084 8M6004776 HARNESS ASSEMBLY   1
23   NSS NOT SOLD SEPARATE O-Ring   1 [1]
24   NSS NOT SOLD SEPARATE O-Ring   1 [1]
- 0000 8M0133370 FSM SEAL KIT   1

PART NOTES:

[1] - Component of Fuel Module Seal Kit [8M0133370]
