175 (2 BBL.) GM 262 V-6 - 0B527955 THRU 0B773242 - STANDARD COOLING SYSTEM OLD DESIGN

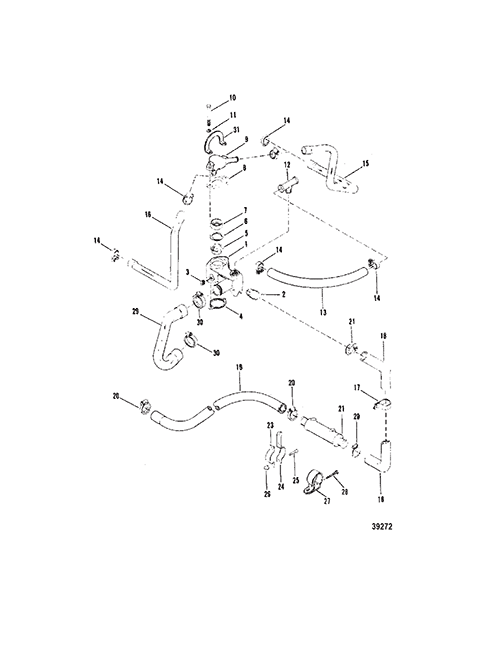

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-87290A4, Sierra: 676-18-1994, GLM: 700-13230 | HOUSING ASSEMBLY | 1 | ||
| 2 | 0023 | 47511 | SLEEVE THERMOSTAT HOUSING | 1 | ||
| 3 | 0022 | OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 | PLUG Pipe (.375-18) Brass | 2 | ||
| 4 | 0027 | OEM: 525-27-530451, Sierra: 676-18-2917 | GASKET THERMOSTAT HOUSING | 1 | [1] | |
| 5 | 0000 | 59137 | THERMOSTAT (140 Degrees) (143 DEGREES) | 1 | ||
| 6 | 0027 | OEM: 530-47510, Sierra: 676-18-2553, GLM: 700-31460 | GASKET THERMOSTAT | 1 | [2] | |
| 7 | 0023 | 47508 | SLEEVE THERMOSTAT | 1 | ||
| 8 | 0027 | 41812 | GASKET THERMOSTAT COVER | 1 | [3] | |
| 9 | 0000 | OEM: 525-47441A1, Sierra: 676-18-1977-1, GLM: 700-13220 | COVER THERMOSTAT | 1 | ||
| 10 | 0010 | 48130 | SCREW (.375-16 x 4.500) THERMOSTAT HOUSING | 2 | ||
| 11 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) THERMOSTAT HOUSING SCREW | 2 | ||
| 12 | 0022 | OEM: 525-22-98477A2, GLM: 700-13236 | VALVE ASSEMBLY | 1 | ||
| 13 | 0032 | 3322070 | HOSE (48.00 Inches Bulk) TEE TO EXHAUST ELBOWS (17") | 2 | ||
| 14 | 0054 | 32780 | CLAMP HOSE ATTACHING | 8 | ||
| 15 | 0032 | 16021 | HOSE THERMOSTAT COVER TO EXH. MANIFOLD (PORT) | 1 | ||
| 16 | 0032 | OEM: 525-32-41940 | HOSE THERMOSTAT COVER TO EXH. MANIFOLD (STARBOARD) | 1 | ||
| 17 | 0054 | OEM: 525-54-47715 | CLIP HOSE ATTACHING | 1 | ||
| 18 | 0032 | OEM: 525-32-88794 | HOSE THERMOSTAT HOUSING TO FLUID COOLER | 1 | ||
| 19 | 0032 | OEM: 525-32-41642A3 | HOSE FLUID COOLER (3/4" I.D.) | 1 | ||
| 20 | 0054 | 32780 | CLAMP HOSE ATTACHING | 4 | ||
| 21 | 0000 | OEM: 525-99356A2, Sierra: 676-18-2587 | COOLER ASSEMBLY POWER STEERING FLUID | 1 | ||
| 23 | 0000 | OEM: 525-56328A1 | BRACKET FLUID COOLER (SHORT) | 2 PIECE BRACKET | 1 | |
| 24 | 0000 | 638203 | BRACKET FLUID COOLER (LONG) | 2 PIECE BRACKET | 1 | |
| 25 | 0010 | OEM: 525-10-60300 | SCREW (.250-28 x .750) FLUID COOLER BRACKET | 2 PIECE BRACKET | 2 | |
| 26 | 0011 | OEM: 525-11-30506 | NUT (.250-28) | 2 PIECE BRACKET | 2 | |
| 27 | 0000 | 65970 | BRACKET FLUID COOLER | 1 PIECE BRACKET | 1 | |
| 28 | 0010 | 41408 | SCREW (#10-32 x 1.50) CLAMPING | 1 PIECE BRACKET | 1 | |
| 29 | 0032 | 87108 | HOSE Molded THERMOSTAT HOUSING TO WATER PUMP | 1 | ||
| 30 | 0054 | 87268 | CLAMP HOSE ATTACHING | 2 | ||
| 31 | 0000 | OEM: 525-12552, GLM: 700-13237 | LIFTING EYE | 1 | ||
| - | 0027 | OEM: 525-27-11977A92, Sierra: 676-18-4388, GLM: 700-39650 | GASKET SET | 1 |
PART NOTES:
[1] - Alternate part numbers:
53045 1Service Part
53045Q01QS
COMPONENT OF ENGINE/POWERHEAD GASKET SET 11977A92
[2] - Alternate part numbers:
47510Service Part
47510QQS
COMPONENT OF ENGINE/POWERHEAD GASKET SET 11977A92
[3] - Alternate part numbers:
41812Service Part
41812BBulk Pack
41812QQS
COMPONENT OF ENGINE/POWERHEAD GASKET SET 11977A92
