205 (4 BBL.) GM 262 V-6 - 0B527955 THRU 0B775129 - ENGINE MOUNTING NEW DESIGN - FLUID MOUNT

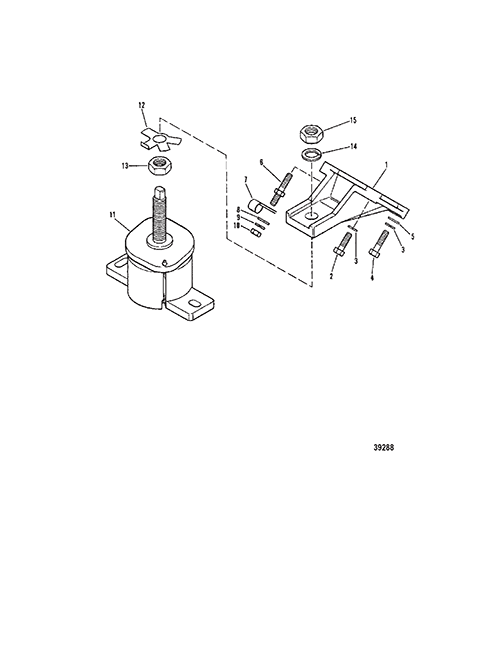

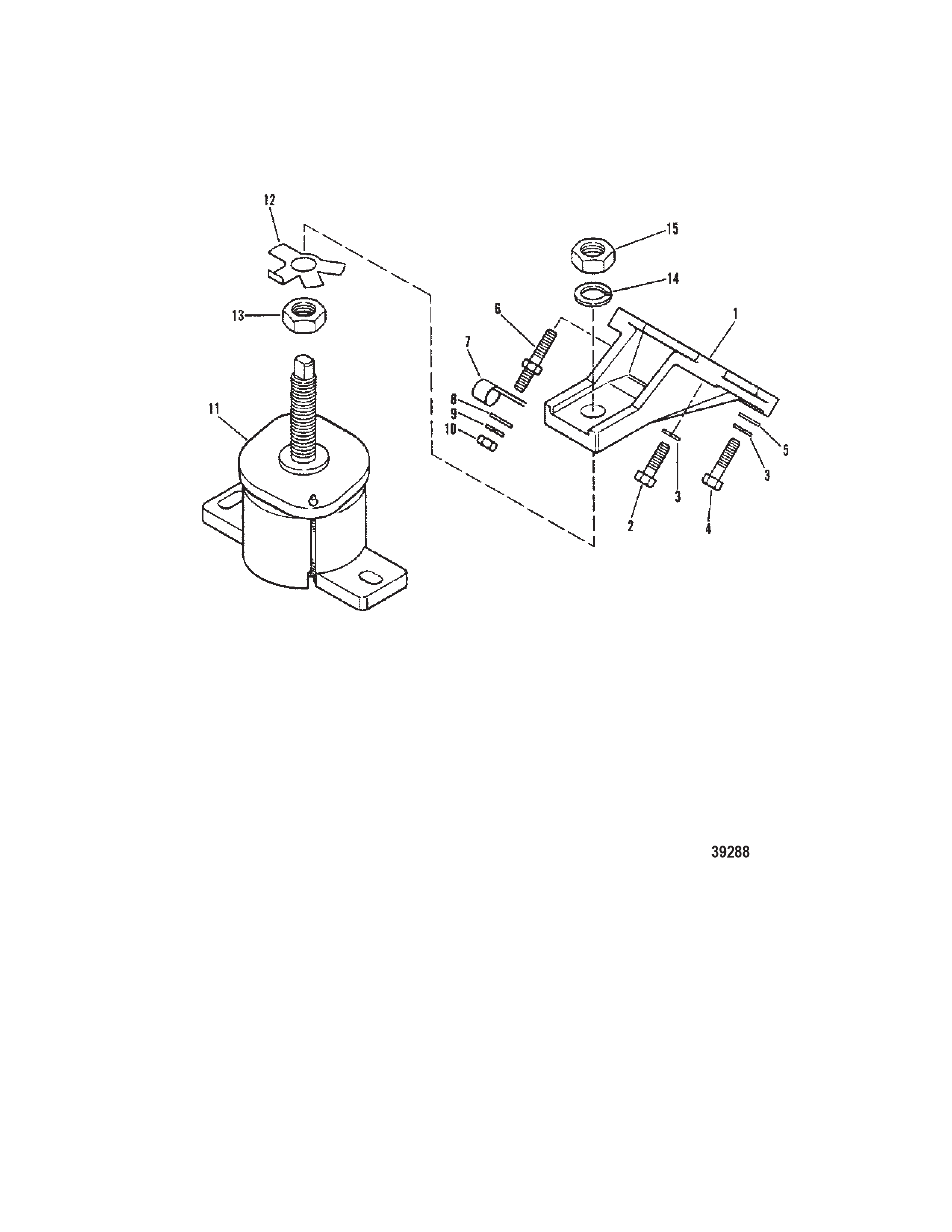

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 18645T BRACKET MOUNTING (FRONT)   2
2 0010 OEM: 525-10-68101 SCREW (.375-16 x 1.375) MOUNTING BRACKET   4
3 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375) BRACKET SCREW   5
4 0010 OEM: 525-10-48424 SCREW (.375-16 x 1.620) MOUNTING BRACKET   1
5 0012 OEM: 525-12-46132 WASHER BRACKET TO SCREW   1
6 0016 OEM: 525-16-64066 STUD (.375-16 x 2.750) Special MOUNTING BRACKET   1
7 0054 OEM: 525-54-78945 J CLAMP Harness Support   1
8 0012 OEM: 525-12-20553, GLM: 700-21675 WASHER (.406 x .734 x .063)   1
9 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   1
10 0011 OEM: 525-11-32219 NUT (.375-16)   1
11 0000 18098A3 FLUID MOUNT   2
12 0014 OEM: 525-14-12657 TAB WASHER   2
13 0011 OEM: 525-11-20739 NUT (.750-16) JAM   2
14 0013 OEM: 525-13-68102 LOCKWASHER (.750)   2
15 0011 OEM: 525-11-20739 NUT (.750-16) JAM   2
