496 Mag HO Model - Serial 1A350679 and Up - Seawater Pump

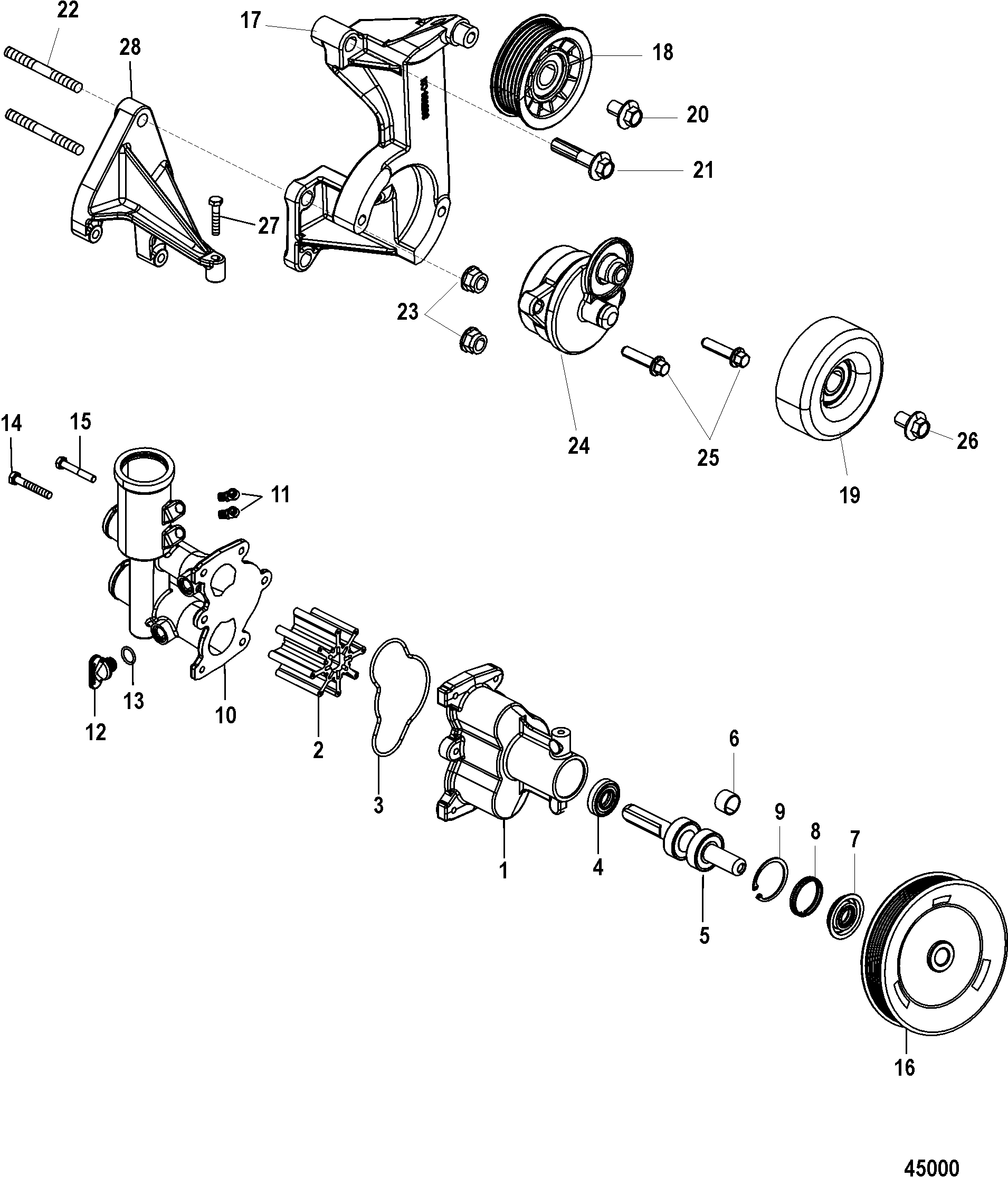

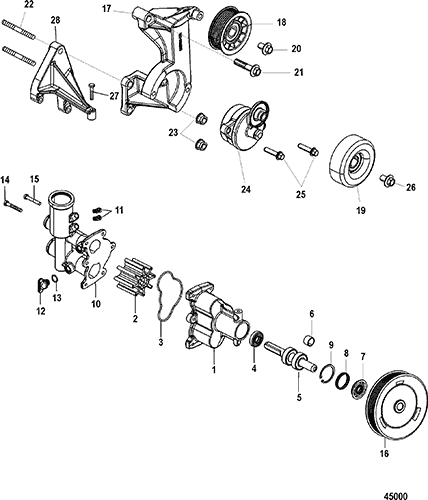

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Axius Steering, Fluid Filter (High Pressure), Gen I
- Axius Steering, High Pressure Filter Conversion Kit, Gen I
- Axius Steering, Hoses (High Pressure), Gen I
- Axius Steering, Hydraulic Pump And Reservoir,Gen I
- Axius Steering, Oil Cooler And Bracket, Gen I
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port (Axius)
- Cooling System, Raw Water Components, Port (Bravo)
- Cooling System, Raw Water Components, Starboard
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components, Bravo
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift-Axius
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 46-862914T12 | PUMP KIT, Sea Water | 1 | ||||||
| 1 | 46-862914A13 | HOUSING ASSEMBLY, Impeller | 1 | ||||||
| 2 | 47-8M0104229 | IMPELLER | 1 | ||||||
| 3 | 8M2021987 | O-RING, Formed | 1 | ||||||
| - | 8M0050018 | DRIVESHAFT ASSEMBLY KIT | 1 | ||||||
| 4 | 26-8M2001645 | SEAL, Oil | 1 | ||||||
| 5 | 8M0050018 | DRIVESHAFT ASSEMBLY, Impeller | 1 | 862235A1 | |||||
| 6 | NSS | NOT SOLD SEPARATE, SPACER | 1 | This Part is not sold separately SN# 1A351543 & Up | |||||
| 7 | 26-862040 | SEAL, Lip | 1 | ||||||
| 8 | 862039 | TOLERANCE RING | 1 | SN# 1A351542 & Below | |||||
| 9 | NSS | NOT SOLD SEPARATE, SNAP RING | 1 | This Part is not sold separately SN# 1A351543 & Up | |||||
| 10 | 863674A04 | COVER KIT, Impeller Housing | 1 | ||||||
| 11 | 22-865288 | FITTING, Gray (90 Degree) | 1 | ||||||
| 11 | 22-865289 | FITTING, Orange (90 Degree) | 1 | ||||||
| 12 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue | 2 | ||||||
| 13 | 25-32509 | O-RING, (.489 x .070) | 2 | 2,3 | |||||
| 14 | 10-4000328 | SCREW, (M6 x 16) | 6 | ||||||
| 15 | 10-8M2012296 | SCREW, (M6 x 40) | 2 | ||||||
| 16 | 862351T | PULLEY | 1 | ||||||
| 16 | 879172T78 | PULLEY | 1 | Axius | |||||
| 17 | 865596T01 | BRACKET, Idler Pulley | 1 | ||||||
| 18 | 865444T | PULLEY, (3.50 Inch Diameter), Idler, Grooved | 1 | ||||||
| 19 | 865777 | PULLEY, Idler, Non-Grooved | 1 | ||||||
| 20 | 10-4010816 | SCREW, (M10 x 16) Hex Flange - Stainless Steel | 1 | ||||||
| 21 | 10-4010845 | SCREW, (M10 x 45) Hex Flange - Stainless Steel | 1 | ||||||
| 22 | 16-854309 | STUD, (M10 x 76) | 2 | ||||||
| 23 | 11-826292 | NUT, (M10) Brass/Nickel Plated | 2 | ||||||
| 23 | 11-8M2000545 | NUT, (M10) Stainless Steel | 2 | (SEACORE) | |||||
| 24 | 865597T | TENSIONER, Belt | 1 | ||||||
| 25 | 10-88552630 | SCREW, (M8 x 30) | 2 | ||||||
| 26 | 10-4010820 | SCREW, (M10 x 20) Hex Flange - Stainless Steel | 1 | ||||||
| 27 | 10-4000331 | SCREW, (M6 x 30) | 1 | ||||||
| 28 | 863859T | BRACKET, Sea Water Pump | 1 | ||||||
| - | 879172A34 | PULLEY KIT, High Current, Axius | 1 |
