4.3L MPI ALPHA-BRAVO - 0M615000 THRU 0W309999 - Standard Cooling System (Single and Three Point Drain)

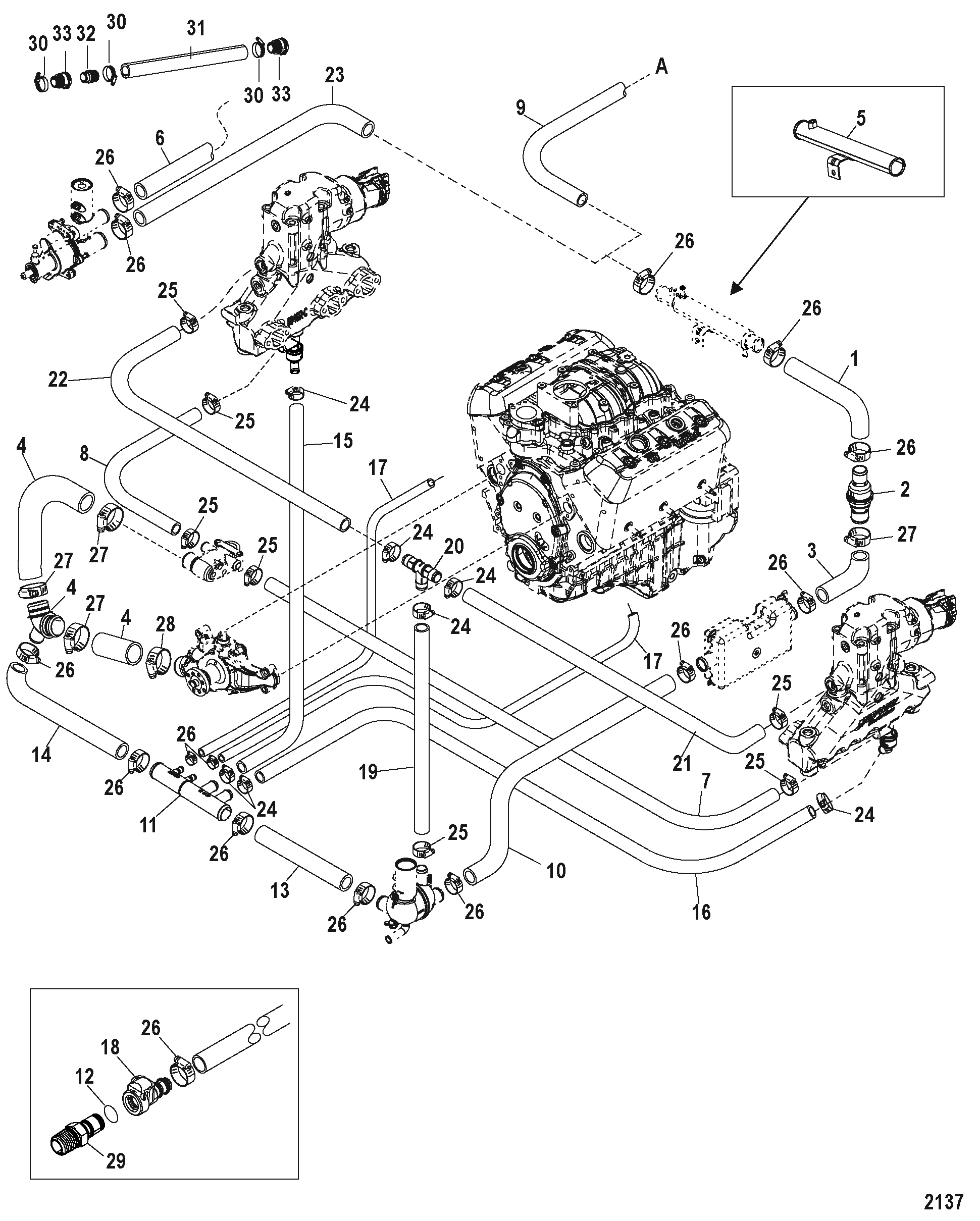

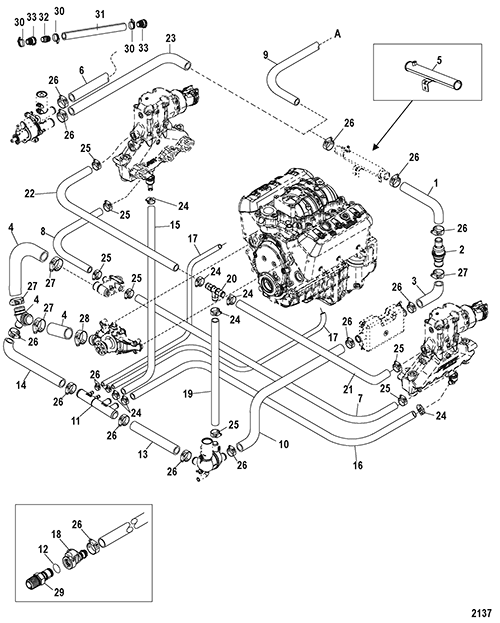

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Componets
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket (Alpha)(SN-0M659999 and Below)
- Shift Bracket (Alpha)(SN-0M660000 and Up)
- Shift Bracket (Bravo)(SN-0M659999 and Below)
- Shift Bracket (Bravo)(SN-0M660000 and Up)
- Standard Cooling System (Seven Point Drain)
- Standard Cooling System (Single and Three Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0032 | OEM: 525-32-863489 | HOSE Power Steering Cooler to Check Valve | 1 | ||
| 2 | 0021 | OEM: 525-21-864206A1 | CHECK VALVE ASSEMBLY | 1 | ||
| 3 | 0032 | OEM: 525-32-863811 | HOSE Check Valve to Fuel Cooler | 1 | ||
| 4 | 0032 | OEM: 525-32-863456A1 | HOSE ASSEMBLY Thermo Housing to Circulating Pump | 1 | ||
| 5 | 0000 | OEM: 525-863841T | TUBE Water Brass | (Compact Hydralic Steering) | 1 | |
| 6 | 0032 | 865672079 | HOSE (96.00 Inches Bulk) Sea Water Pump to Water Pick Up | 1 | ||
| 7 | 0032 | OEM: 525-32-863458 | HOSE Thermosat Housing to Port Manifold | 1 | ||
| 8 | 0032 | OEM: 525-32-863858 | HOSE Thermosat Housing to Starboard Manifold | 1 | ||
| 9 | 0032 | OEM: 525-32-807661 | HOSE Transom to Power Steering Cooler | 1 | ||
| 10 | 0032 | OEM: 525-32-863781 | HOSE Fuel Cooler to Water Distribution Housing | 1 | ||
| 11 | 0022 | OEM: 525-22-864621A1 | FITTING ASSEMBLY Lower Distribution | 1 | ||
| 12 | 0025 | OEM: 525-25-627021 | O-RING (.301 x .070) | 2 | ||
| 13 | 0032 | OEM: 525-32-863490 | HOSE Water Drain Accumulator to Distribution Fitting | 1 | ||
| 14 | 0032 | OEM: 525-32-863491 | HOSE Distribution Fitting to "Y" Fitting | 1 | ||
| 15 | 0032 | 4285069 | HOSE (44.00 Inches Bulk) Starboard Manifold to Distribution Fitting | (Cut to 22 Inch Length) | 1 | |
| 16 | 0032 | 4285069 | HOSE (44.00 Inches Bulk) Port Manifold to Distribution Fitting | (Cut to 29 Inch Length) | 1 | |
| 17 | 0032 | 8623175 | HOSE Cylinder Block Drain to Distribution Fitting | (Port-23 Inch) (Starboard- 17 Inch) | 2 | |
| 18 | 0022 | OEM: 525-22-862225 | FITTING Pushlock | 2 | ||
| 19 | 0032 | OEM: 525-32-863465 | HOSE Drain Accumulator to Tee Fitting | 1 | ||
| 20 | 0022 | OEM: 525-22-863464 | FITTING Tee | (Bravo Only) | 1 | |
| 20 | 0022 | 863464A1 | FITTING ASSEMBLY Tee | 1 | ||
| NS | 0023 | OEM: 525-23-864327 | BUSHING Orifice | (Alpha Only) | 1 | |
| NS | 0025 | OEM: 525-25-864353 | O-RING | (Alpha Only) | 1 | |
| 21 | 0032 | OEM: 525-32-864560 | HOSE Tee Fitting to Port Elbow | (Without Riser) | 1 | |
| 21 | 0032 | OEM: 525-32-864962 | HOSE T Tee Fitting to Port Elbow | (With Riser) | 1 | |
| 22 | 0032 | OEM: 525-32-864711 | HOSE T Tee Fitting to Starboard Elbow | (Without Riser) | 1 | |
| 22 | 0032 | OEM: 525-32-864963 | HOSE T Tee Fitting to Starboard Elbow | (With Riser) | ||
| 23 | 0032 | OEM: 525-32-863611 | HOSE Sea Water Pump to Power Steering Cooler | (Cut To Length) | 1 | |
| 24 | 0054 | OEM: 525-54-815504212 | CLAMP Worm Gear Hose | 2 | ||
| 25 | 0054 | OEM: 525-54-815504216 | CLAMP Worm Gear (1.56 Diameter) Hose | AR | ||
| 26 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) Hose | AR | ||
| 27 | 0054 | OEM: 525-54-815504228 | CLAMP Worm Gear Hose | 1 | ||
| 28 | 0054 | OEM: 525-54-815504232 | CLAMP Worm Gear (2.50 Diameter) Hose | AR | ||
| 29 | 0022 | OEM: 525-22-862603 | FITTING Male Quick Connector (Threaded) | 2 | ||
| 30 | 0054 | OEM: 525-54-815504220 | CLAMP Worm Gear | 3 | ||
| 31 | 0032 | OEM: 525-32-865672013 | HOSE (4.00 Inches) | 1 | ||
| 32 | 0022 | OEM: 525-22-865362 | QUICK CONNECT | 1 | ||
| 33 | 0022 | OEM: 525-22-865324 | QUICK CONNECT | 2 | ||
| NS | 0019 | 8079923 | COVER Hose Clamp End | AR |
