4.3L MPI ALPHA-BRAVO - 1A063240 and Up - Pistons and Connecting Rods
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A02) Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit (98634A20)
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket Alpha
- Shift Bracket Bravo
- Standard Cooling System Seven Point Drain
- Standard Cooling System Single and Three Point Drain
- Starter Motor
- Steering Components
- Thermostat and Housing 7 Point Drain
- Thermostat and Housing Single and 3 Point Drain
- Throttle Body
- Water Distribution Housing
- Water Drain Air Manifold and Pump

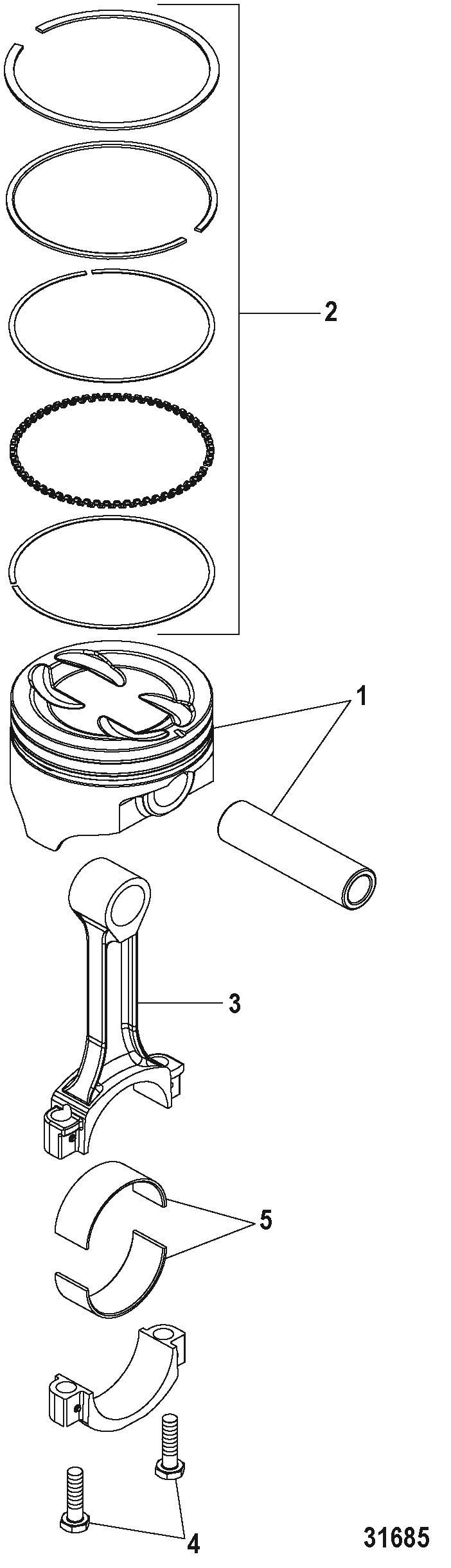

Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
---|---|---|---|---|---|---|
1 | 735 | OEM: 525-735-835001T | PISTON ASSEMBLY | (Standard) | 6 | [1] |
1 | 735 | OEM: 525-735-835002T | PISTON ASSEMBLY | (.5MM Oversize) | AR | |
2 | 0039 | OEM: 525-39-8018611 | RING SET Piston | (Standard) | 6 | [1] |
2 | 0039 | OEM: 525-39-835000 | RING SET Piston | (.5MM Oversize) | AR | |
3 | 614 | OEM: 525-614-811839T02 | CONNECTING ROD ASSEMBLY | 6 | [1] | |
4 | 0011 | OEM: 525-11-879194372 | SCREW | 12 | ||
5 | 0023 | OEM: 525-23-11992001, Sierra: 676-18-1327 | BEARING ASSEMBLY (Pair-Standard) | 1 | [1] | |
5 | 0023 | OEM: 525-23-11993 | BEARING | (Pair- .001 Undersize) | AR | |
5 | 0023 | OEM: 525-23-811858001, Sierra: 676-18-1337 | BEARING | (Pair- .010 Undersize) | AR | |
5 | 0023 | OEM: 525-23-811859 | BEARING | (Pair- .020 Undersize) | AR | |
- | 0000 | 879150A31 | LONG BLOCK (4.3L) | 1 | [2] |
PART NOTES:
[1] - Component of Long Block Assembly- 879150A31
[2] - Alternate part numbers:
879150A31QS
879150R31Reman
8M0150280Reman
