502 EFI (Gen 5) GM V-8 1993-1995 - Serial 0D840650 Thru 0F802599 - Cylinder Head And Rocker Cover

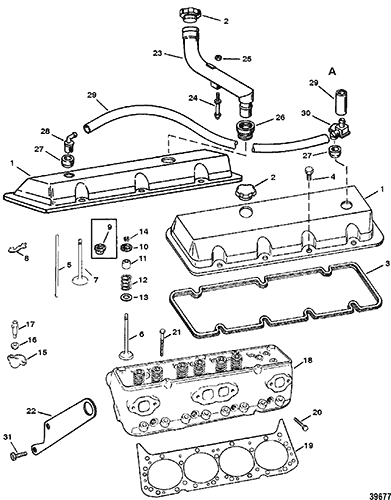

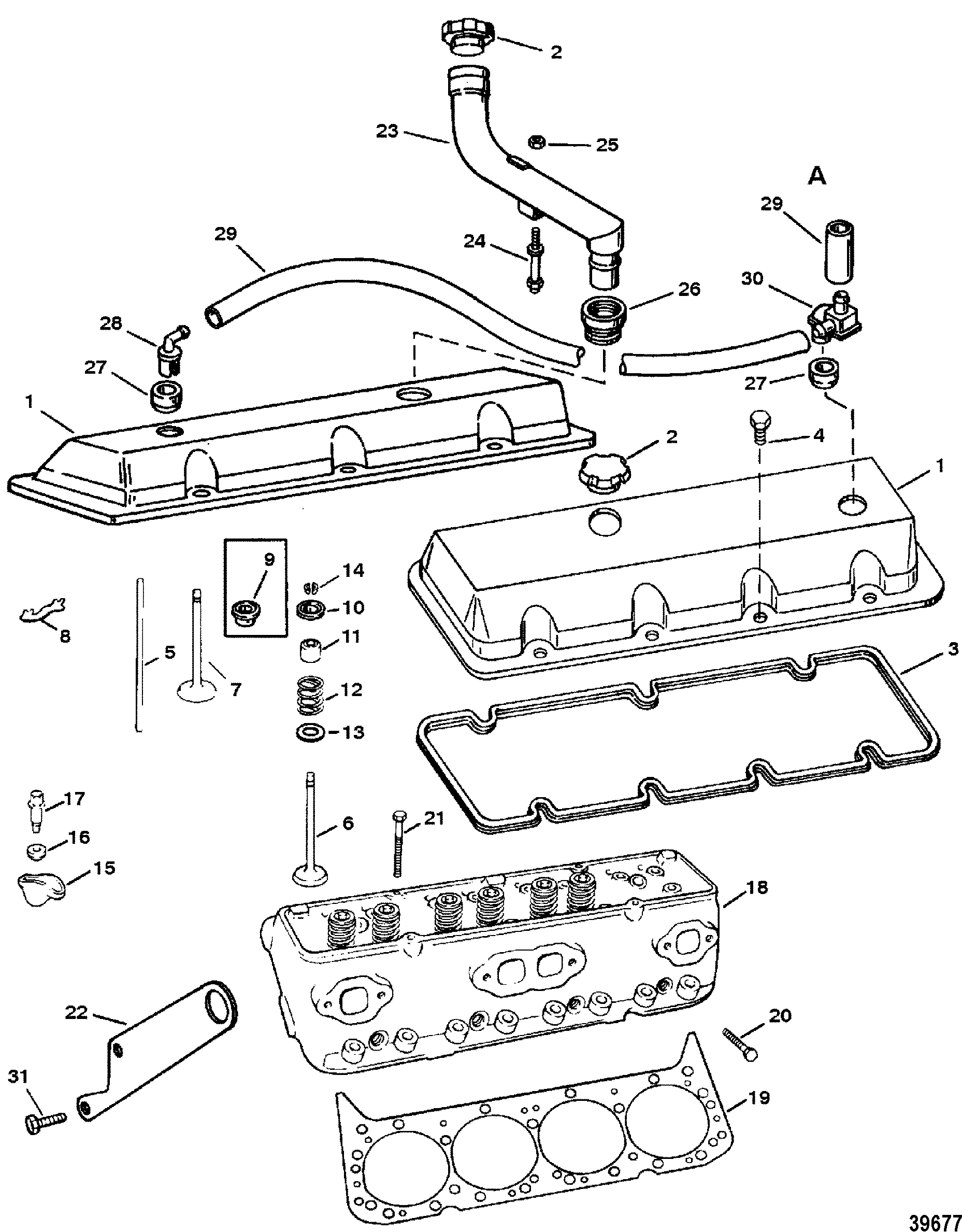

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor (454)
- Oil Filter And Adaptor (502) (F114528 and Below)
- Oil Filter And Adaptor (502) (F114529 and Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Starter Motor (3-1-2" Diameter End Cap)
- Starter Motor (PG260 - 2-7-8" Diameter End Cap)
- Starter Motor And Alternator
- Steering Components
- Thermostat Housing(Standard Cooling)
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Vapor Separator Tank And Fuel Rail, Sn and Below (See Note)
- Vapor Separator Tank and Fuel Rail, Sn and Up (See Note)
- Vapor Separator Tank, Sn and Below (See Note)
- Vapor Separator Tank, Sn and Up (See Note)
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 850462 | ROCKER COVER | 2 | 811587 | |||||
| 2 | 36-811569 | CAP, Oil Tank | 2 | ||||||
| 3 | 27-811588 | GASKET, Rocker Cover | 2 | 3,4 | |||||
| 4 | 10-811589 | BOLT | 14 | ||||||
| 5 | 811581 | PUSH ROD | 8 | (INTAKE) | |||||
| 5 | 811582 | PUSH ROD | 8 | This Part is No Longer Available (EXHAUST) | |||||
| 6 | 816962 | VALVE, Exhaust | 8 | (STANDARD) | |||||
| 6 | 816963T | VALVE, Exhaust | AR | 816963 | This Part is No Longer Available (.015 O.S.) 5 | ||||
| 7 | 801877 | VALVE, Intake | 8 | (STANDARD) | |||||
| 7 | 801878 | VALVE, Intake | AR | This Part is No Longer Available (.015 O.S.) 5 | |||||
| 8 | 845707 | GUIDE | 8 | 811586 | |||||
| 9 | 827644A1 | CAP AND SHIELD | 16 | 19325 | ONE PIECE DESIGN 3,4 | ||||
| 10 | 827644A1 | CAP ASSEMBLY, Valve | 16 | TWO PIECE DESIGN | |||||
| 11 | 26-827645 | SEAL, Valve | 16 | TWO PIECE DESIGN | |||||
| 12 | 24-801879T | SPRING, Valve | 16 | 24-801879 | |||||
| 13 | 15-845669 | SHIM, Valve Spring (.015) | 16 | 15-54531 | |||||
| 14 | 28-54530 | KEY | 32 | ||||||
| 15 | 811591T | ARM, Rocker | 16 | 811591 | |||||
| 16 | 850472 | BALL, Rocker Arm | 16 | 811592 | |||||
| 17 | 10-811593 | BOLT, Rocker Arm | 16 | ||||||
| 18 | 938-883493R1 | CYLINDER HEAD | 2 | 938-811529 | (3/8-16 THREADS) | ||||
| 18 | 938-883493R1 | CYLINDER HEAD ASSEMBLY | 2 | 938-827495 | (7/16-14 THREADS) | ||||
| 19 | 879150141 | GASKET | 2 | 27-811547 | (454 MAGNUM) 3 | ||||
| 19 | 879150139 | GASKET, Cylinder Head | 2 | 27-811546 | (502 MAGNUM) 4 | ||||
| 20 | 10-8M0000463 | BOLT, (2.00 Inch) | 8 | 10-49106 | |||||
| 21 | 10-8M0000482 | BOLT, (4.125 Inch) | 24 | 10-49105 | |||||
| 22 | 805442T1 | BRACKET, Lifting Eye (FRONT) | 1 | This Part is No Longer Available | |||||
| 23 | 36-805621A1 | TUBE, Oil Fill | 1 | This Part is No Longer Available | |||||
| 24 | 16-805706 | STUD | 1 | ||||||
| 25 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 26 | 26-805622 | GROMMET | 1 | ||||||
| 27 | 25-811553 | GROMMET | 2 | ||||||
| 28 | 97850T | ELBOW, 90 Degree, Breather | 1 | 97850 | |||||
| 29 | 32-805933 | BREATHER HOSE | 2 | This Part is No Longer Available | |||||
| 30 | 805558A2 | BAFFLE ASSEMBLY, Breather | 1 | This Part is No Longer Available | |||||
| 31 | 10-865982005 | SCREW, (.375-16 x 1.00) | 2 | 10-12244 | |||||
| 31 | 10-47461 | SCREW, (.437-14 x 1.00) | 2 | ||||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454 MAGNUM) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502 MAGNUM) |
