502 Mag MPI Bravo (Gen 6) GM V-8 1998 - Serial 0L017000 Thru 0L085432 - Thermostat Housing and Hoses

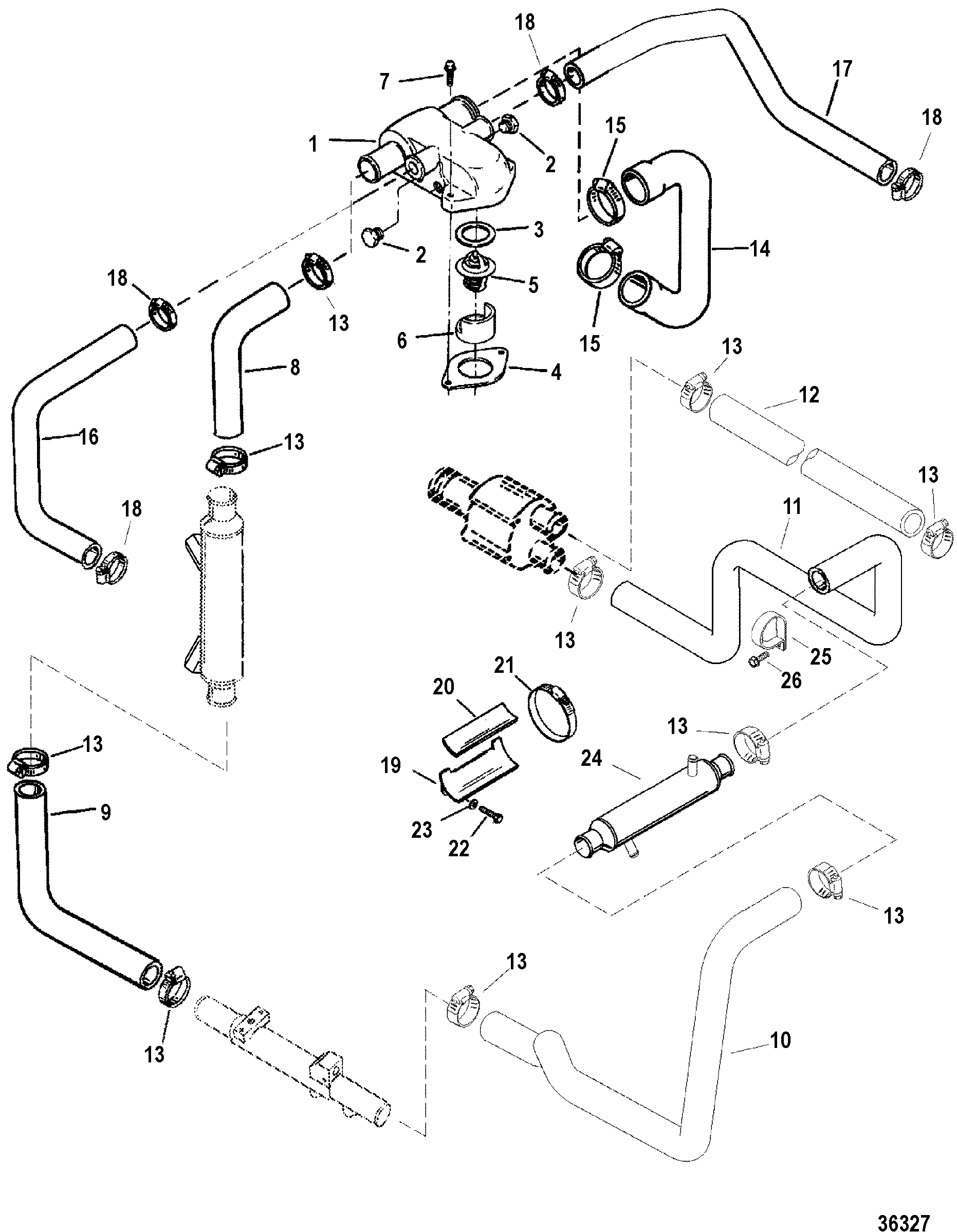

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Starter (Mando)
- Closed Cooling System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Block, Off Plate
- Exhaust Manifold And Exhaust Elbow
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Fuel Rail Assembly
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | SEI # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806235A1 | HOUSING ASSEMBLY, Thermostat | 1 | ||||||
| 2 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 2 | |||||
| 3 | 27-806871 | GASKET, Thermostat | 1 | 1,2 | |||||
| 4 | 27-530451 | GASKET, Thermostat Housing | 1 | 1,2 | |||||
| 5 | 807252T2 | 676-9-43002 | 700-13100 | THERMOSTAT, 71°C (160°F) | 1 | 8072522 | |||
| 6 | 23-806922 | SLEEVE | 1 | ||||||
| 7 | 10-98794 | 602-98-102-35 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 2 | ||
| 8 | 32-807407 | 676-9-44075 | HOSE, Thermostat Housing. to Engine Oil Cooler | 1 | |||||
| 9 | 32-807989 | HOSE, Cooler to Cooler | 1 | (USE WITH 10 IN. ENGINE OIL COOLER) No longer made, limited availability | |||||
| 9 | 32-8074061 | HOSE, Cooler to Cooler | 1 | (USE WITH 13 IN. ENGINE OIL COOLER) . | |||||
| 10 | 32-808045 | 676-9-44094 | HOSE, Fuel Cooler to Power Steering Oil Cooler | 1 | |||||
| 11 | 32-808044 | HOSE, Molded, Power Steering Oil Cooler to Sea Water Pump | 1 | ||||||
| 12 | 32-865672079 | HOSE, (96.00 Inches Bulk), Sea Water Pump to Transom | 1 | 32-1743579 | |||||
| 13 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 10 | ||||||
| 14 | 32-897181 | HOSE, Thermostat Housing to Water Pump | 1 | ||||||
| 15 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 16 | 32-897491 | HOSE | 1 | Thermostat Housing to Port Exhaust Manifold | |||||
| 17 | 32-807201 | 676-9-44087 | HOSE | 1 | Thermostat Housing to Starboard Exhaust Manifold | ||||
| 18 | 54-815504220 | CLAMP, Worm Gear | 4 | ||||||
| 19 | 805546A2 | BRACKET, Transmission Oil Cooler | 1 | ||||||
| 20 | 772233 | PAD | 1 | ||||||
| 21 | 54-815504224 | CLAMP, Worm Gear | 1 | ||||||
| 22 | 10-86750 | SCREW, (.312-18 x .620) | 1 | ||||||
| 23 | 12-20572 | WASHER, (.390 x .750 x .093) | 1 | ||||||
| 24 | <861554T01 | COOLER, Power Steering Oil | 1 | 807292T | |||||
| 25 | 54-47715 | CLIP | 1 | ||||||
| 26 | 10-35765A1 | SCREW AND LOCKWASHER, (.312-18 x .625) | 1 |
