502 Mag Bravo (Gen 4) GM V-8 1990-1992 - Serial 0C878221 Thru 0D824588 - Crankshaft, Pistons And Conn. Rods

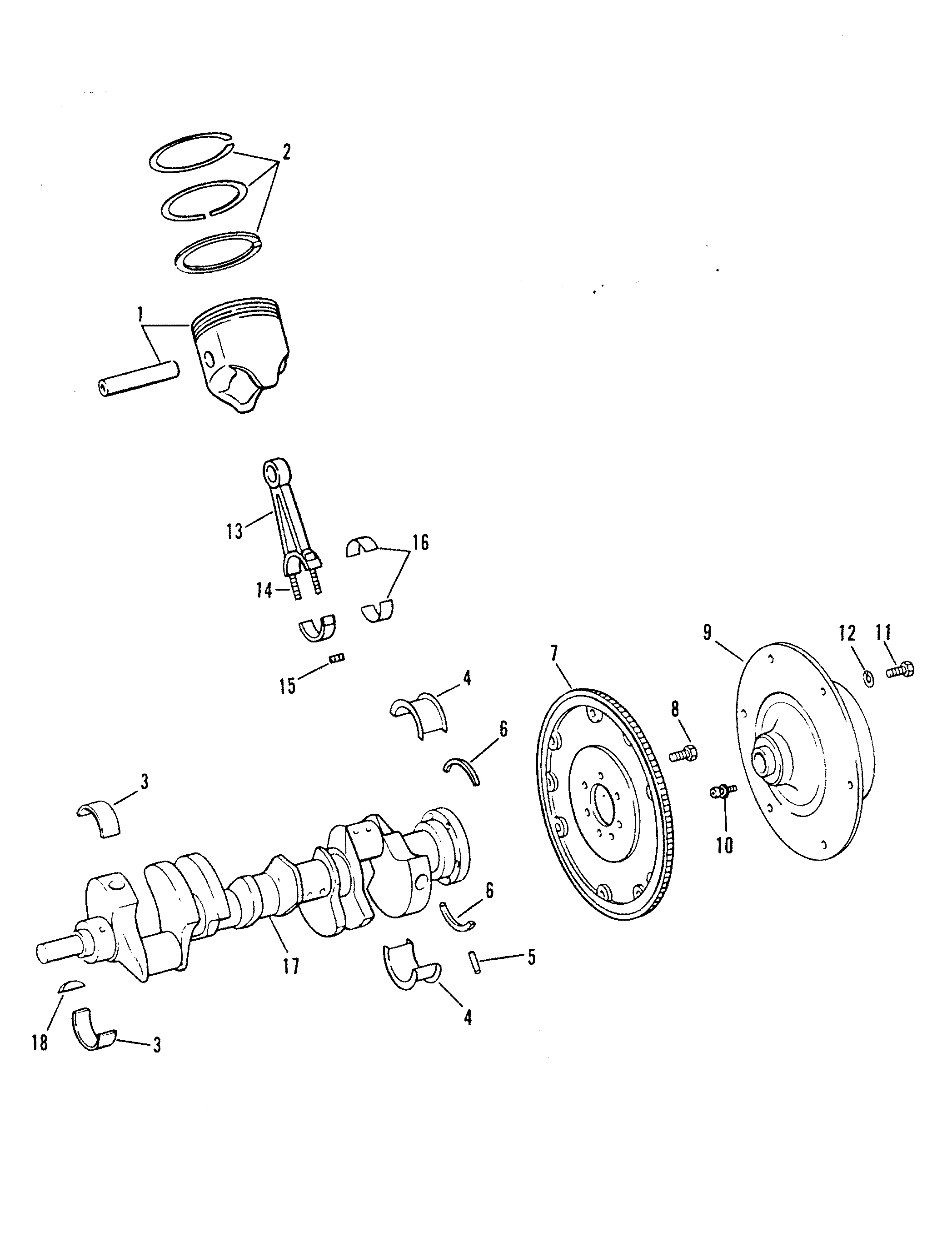

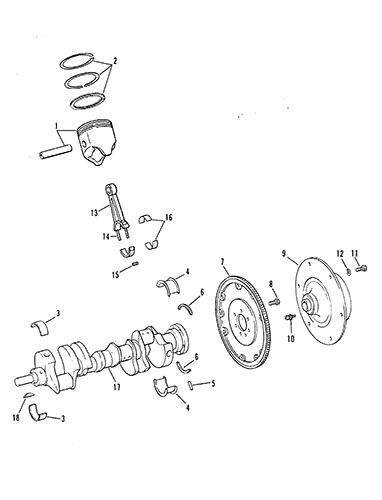

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite) 8EM2003KA
- Audio Warning System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Cast Iron)
- Exhaust Manifold And Exhaust Elbow (Stainless Steel)
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 737-827664 | PISTON & PISTON PIN (STANDARD) | 8 | 737-821090 | 3 = [27-811207A90] GASKET SET , ENGINE OVERHAUL | ||||
| 1 | 737-827665A1 | PISTON & PISTON PIN (.032 O.S.) | AR | 737-817412 | This Part is No Longer Available No longer made, limited availability | ||||
| 2 | 39-827660T | PISTON RING (STANDARD) | 8 | 39-821091 | |||||
| 2 | 737-827665A1 | PISTON RING (.032 O.S.) | AR | 39-817413 | This Part is No Longer Available No longer made, limited availability | ||||
| 3/4 | 23-818473001 | BEARING SET (STANDARD) | 1 | 23-818473 | |||||
| 3/4 | 23-818474 | BEARING SET (.001 U.S.) | AR | ||||||
| 3/4 | 23-818475 | BEARING SET (.002 U.S.) | AR | ||||||
| 3/4 | 818476001 | BEARING SET (.010 U.S.) | AR | 23-818476 | |||||
| 3/4 | 23-818477 | BEARING SET (.020 U.S.) | AR | ||||||
| 5 | 17-843378 | DOWEL PIN (1.4" DIA.) | 1 | 17-35312 | |||||
| 6 | 26-14756 | OIL SEAL | 1 | 3 | |||||
| 7 | 230-6540 | FLYWHEEL | 1 | ||||||
| 8 | 10-845757 | SCREW | 6 | 10-49845 | |||||
| 9 | 861523A9 | ENGINE COUPLING ASSEMBLY | 1 | 18311A2 | |||||
| 10 | 22-49099 | GREASE FITTING | 2 | ||||||
| 11 | 10-14883 | SCREW | 6 | ||||||
| 12 | 12-20572 | WASHER | 6 | ||||||
| 13 | 614-9641T | CONNECTING ROD | 8 | 614-9641 | |||||
| 14 | 10-19234 | BOLT | 16 | ||||||
| 15 | 11-58056 | NUT | 16 | No longer made, limited availability | |||||
| 16 | 23-85726001 | BEARING UNIT (STANDARD) | 8 | 23-85726 | |||||
| 16 | 23-85727 | BEARING UNIT (.001 U.S.) | AR | ||||||
| 16 | 23-85728 | BEARING UNIT (.002 U.S.) | AR | This Part is No Longer Available | |||||
| 16 | 23-85691 | BEARING UNIT (.010 U.S.) | AR | ||||||
| 16 | 23-85729 | BEARING UNIT (.020 U.S.) | AR | ||||||
| 17 | 429-5880 | CRANKSHAFT | 1 | This Part is No Longer Available | |||||
| 18 | 28-34466 | KEY | 2 |
