502 Mag MPI (Gen 6) GM V-8 1996 - Serial 0F802600 Thru 0K999999 - Cylinder Head And Rocker Cover

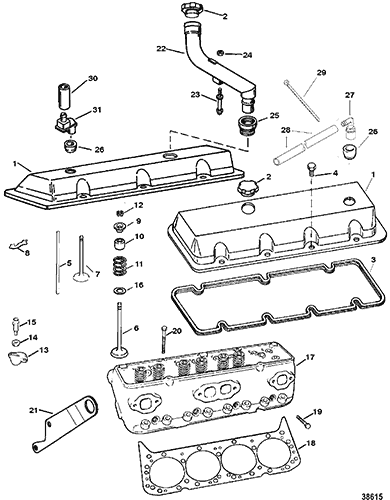

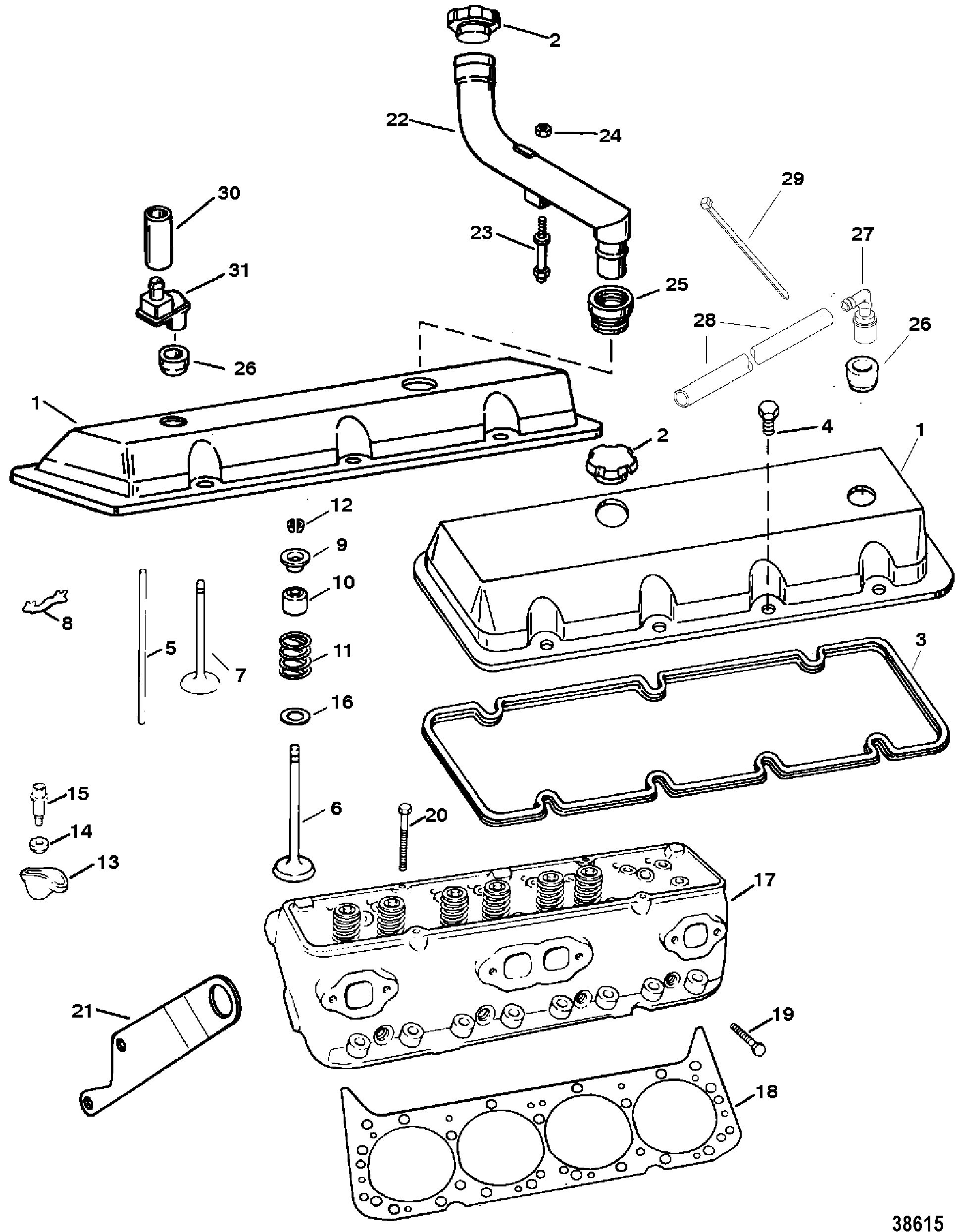

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold And Exhaust Elbow
- Flywheel Housing
- Fuel Filter (Fuel Cooled System) 0K147350 and Up
- Fuel Pump And Filter (VST Fuel System) 0K147349 and Below
- Fuel Pump and Fuel Cooler (Fuel Cooled Sys) 0K147350 and Up
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump (Fuel Cooled System) (0K147350 and Up)
- Sea Water Pump (VST Fuel System) (0K147349 and Below)
- Senders And Harness Bracket
- Shift Bracket
- Starter And Alternator
- Starter Motor (PG260)
- Thermostat Housing (Fuel Cooled System) 0K147349 and Below
- Thermostat Housing (VST Fuel System) 0K147349 and Below
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 850462 | COVER, Rocker | 2 | ||||||
| 2 | 36-811569 | CAP, Oil Tank | 2 | ||||||
| 3 | 27-811588 | GASKET, Rocker Cover | 2 | 1,2 | |||||
| 4 | 10-811589 | BOLT (1/4-20 x 5/8 in.) | 14 | ||||||
| 5 | 852003 | PUSH ROD | 8 | (INTAKE) | |||||
| 5 | 852004 | PUSH ROD | 8 | (EXHAUST) | |||||
| 6 | 816962 | VALVE, Exhaust | 8 | (STANDARD) | |||||
| 6 | 816963T | VALVE, Exhaust | AR | 816963 | This Part is No Longer Available (.015 O.S.) 8 | ||||
| 7 | 801877 | VALVE, Intake | 8 | (STANDARD) | |||||
| 7 | 801878 | VALVE, Intake | 8 | This Part is No Longer Available (.015 O.S.) | |||||
| 8 | 845707 | GUIDE, Push Rod | 8 | 811586 | |||||
| 9 | 827644A1 | CAP ASSEMBLY, Valve | 16 | 1,2 | |||||
| 10 | 26-827645 | SEAL, Valve | 16 | 1,2 | |||||
| 11 | 24-801879T | SPRING, Valve | 16 | 24-801879 | |||||
| 12 | 28-54530 | KEY, Rocker | 32 | ||||||
| 13 | 811591T | ARM, Rocker | 16 | 811591 | |||||
| 14 | 850472 | BALL, Rocker Arm | 16 | ||||||
| 15 | 10-811593 | BOLT, Rocker Arm | 16 | ||||||
| 16 | 15-845669 | SHIM, Valve Spring (.015) | AR | 15-54531 | 8 | ||||
| 17 | 938-883493R1 | CYLINDER HEAD ASSEMBLY, Cylinder | 2 | 938-827495 | |||||
| 18 | 879150141 | GASKET, Cylinder Head | 2 | 27-850470 | (454 MAGNUM) 1 | ||||
| 18 | 879150139 | GASKET, Cylinder Head | 2 | 27-811546 | (502 MAGNUM) 2 | ||||
| 19 | 10-8M0000463 | BOLT, (2.00 Inch) | 8 | 10-49106 | |||||
| 20 | 10-8M0000482 | BOLT, (4.125 Inch) | 24 | 10-49105 | |||||
| 21 | 807081T | BRACKET, Lifting Eye (Front) | 1 | ||||||
| 22 | 36-807131T | TUBE, Oil Fill | 1 | This Part is No Longer Available | |||||
| 23 | 16-805706 | STUD | 1 | ||||||
| 24 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 25 | 26-805622 | GROMMET | 1 | ||||||
| 26 | 25-811553 | GROMMET | 2 | ||||||
| 27 | 21-806603 | VALVE, PVC | 1 | ||||||
| 28 | 32-8M0062321 | HOSE, (33.00 Inches Bulk) | 1 | 32-80617463 | |||||
| 29 | 54-816311T | 700-21465 | TIE STRAP, (8.00 Inches) | 2 | 54-816311 | ||||
| 30 | 32-8M0062669 | TUBING, (24.00 Inches Bulk), Vent | 1 | 32-807498240 | (USE WITH METAL FLAME ARRESTOR) | ||||
| 30 | 32-1589424 | HOSE, Breather Vent | 1 | 32-1589418 | (USE WITH PLASTIC FLAME ARRESTOR) | ||||
| 31 | 807925A2 | BAFFLE, Breather | 1 | This Part is No Longer Available | |||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502) |
