454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Flywheel Housing

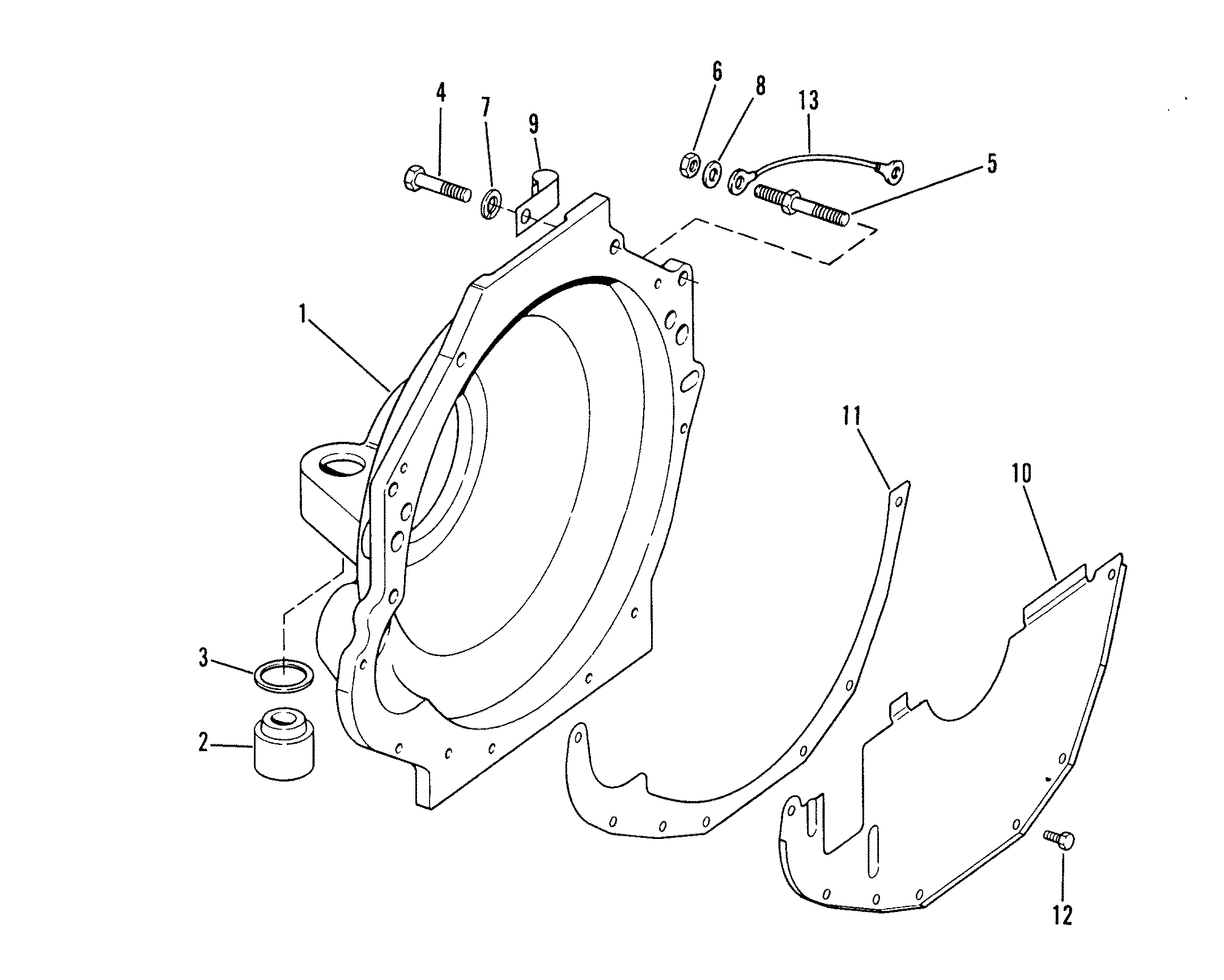

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8MR2039K
- Alternator (Prestolite) Prestolite 8EM2003KA
- Audio Waring System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow Cast Iron Exhaust Elbow
- Exhaust Manifold And Exhaust Elbow Stainless Steel
- Exhaust Plate
- Flame Arrestor New Design
- Flame Arrestor Old Design
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Muffler Kit
- Oil Filter And Adaptor
- Oil Pan And Oil Pump Castoil Pan
- Oil Pan And Oil Pump Stamped Oil Pan
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 12"
- Starter Motor Delco Remy 9000762 8"
- Thermostat Housing New Design
- Thermostat Housing Old Design
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865657A04 | FLYWHEEL HOUSING | 1 | 12675A7 | 4 = [27-19315A88] GASKET SET, ENGINE OVERHAUL | ||||
| 2 | 865330A02 | MOUNT, RUBBER - FLYWHEEL HOUSING | 2 | 88791 | |||||
| 3 | 23-99322 | SPACER, RUBBER MOUNT - FLYWHEEL HOUSING | 2 | ||||||
| 4 | 10-37612 | SCREW, FLYWHEEL HOUSING ATTACHING (1-1/4") | 4 | ||||||
| 4 | 10-358701 | SCREW, FLYWHEEL HOUSING ATTACHING (2") | 1 | 10-64900 | |||||
| 5 | 16-64066 | STUD, FLYWHEEL HOUSING ATTACHING (2-1/4") | 1 | ||||||
| 6 | 11-32219 | NUT, FLYWHEEL HOUSING ATTACHING STUD | 1 | ||||||
| 7 | 13-35048 | LOCKWASHER, FLYWHEEL HOUSING SCREW (3/8") | 7 | ||||||
| 8 | 12-20572 | WASHER, FLYWHEEL HOUSING SCREW - SPECIAL (3/8") | 1 | ||||||
| 9 | 54-78945 | "J" CLAMP, FLYWHEEL HOUSING STUD | 1 | ||||||
| 9 | 54-92850 | CLAMP | 2 | ||||||
| 10 | 13930A3 | COVER ASSEMBLY (USE WITH 12" STARTER MOTOR) | 1 | This Part is No Longer Available | |||||
| 10 | 807260A2 | COVER ASSEMBLY (USE WITH 8" STARTER MOTOR) | 1 | 812600A2 | |||||
| 11 | 27-96274 | GASKET, FLYWHEEL HOUSING SCREW | 1 | This Part is No Longer Available 4 | |||||
| 12 | 10-32773 | SCREW, COVER TO FLYWHEEL HOUSING | 7 | ||||||
| 13 | 84-62826A6 | WIRE, FLYWHEEL HOUSING STUD | 1 |
