454 Mag Bravo (Gen 5) GM V-8 1992-1994 - Serial 0D805069 Thru 0F304999 - Oil Pan And Oil Pump

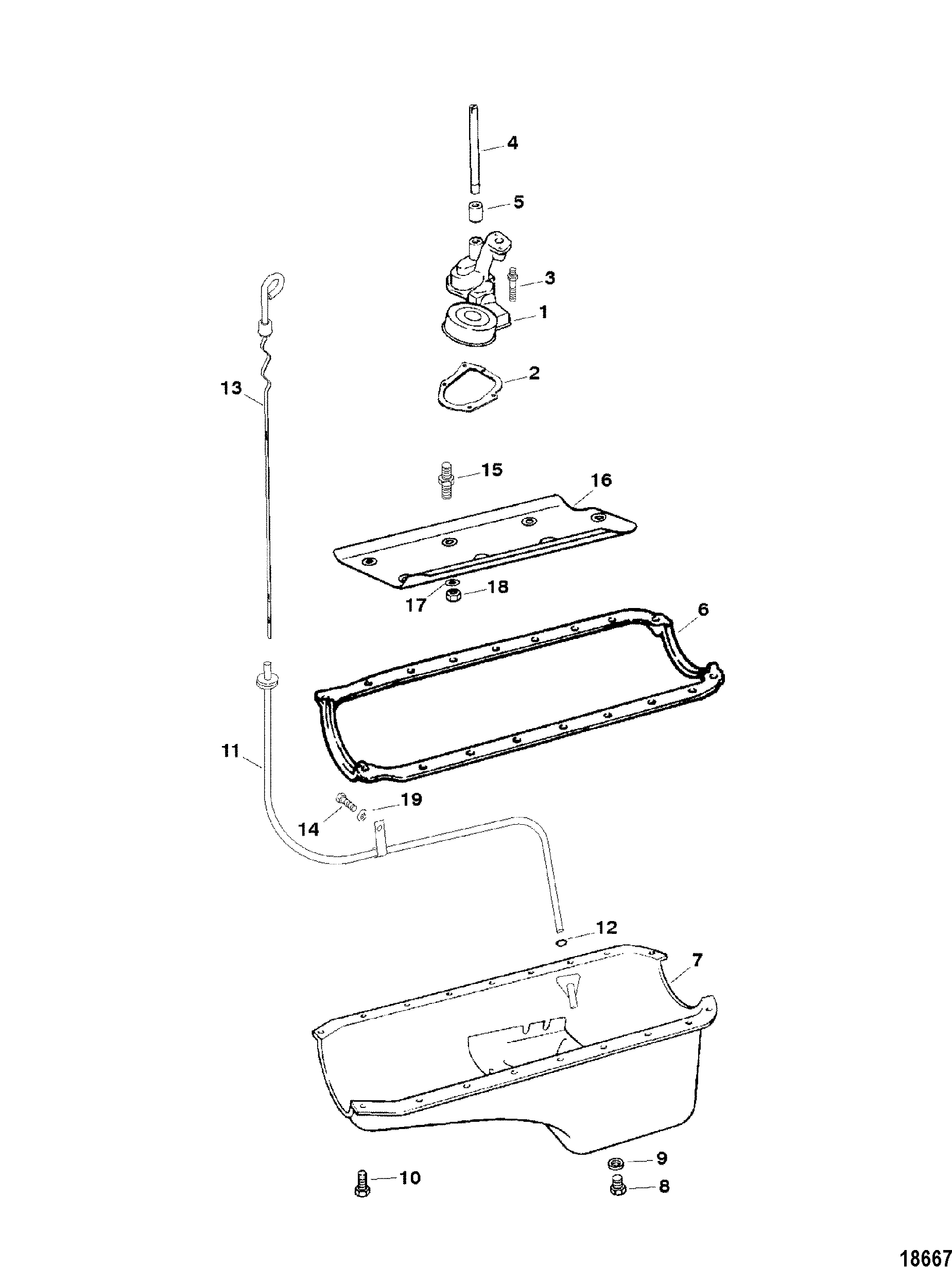

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC155603)
- Alternator (Mando AR-150)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate(454 Magnum)
- Exhaust System(7.4L Bravo)
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor (454 Magnum) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo, 454 Mag.) 0F114760 and Up
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (3-1-4 In. Diameter End Cap)
- Starter Motor (8 In. (Pg 260)2-7-8 In. Diameter End Cap)
- Thermostat Housing (Standard Cooling) 0F305000 and Up
- Thermostat Housing (Standard Cooling) 0F3519999 and Below
- Wiring Harness
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 827643 | PUMP ASSEMBLY, Oil | 1 | |||||
| 2 | NA | NOT AVAILABLE, Not sold with this model | 0 | |||||
| 3 | 10-813071 | SCREW | 1 | No longer made, limited availability | ||||
| 4 | 14761 | SHAFT AND RETAINER | 1 | |||||
| 5 | 23-36183 | RETAINER | 1 | |||||
| 6 | 27-845628 | 676-9-61508 | GASKET | 1 | 27-811566 | 4,5 | ||
| 7 | 845668T | PAN ASSEMBLY | 1 | 811549 | ||||
| 8 | 10-49956 | SCREW, Drain | 1 | |||||
| 9 | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Drain | 1 | 4,5 | ||
| 10 | 10-34500 | SCREW, (.312-18 x .625) | 20 | |||||
| 11 | 818631A6 | TUBE | 1 | 818631A8 | ||||
| 12 | 25-62704 | 676-9-43631 | 700-81090 | O-RING, (.362 x .103) | 1 | 4,5 | ||
| 13 | 861942T9 | DIPSTICK | 1 | 805567T | ||||
| 14 | 10-35366 | SCREW, (.250-20 x .563) | 1 | |||||
| 15 | 16-811683 | STUD, (.375-16/.500-12 x 5.500) | 4 | |||||
| 16 | 843945T | BAFFLE | 1 | 811682 | ||||
| 17 | 12-49112 | WASHER | 4 | This Part is NLA from Mercruiser. | ||||
| 18 | 11-37500 | NUT, (3/8-16) | 4 | |||||
| 19 | NA | NOT AVAILABLE, Not sold with this model | 0 | |||||
| - | 27-811547A92 | GASKET SET, Engine | 1 | (7.4L BRAVO) | ||||
| - | 27-811572A92 | GASKET SET, Overhaul | 1 | This Part is NLA from Mercruiser. (454 MAGNUM) |
