454 Mag Bravo (Gen 5) GM V-8 1996-1997 - Serial 0F801700 Thru 0K999999 - Fuel Pump And Fuel Filter

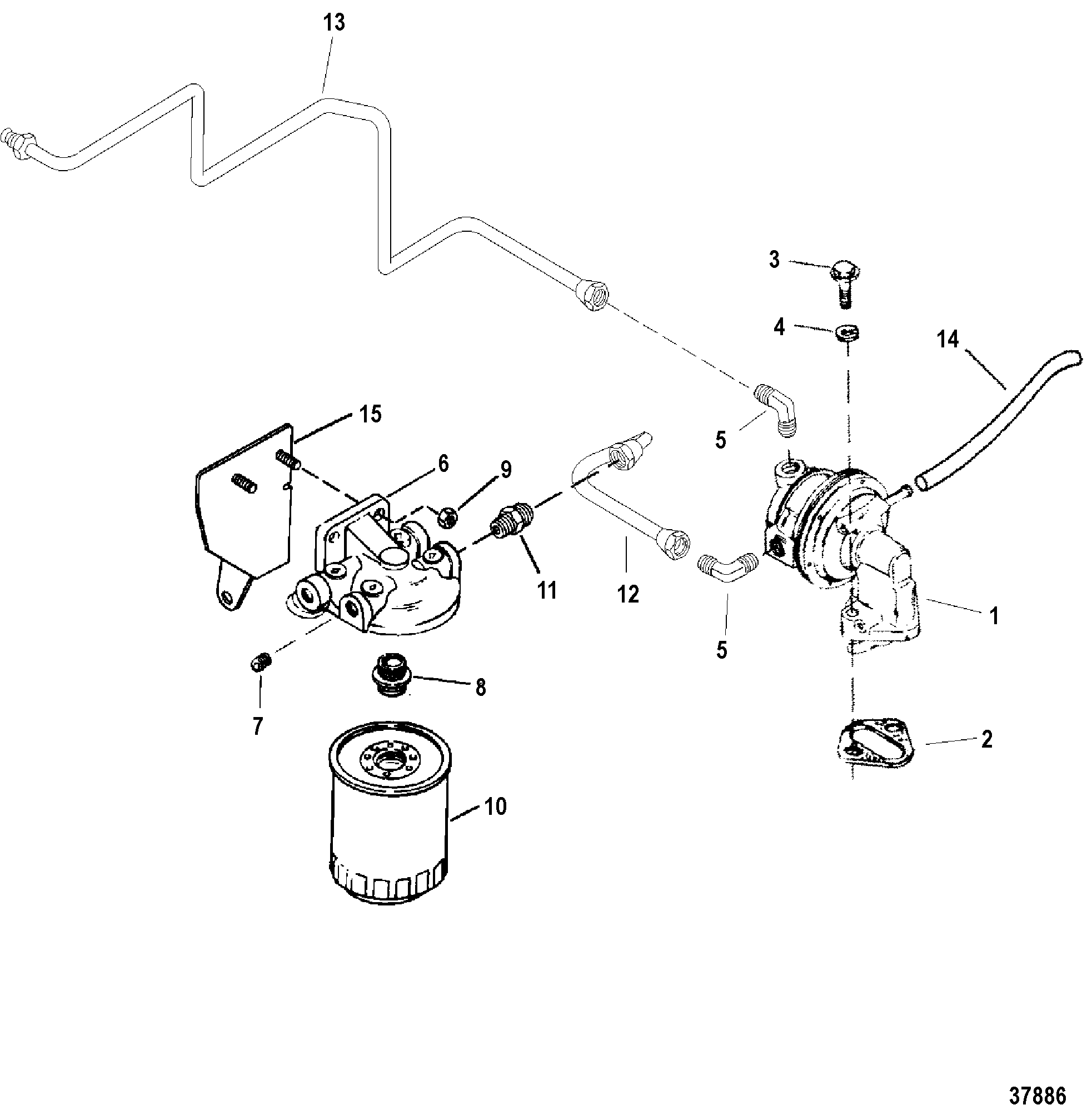

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Carburetor (Weber)
- Carburetor And Flame Arrestor
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (454 Magnum)
- Exhaust Manifold And Exhaust Elbow (7.4L Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing(Standard Cooling)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861677T | PUMP ASSEMBLY, Fuel | 1 | 818383T | ||||
| 2 | 27-34213 | 676-9-61041 | 700-31360 | GASKET, Fuel Pump | 1 | 1,2 | ||
| 3 | 10-34354 | 700-22447 | SCREW, (.375-16 x 1.50) | 2 | ||||
| 4 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 2 | ||||
| 5 | 22-43276 | ELBOW, (90 Degree) (90 Deg.) | 2 | |||||
| 6 | 89876A3 | BASE ASSEMBLY, Fuel Filter/Water Seperator | 1 | |||||
| 7 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 2 | |||||
| 8 | 22-816133 | FITTING | 1 | 22-8161331 | ||||
| 9 | 11-29250 | NUT, (.312-24) | 2 | |||||
| 10 | 35-802893Q01 | FILTER, Fuel/Water Separator | 1 | 35-807172 | ||||
| 11 | 22-42897 | FITTING, Straight | 1 | No longer made, limited availability | ||||
| 12 | 32-805637T | LINE, Fuel (Fuel Filter to Fuel Pump) | 1 | 32-818385T | ||||
| 13 | 32-8183862 | LINE, Fuel (Fuel Pump to Carburetor) | 1 | 32-818386T1 | (7.4L BRAVO) | |||
| 13 | 32-821499T | LINE, Fuel (Fuel Pump to Carburetor) | 1 | (454 MAGNUM) | ||||
| 14 | 32-7381567 | TUBING, (42.00 Inches Bulk), Vent (Fuel Pump to Carburetor) | 1 | |||||
| 15 | 805556T1 | BRACKET | 1 | This Part is NLA from Mercruiser. | ||||
| - | 27-850470A96 | GASKET SET, Overhaul | 1 | (7.4L BRAVO) | ||||
| - | 27-850465A96 | GASKET SET, Overhaul | 1 | (454 MAGNUM) |
