350 Mag MPI Alpha-Bravo - Serial 0W310000 Thru 0W649999 - Electrical Components (Digital Throttle and Shift)

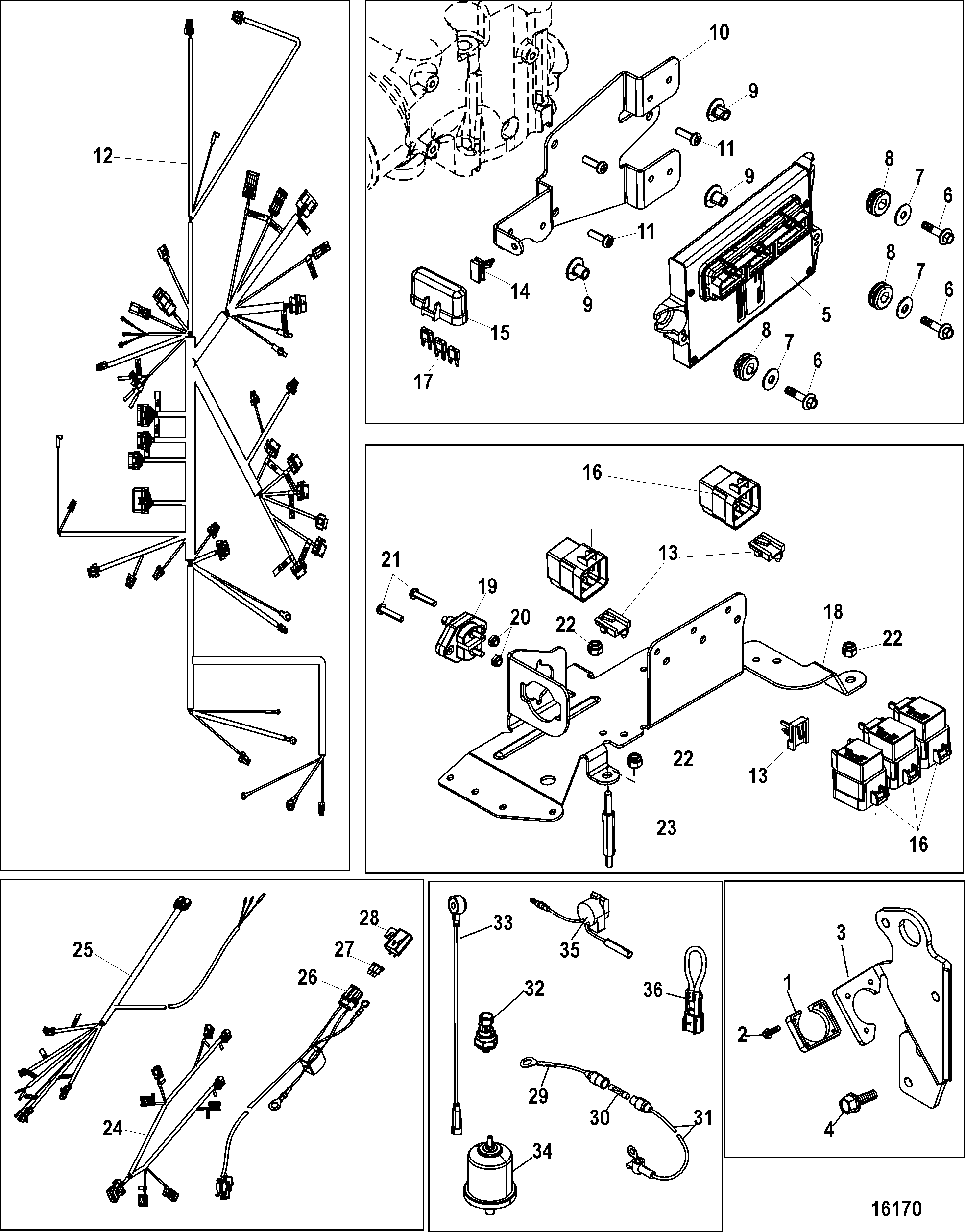

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (ALPHA)
- Closed Cooling System (BRAVO)
- Cylinder Block (Camshaft and Crankshaft)
- Cylinder Block (Flywheel Housing and Rear Main Seal)
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components (Digital Throttle and Shift)
- Electrical Components (Mechanical Throttle and Shift)
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter(Alpha)
- Fuel Supply Module(Alpha)
- Fuel Supply Module, Bravo
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Shift Bracket (Digital Throttle and Shift)
- Standard Cooling System (ALPHA)(7 Point Drain)
- Standard Cooling System (ALPHA)(Single and 3 Point Drain)
- Standard Cooling System (BRAVO)(7 Point Drain)
- Standard Cooling System (BRAVO)(Single and 3 Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body (Digital Throttle and Shift)
- Throttle Body (Mechanical)
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 2 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
| 3 | 865480T | BRACKET, Harness Mounting/Lifting Eye | 1 | ||||||
| 4 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
| 5 | 866236T04 | PCM, Propulsion Control Module | 1 | 866236T01 | (5.0L MPI)(Standard Cooling) | ||||
| 5 | 866237T04 | PCM, Propulsion Control Module | 1 | 866237T01 | (5.0L MPI)(Closed Cooling) | ||||
| 5 | 866238T04 | PCM, Propulsion Control Module | 1 | 866238T01 | (350 MAG.)(Standard Cooling) | ||||
| 5 | 866239T04 | PCM, Propulsion Control Module | 1 | 866239T01 | (350 MAG.)(Closed Cooling) | ||||
| 5 | 866242T06 | PCM, Propulsion Control Module | 1 | 866242T01 | (6.2L)(Standard Cooling) | ||||
| 5 | 866243T05 | PCM, Propulsion Control Module | 1 | 866243T01 | (6.2L)(Closed Cooling) | ||||
| 6 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 7 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 8 | 25-834985 | GROMMET | 3 | ||||||
| 9 | 23-856954 | BUSHING | 3 | ||||||
| 10 | 865479T01 | BRACKET, ECM Mount | 1 | ||||||
| 11 | 10-860008 | SCREW, (.250-20 x .625) Torx | 3 | ||||||
| 12 | 84-865980T02 | HARNESS ASSEMBLY, Main Engine | 1 | (Digital Throttle and Shift) | |||||
| 13 | 86-865205 | CLIP, Relay Mounting | 2 | 54-804351 | |||||
| 14 | 54-804352 | CLIP, Fuse Block Mounting | 1 | ||||||
| 15 | 883562 | COVER, Fuse | 1 | ||||||
| 16 | 882751 | RELAY | 6 | ||||||
| 17 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 88-83296920 | |||||
| 18 | 865483T | BRACKET, Circuit Breaker and Relays | 1 | ||||||
| 19 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-865827T | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 20 | 11-29488 | 700-21163 | NUT, (#10-32) | 2 | No longer made, limited availability | ||||
| 21 | 10-830861 | SCREW, (#8-32 x .625) | 2 | ||||||
| 22 | 11-401366 | NUT, (M6) Stainless Steel | 3 | ||||||
| 23 | 16-863439 | STUD | 1 | ||||||
| 24 | 84-865983T01 | HARNESS ASSEMBLY, Injectors | 1 | ||||||
| 25 | 84-865677T01 | HARNESS ASSEMBLY, Transom | 1 | ||||||
| 26 | 84-888416T04 | HARNESS ASSEMBLY, Clean Power | 1 | 84-888416T03 | |||||
| 27 | 862646 | FUSE, Tan - 5 Ampere | 1 | ||||||
| 28 | 828054 | COVER, Fuse | 1 | ||||||
| 29 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | (Bravo) | |||||
| 30 | 88-79091 | FUSE, 20 Ampere | 1 | (Bravo) | |||||
| 31 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | 1 | (Bravo) | |||||
| 32 | 8M6000623 | SENSOR, Pressure | 1 | 8818793 | ( Power Steering Cooler ) | ||||
| 32 | 881879T11 | SENSOR, (0 - 100 PSI), Pressure | 1 | 881879A6 | ( Oil ) | ||||
| 33 | 878187 | SENSOR ASSEMBLY, Knock | 2 | ||||||
| 34 | 8M0068784 | SENDER ASSEMBLY, Oil | 1 | 87-815425T | |||||
| 34 | 37293T | SENDER ASSEMBLY, Oil | 1 | (Dual Station) | |||||
| 35 | 816492A15 | ALARM KIT | 1 | ||||||
| 36 | 864337A1 | CONNECTOR, Black, Jumper | 1 | (Black Wire) |
