350 Mag MPI Alpha-Bravo - Serial 0W650000 Thru 1A299999 - Gasket Set Components (27-861246A05), Engine Overhaul

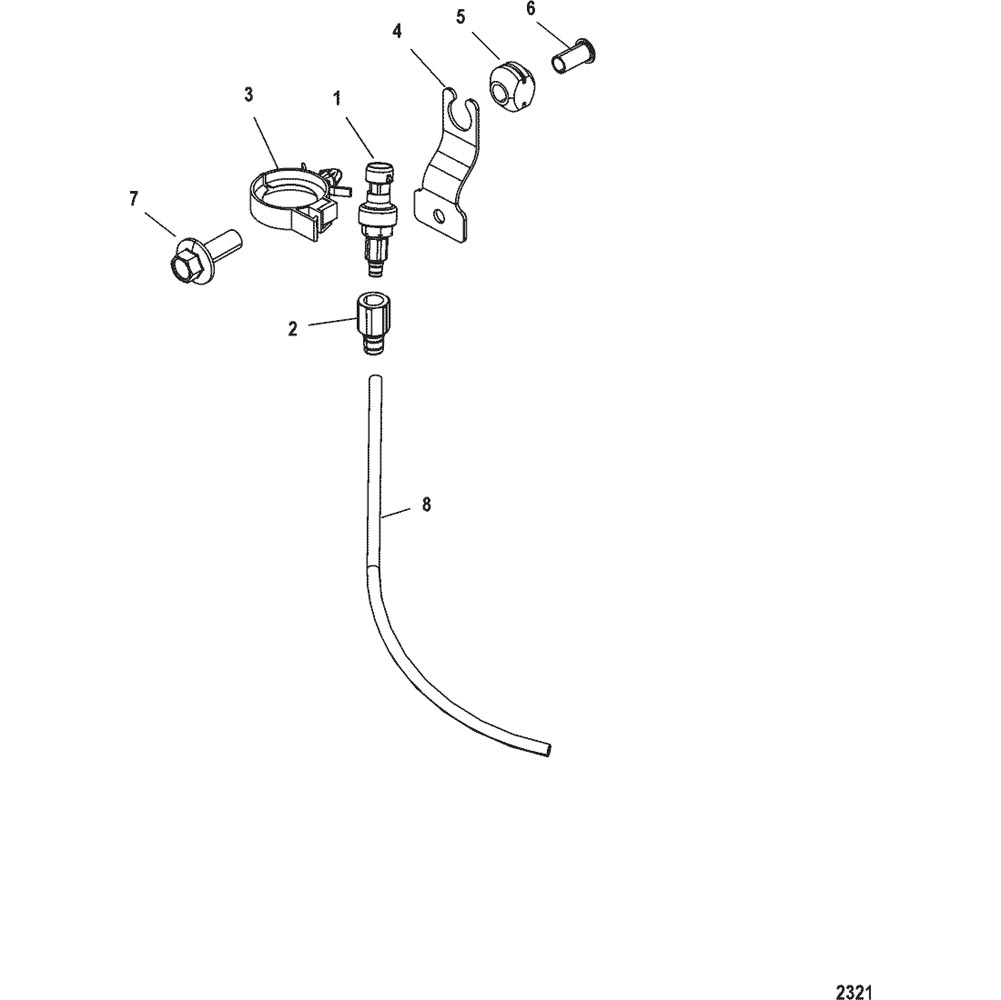

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System - ALPHA
- Closed Cooling System - BRAVO
- Cylinder Block (Camshaft and Crankshaft)
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components (Digital Throttle and Shift)
- Electrical Components (Mechanical Throttle and Shift)
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Supply Module, Alpha
- Fuel Supply Module, Bravo
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System - ALPHA, 7 Point Drain
- Standard Cooling System - ALPHA, Single and 3 Point Drain
- Standard Cooling System - BRAVO, 7 Point Drain
- Standard Cooling System - BRAVO, Single and 3 Point Drain
- Starter Motor
- Steering Components
- Thermostat and Housing, 7 Point Drain
- Thermostat and Housing, Single and 3 Point Drain
- Throttle Body (Digital Throttle and Shift)
- Throttle Body (Mechanical)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 27-861246A05 | GASKET SET, Engine Overhaul | 1 | ||||||
| - | 27-138651 | 676-9-61504 | GASKET, Oil Pan | 1 | |||||
| - | 75611001 | GASKET, Cylinder Head | 2 | 27-756111 | |||||
| - | 27-33395 | GASKET, Exhaust Manifold | 2 | ||||||
| - | 27-17467 | 676-9-61305 | 700-30357 | GASKET, Rocker Cover | 2 | ||||
| - | 27-866027 | GASKET | 1 | Carburated Models Only | |||||
| - | 27-8079821 | GASKET | 1 | ||||||
| - | 27-806640 | GASKET | 1 | ||||||
| - | 27-861246 | GASKET | 1 | ||||||
| - | 27-91892 | GASKET, Oil Filter | 1 | Not Applicable in All Models | |||||
| - | 27-34897 | 676-9-60065 | 700-31380 | GASKET, Water Pump | 2 | ||||
| - | 27-881715 | GASKET, Crankshaft Oil Seal Housing | 1 | ||||||
| - | 27-530451 | GASKET, Lower Thermostat Housing | 1 | ||||||
| - | 27-806871 | GASKET, Thermostat Housing | 1 | ||||||
| - | 27-344863 | GASKET, Distributor | 1 | ||||||
| - | 27-34898 | 676-9-61042 | 700-32750 | GASKET | 1 | ||||
| - | 27-8M0077608 | GASKET, Drain | 2 | 27-49955 | |||||
| - | 26-42077 | SEAL, Oil Filter | 2 | Not Applicable in All Models | |||||
| - | 26-976641 | SEAL, Intake valve | 8 | ||||||
| - | 26-804507 | SEAL, Exhaust Valve | 8 | ||||||
| - | 25-8071341 | SEAL, Thermostat | 1 | ||||||
| - | 25-32509 | O-RING, (.489 x .070) | 5 | ||||||
| - | 25-805063 | O-RING, (.301 x .070) | 6 | ||||||
| - | 25-805062 | O-RING, (.530 x .082) | 1 | ||||||
| - | 26-806655 | SEAL | 1 | ||||||
| - | 26-806706 | SEAL | 1 | ||||||
| - | 26-852941 | SEAL, Crankshaft Oil | 1 | ||||||
| - | 27-807473A1 | 676-9-61213 | GASKET SET, Intake Manifold | 1 |
