350 Mag MPI Alpha-Bravo - Serial 1A300000 Thru 1A611927 - Standard Cooling System - BRAVO, Single and 3 Point Drain

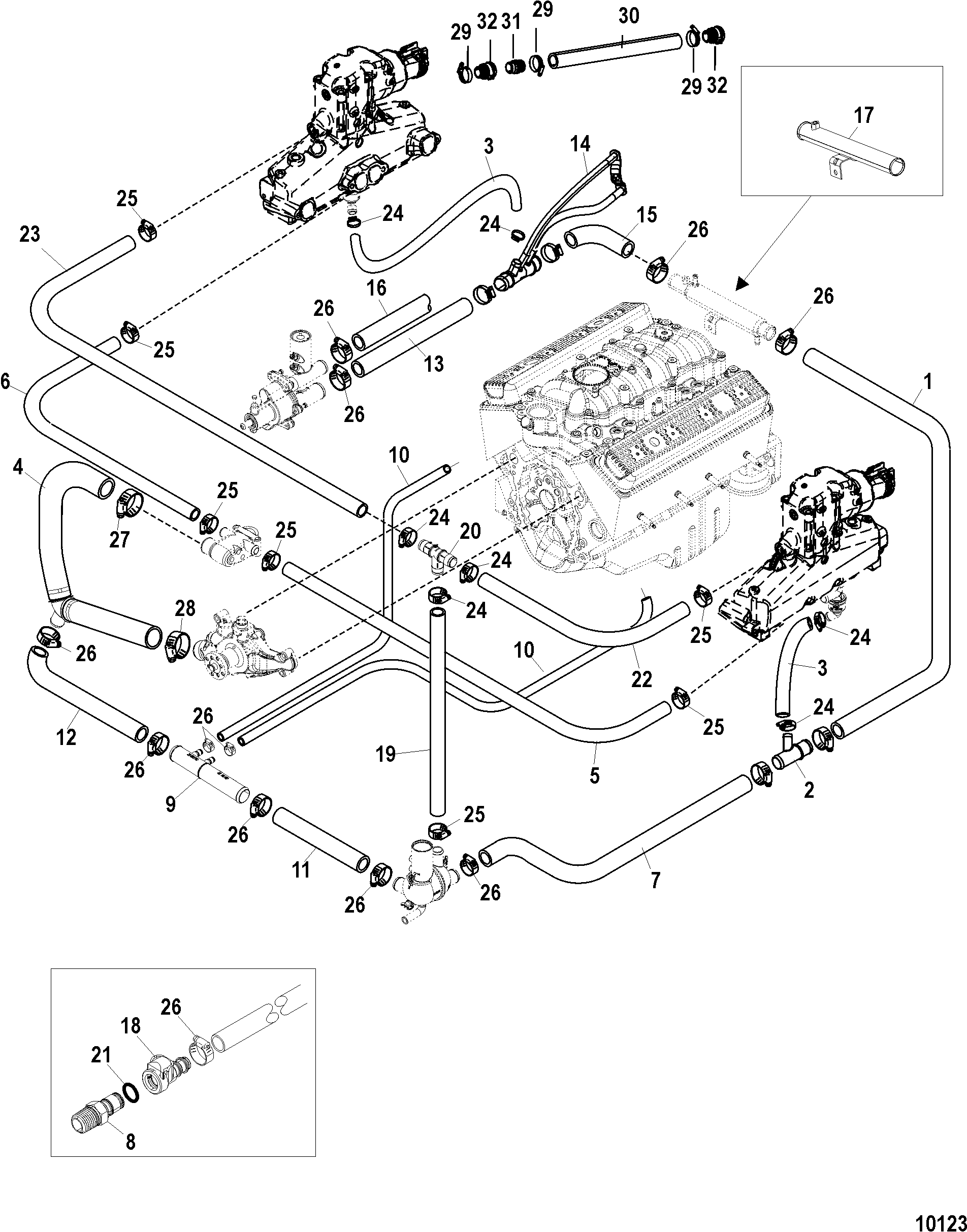

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alpha-Bravo Steering Components
- Alternator and Brackets
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (HP) 1A347685 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A347684 and Down, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (For HP Filter) 1A347685 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A347684 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342859 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342860 and Up, Gen I
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling System, ALPHA
- Closed Cooling System, AXIUS
- Closed Cooling System, BRAVO
- Closed Cooling System, Heat Exchanger
- Cool Fuel System - Bravo (1A343748 and Below)
- Cool Fuel System - Bravo (1A343749 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital (1A343327 and Below)
- Electrical Components, Digital (1A343328 and Up)
- Electrical Components, Mechanical (1A343327 and Below)
- Electrical Components, Mechanical (1A343328 and Up)
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components - Bravo (SN 1A343748 and Below)
- Fuel Module Components - Bravo (SN1A343749 and Above)
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Axius
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System - ALPHA, 7 Point Drain
- Standard Cooling System - ALPHA, Single and 3 Point Drain
- Standard Cooling System - AXIUS
- Standard Cooling System - BRAVO, 7 Point Drain
- Standard Cooling System - BRAVO, Single and 3 Point Drain
- Starter Motor
- Thermostat and Housing, 7 Point Drain
- Thermostat and Housing, Single and 3 Point Drain
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-865255 | HOSE, Power Steering Cooler to Accumulator Housing | 1 | ||||||
| 2 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb | 1 | ||||||
| 3 | 32-4285069 | HOSE, (44.00 Inches Bulk), Exhaust Manifold to Y Fitting | 1 | Port - Cut to 9.00 Inches | |||||
| 3 | 32-4285069 | HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting | 1 | Starboard - Cut to 3.5 Inches | |||||
| 4 | 32-863456A1 | HOSE ASSEMBLY, Thermostat Housing to Circulating Pump | 1 | ||||||
| 5 | 32-863458 | HOSE, Thermostat Housing to Port Manifold | 1 | ||||||
| 6 | 32-863459 | HOSE, Thermostat Housing to Starboard Manifold | 1 | ||||||
| 7 | 32-866331 | HOSE, Y Fitting to Accumulator | 1 | 32-807694075 | |||||
| 8 | 22-862603 | FITTING, Male Quick Connector, Threaded- Engine Block | 2 | ||||||
| 9 | 22-864989A01 | FITTING ASSEMBLY, Lower Distribution | 1 | ||||||
| 10 | 32-8M0062590 | HOSE, Cylinder Block Drain to Distribution Fitting | 2 | 32-8623175 | Port-23 Inches/Starboard 17 Inches | ||||
| 11 | 32-863490 | HOSE, Water Drain Accumulator to Distribution Fitting | 1 | ||||||
| 12 | 32-865394 | HOSE | 1 | ||||||
| 13 | 32-8M2021656 | HOSE, Sea Pump to Water Orifice | 1 | 32-865337 | 3 Point Manual Drain | ||||
| 13 | 32-865234 | HOSE, Sea Pump to Water Orifice | 1 | Single Point Air Actuated Drain | |||||
| 14 | 22-865208T01 | HOSE ASSEMBLY, 3 Bib Orfice Meter | 1 | ||||||
| 15 | 32-865235 | HOSE, Water Orifice to Power Steering Cooler | 1 | ||||||
| 16 | 32-865672079 | HOSE, Transom Water Pick Up to Sea Water Pump | 1 | 32-86334365 | Without Quick Connect | ||||
| 16 | 32-865672079 | HOSE, (96.00 Inches Bulk) | 1 | With Quick Connect | |||||
| 17 | 863841T | TUBE, Water, Brass | 1 | Compact Hydraulic Steering | |||||
| 18 | 22-862225 | FITTING, Pushlock - Block Drain Hose | 4 | ||||||
| 19 | 32-863465 | HOSE, Drain Accumulator to Tee Fitting | 1 | ||||||
| 20 | 22-863464 | FITTING, Tee | 1 | Bravo Only | |||||
| 21 | 25-627021 | O-RING, (.301 x .070) | 2 | ||||||
| 22 | 32-864560 | HOSE, Tee Fitting to Port Elbow | 1 | Non Riser and 3 Inch Warm Riser | |||||
| 22 | 32-864965 | HOSE, Tee Fitting to Port Elbow | 1 | 6 Inch Warm Riser | |||||
| 23 | 32-864561 | HOSE, Tee Fitting to Starboard Elbow | 1 | Non Riser and 3 Inch Warm Riser | |||||
| 23 | 32-864966 | HOSE, Tee Fitting to Starboard Elbow | 1 | 6 Inch Warm Riser | |||||
| 24 | 54-815504212 | CLAMP, Worm Gear, Hose | 2 | ||||||
| 25 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose | AR | ||||||
| 26 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter), Hose | 2 | ||||||
| 27 | 54-815504228 | CLAMP, Worm Gear, Hose | 1 | ||||||
| 28 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter), Hose | AR | ||||||
| 29 | 54-815504220 | CLAMP, Worm Gear | 3 | ||||||
| 30 | 32-865672013 | HOSE, (4.00 Inches) | 1 | ||||||
| 31 | 22-865362 | QUICK CONNECT, Transom Hose | 1 | ||||||
| 32 | 22-865324 | QUICK CONNECT, Transom Hose | 2 |
