350 Mag MPI HORIZON Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Mercathode Components

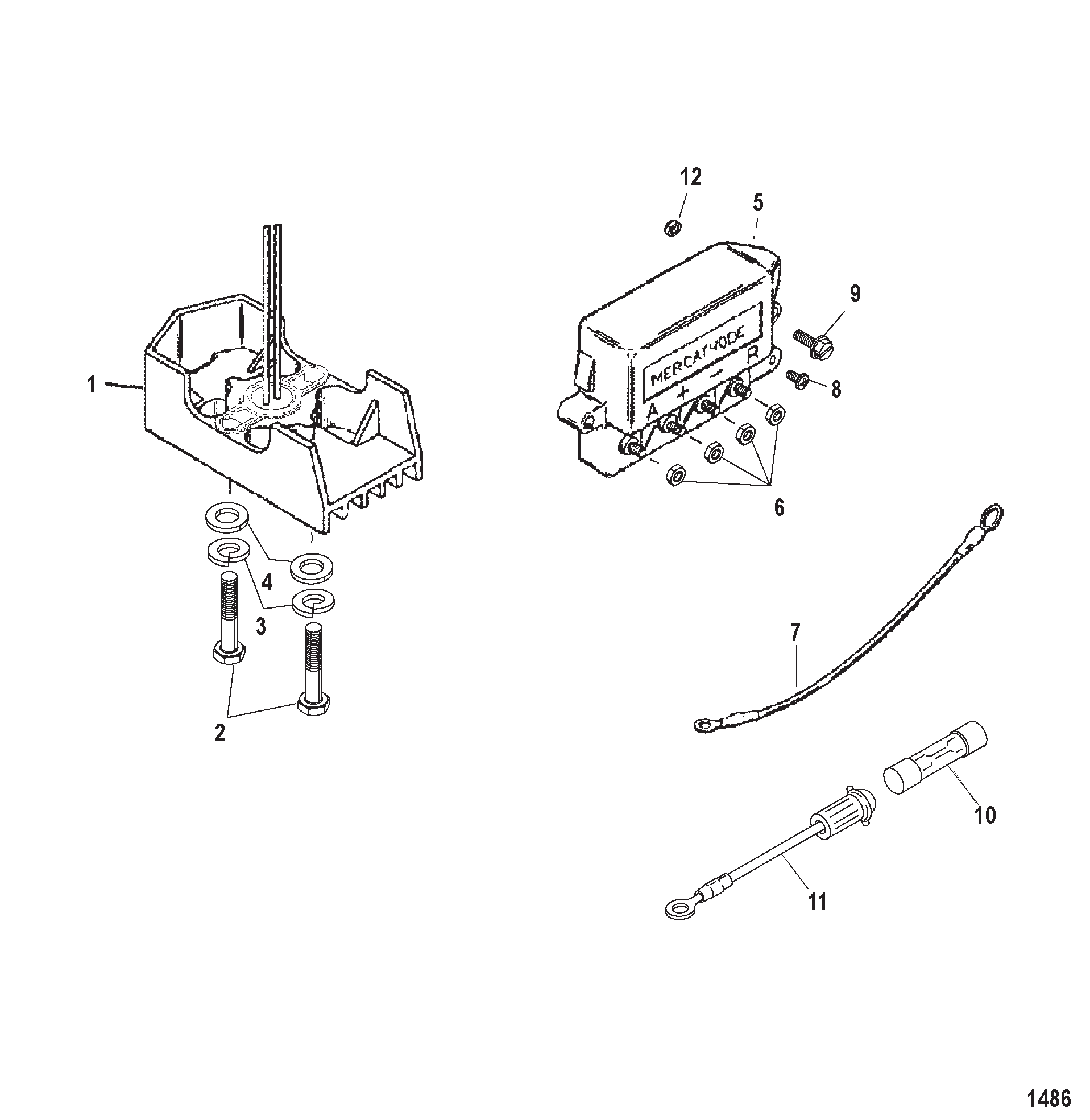

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 98869A11 ELECTRODE ASSEMBLY   1
2 0010 OEM: 525-10-69067 SCREW (.250-20 x 1.375)   2
3 0013 OEM: 525-13-26992 LOCKWASHER (.250) Stainless Steel   2
4 0012 OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 WASHER (.281 x .500 x .060) Stainless Steel   2
5 0000 42600A3 CONTROLLER ASSEMBLY   1
6 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   4
7 0084 OEM: 525-84-88543A3 CABLE ASSEMBLY   1
8 0010 OEM: 525-10-62568 SCREW (#10-16 x .375)   1
9 0010 OEM: 525-10-4010516 SCREW (M5 x 16) Stainless Steel   2
10 0088 OEM: 525-88-79091 FUSE 20 Ampere   1
11 0084 OEM: 525-84-95084A9 CABLE ASSEMBLY (91.00 Inches) Red/Purple Strip   1
11 0084 OEM: 525-84-95084A10 CABLE ASSEMBLY (5.00 Inches) Red   1
