350 Mag MPI HORIZON Alpha-Bravo EC - Serial 1A300000 Thru 1A611927 - AXIUS Steering, Reservoir and Front Lifting Eye, Gen I

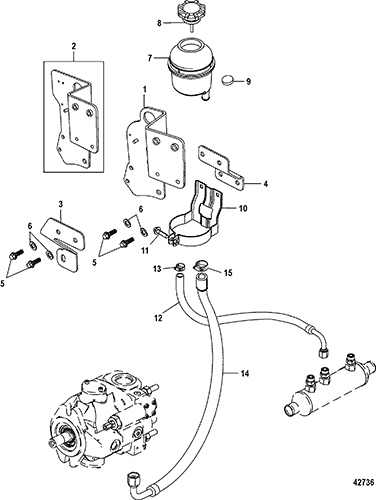

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alpha-Bravo Steering Components
- Alternator and Brackets
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (HP) 1A347685 and Up, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (For HP Filter) 1A347685 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A347684 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342859 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342860 and Up, Gen I
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling Sys., Sea Water Pump Hoses -1A343748 and Down
- Closed Cooling Sys., Sea Water Pump Hoses -1A343749 and Up
- Closed Cooling System (Alpha)
- Closed Cooling System (Bravo)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System -Bravo (SN 1A343748 and Below)
- Cool Fuel System -Bravo (SN 1A343749 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo (1A343748 and Below)
- Fuel Module Components -Bravo (1A343749 and Above)
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Rocker Cover
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System (Alpha), Single and 7 Point Drain
- Standard Cooling System (Bravo), Air, 3 and 7 Point Drain
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879288T20 | BRACKET, Front Lifting Eye | 1 | Stardard Cooling Without Drain & Closed Cooling | |||||
| 2 | 87928814T | BRACKET, Front Lifting Eye | 1 | Standard Cooling With Drain | |||||
| 3 | 8M2007273 | BRACKET | 1 | ||||||
| 4 | 8M2006158 | BRACKET | 1 | ||||||
| 5 | 10-35386 | SCREW, (.312-18 x 1.00) | 4 | ||||||
| 6 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 4 | |||||
| 7 | 865264T | RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering | 1 | ||||||
| 8 | 19-865263 | CAP, Oil Reservoir - Brown | 1 | ||||||
| 9 | 87919455T | MAGNET, Power Steering Reservoir | 1 | ||||||
| 10 | 879194T06 | BRACKET, Fluid Reservior | 1 | ||||||
| 11 | 10-82130025 | SCREW, (M6 x 25) | 1 | ||||||
| 12 | 32-8M2008378 | HOSE | 1 | ||||||
| 13 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 1 | ||||||
| 14 | 32-8M2010005 | HOSE | 1 | ||||||
| 15 | 54-815504210 | CLAMP, Worm Gear | 1 |
