350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Flywheel Housing

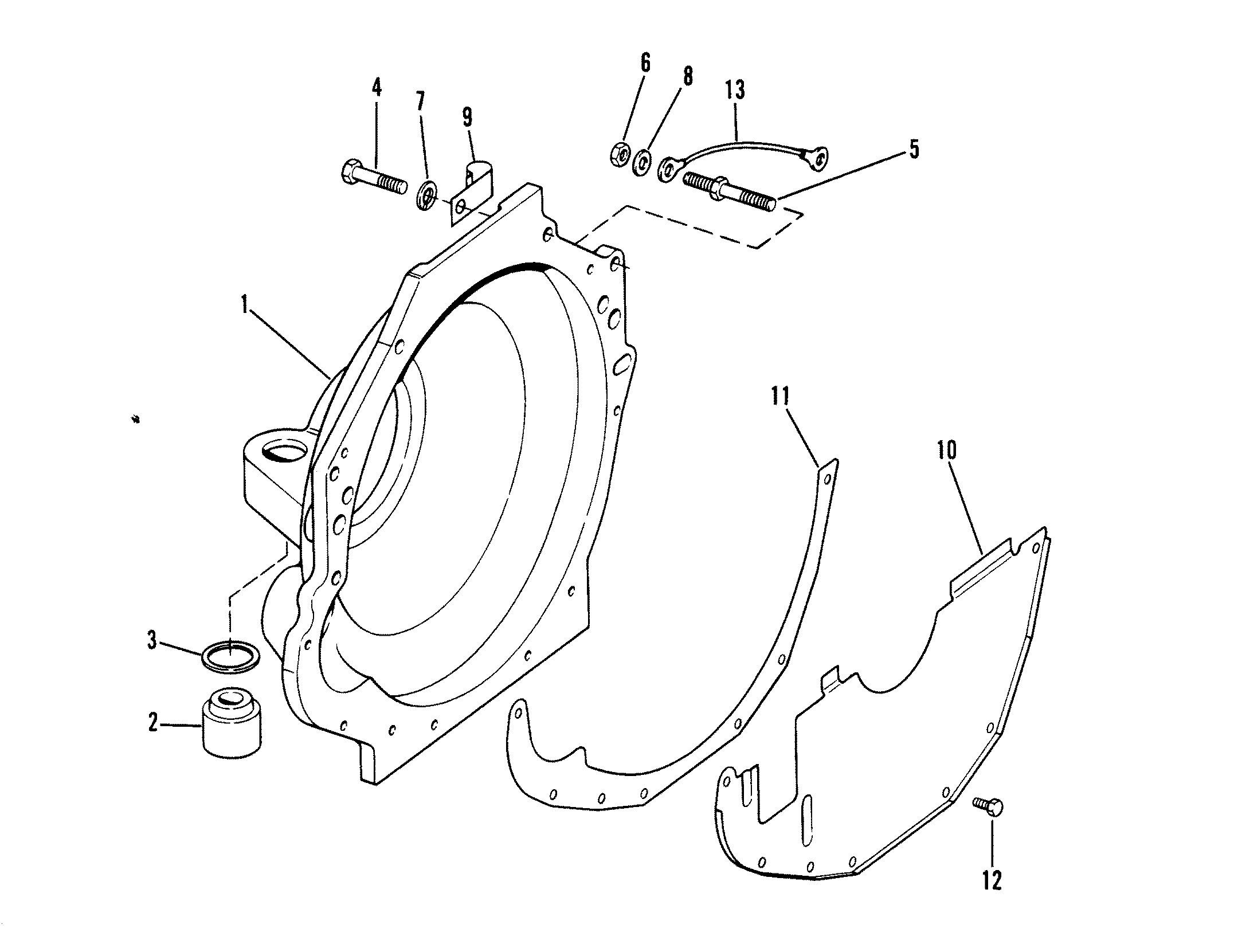

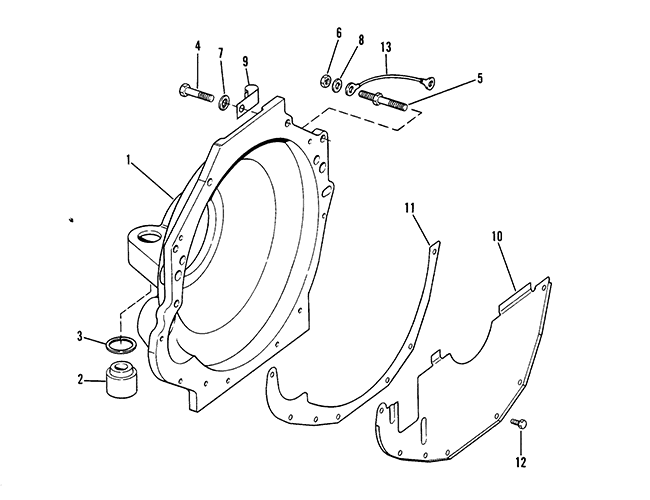

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola)
- Audio Warning System
- Carburetor
- Carburetor And Throttle Linkage
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Kit
- Miscellaneous Parts, Accessories
- Oil Filter And Adapter (New Design)
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (Old Design)
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 865657A04 | 620-91200 | 525-57621 | FLYWHEEL HOUSING | 1 | 12675A4 | 4 = [27-75611A86] GASKET SET, ENGINE OVERHAUL | |||
| 2 | 865329A02 | MOUNT, RUBBER - FLYWHEEL HOUSING | 2 | 99297A1 | GASKET SETS AND SEALANTS - REQUIRED FOR COMPLETE OVERHAUL | |||||
| 3 | 23-99322 | 700-21040 or | 700-21811 |
SPACER, RUBBER MOUNT - FLYWHEEL HOUSING | 2 | [92-91601 1] SEALER, RED RTU [WHERE APPLICABLE] | ||||
| 4 | 10-37612 | SCREW, FLYWHEEL HOUSING ATTACHMENT (1-1/4") | 4 | [92-34227 1] PERFECT SEAL [WHERE APPLICABLE] | ||||||
| 4 | 10-358701 | SCREW, FLYWHEEL HOUSING ATTACHING (2") | 1 | 10-45754 | ||||||
| 5 | 16-64066 | STUD, FLYWHEEL HOUSING ATTACHING (2-1/4") | 1 | |||||||
| 6 | 11-32219 | NUT, FLYWHEEL HOUSING ATTACHING STUD | 1 | |||||||
| 7 | 13-35048 | 700-21495 or | 700-21493 | LOCKWASHER, FLYWHEEL HOUSING SCREW (3/8") | 7 | |||||
| 8 | 12-20572 | WASHER, FLYWHEEL HOUSING SCREW - SPECIAL (3/8") | 1 | |||||||
| 9 | 54-78945 | "J" CLAMP, FLYWHEEL HOUSING STUD | 1 | |||||||
| 9 | 54-92850 | CLAMP | 2 | |||||||
| 10 | 13930A3 | COVER ASSEMBLY | 1 | This Part is No Longer Available | ||||||
| 11 | 27-96274 | GASKET, FLYWHEEL HOUSING SCREW | 1 | This Part is No Longer Available | ||||||
| 12 | 10-32773 | SCREW, COVER TO FLYWHEEL HOUSING | 7 | |||||||
| 13 | 84-62826A6 | WIRE, FLYWHEEL HOUSING STUD | 1 |
