5.0L (2 BBL) GM 305 V-8 1998-2001 - Serial 0L015751 Thru 0M599999 - Shift Bracket (Alpha Engines)

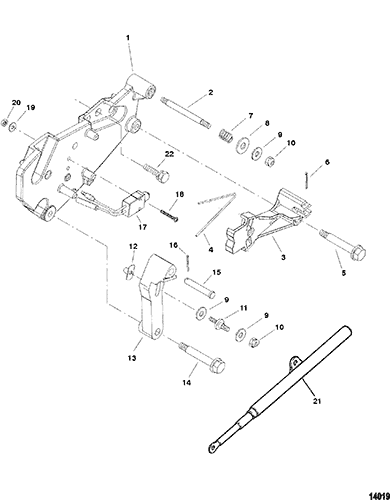

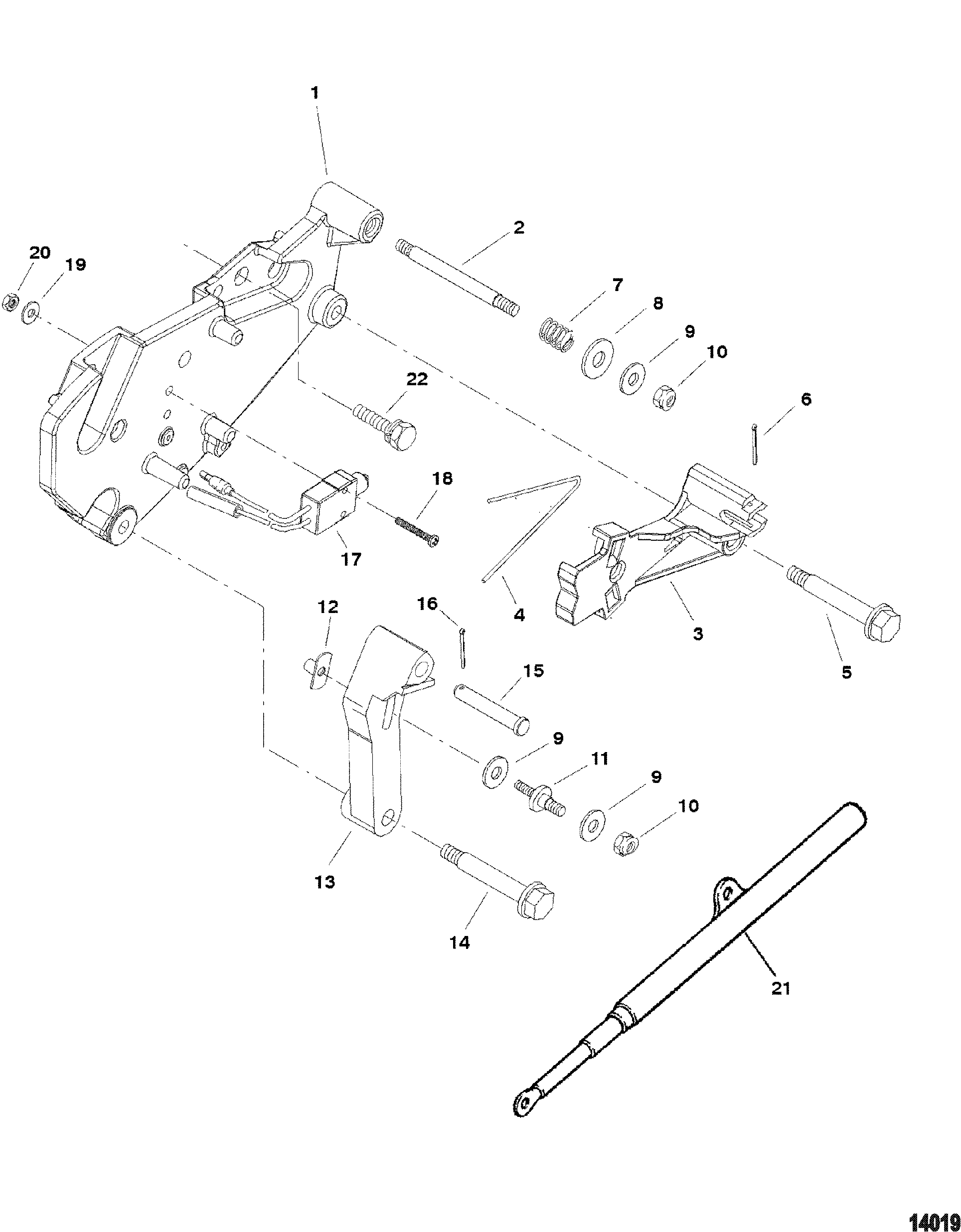

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter (Mando)
- Carburetor (Mercarb)
- Carburetor And Throttle Linkage (Two Barrel)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distibutor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Water Pump And Front Cover
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY | 1 | 807962A10 | |||||
| 2 | 16-8140021 | STUD, (.250 x 2.870) | 1 | No longer made, limited availability | |||||
| 3 | 13051A8 | LEVER ASSEMBLY, Actuating | 1 | ||||||
| 4 | 24-862850 | SPRING | 1 | ||||||
| 5 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 6 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
| 7 | 24-98880 | SPRING | 1 | ||||||
| 8 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 | ||||||
| 9 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 4 | ||||||
| 10 | 11-8267119 | NUT, (.250-28) | 2 | ||||||
| 11 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor (2 Inch) | 1 | ||||||
| 11 | 16-865393A02 | STUD, (.250-28 x 1.90) | 1 | 16-961123 | |||||
| 12 | 11-63341 | TEE NUT | 1 | ||||||
| 13 | 13898T06 | LEVER ASSEMBLY, Shift | 1 | 13898A3 | |||||
| 14 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 15 | 17-814001 | PIN, Clevis | 1 | ||||||
| 16 | 18-210711 | COTTER PIN | 1 | 18-21071 | |||||
| 17 | 87-814281A5 | SWITCH ASSEMBLY | 1 | ||||||
| 18 | 10-860077 | SCREW, (#6-32 x 1.00) | 2 | ||||||
| 19 | 12-11303 | WASHER | 2 | ||||||
| 20 | 11-F1669 | NUT, (#6-32) | 2 | ||||||
| 21 | 813995A1 | GUIDE ASSEMBLY, Spring | 1 | ||||||
| 22 | 10-657461 | SCREW AND LOCKWASHER, (.250-20 x .625) | 3 |
