5.0L MPI Alpha-Bravo - Serial 0W650000 Thru 1A299999 - Electrical Components (Digital Throttle and Shift)

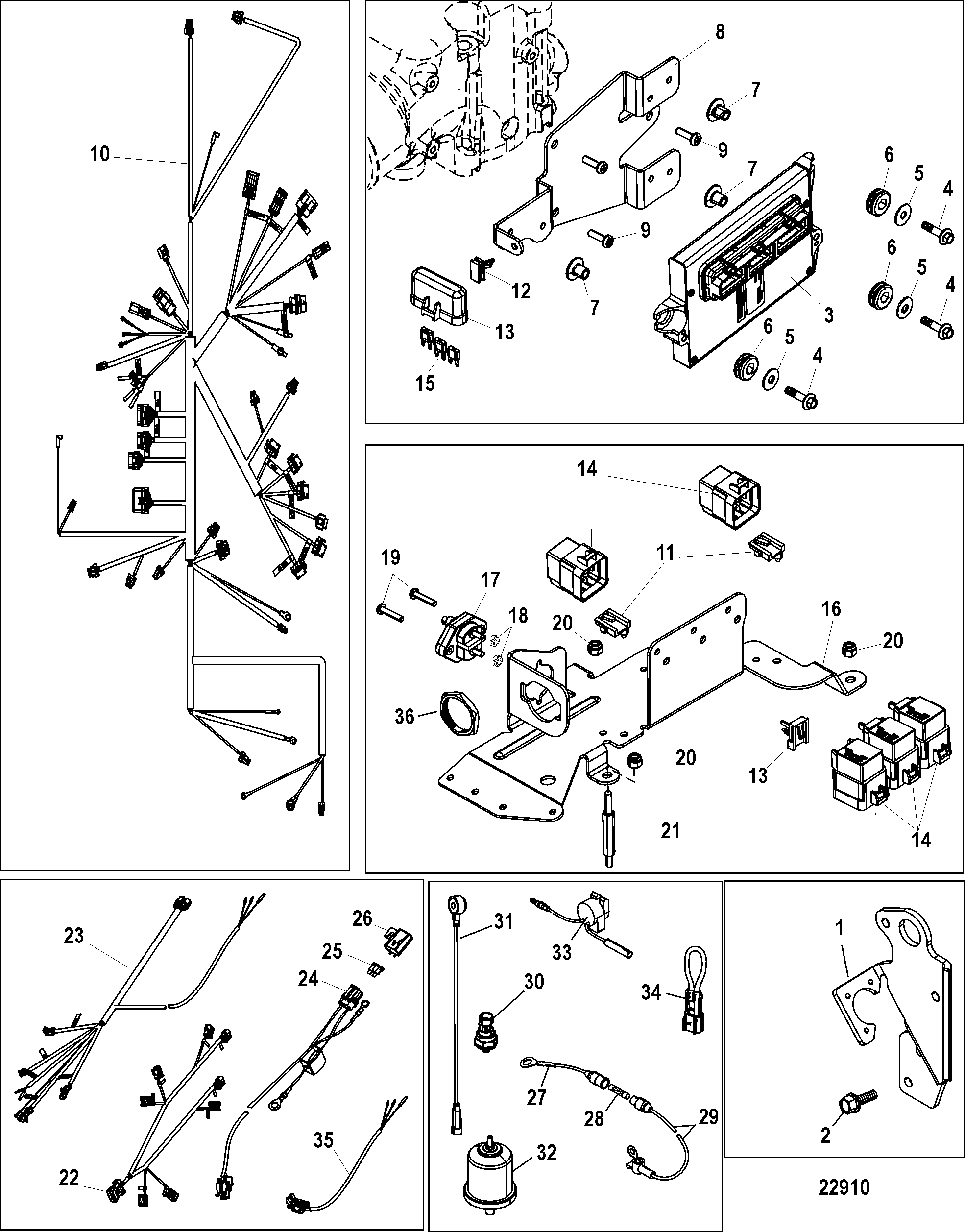

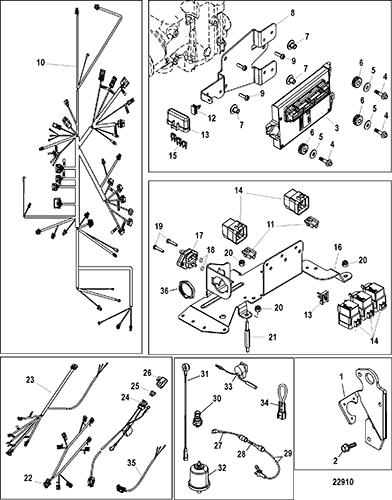

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alpha-Bravo Steering Components
- Closed Cooling System - ALPHA
- Closed Cooling System - BRAVO
- Cylinder Block (Camshaft and Crankshaft)
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components (Digital Throttle and Shift)
- Electrical Components (Mechanical Throttle and Shift)
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Supply Module, Alpha
- Fuel Supply Module, Bravo
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System - ALPHA, 7 Point Drain
- Standard Cooling System - ALPHA, Single and 3 Point Drain
- Standard Cooling System - BRAVO, 7 Point Drain
- Standard Cooling System - BRAVO, Single and 3 Point Drain
- Starter Motor
- Steering Components
- Thermostat and Housing, 7 Point Drain
- Thermostat and Housing, Single and 3 Point Drain
- Throttle Body (Digital Throttle and Shift)
- Throttle Body (Mechanical)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865480T | BRACKET, Harness Mounting/Lifting Eye | 1 | ||||||
| 2 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
| 3 | 866236T04 | ECM, Engine Control Module | 1 | 866236T02 | (5.0L MPI)(Standard Cooling) | ||||
| 3 | 866237T04 | ECM, Engine Control Module | 1 | 866237T02 | (5.0L MPI)(Closed Cooling) | ||||
| 3 | 866238T04 | ECM, Engine Control Module | 1 | 866238T02 | (350 MAG.)(Standard Cooling) | ||||
| 3 | 866239T04 | ECM, Engine Control Module | 1 | 866239T02 | (350 MAG.)(Closed Cooling) | ||||
| 3 | 866242T06 | ECM, Engine Control Module | 1 | 866242T03 | (6.2L)(Standard Cooling) | ||||
| 3 | 866243T05 | ECM, Engine Control Module | 1 | 866243T03 | (6.2L)(Closed Cooling) | ||||
| 4 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 5 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 6 | 25-834985 | GROMMET | 3 | ||||||
| 7 | 23-856954 | BUSHING | 3 | ||||||
| 8 | 865479T01 | BRACKET, ECM Mount | 1 | ||||||
| 9 | 10-860008 | SCREW, (.250-20 x .625) Torx | 3 | ||||||
| 10 | 899719T06 | HARNESS ASSEMBLY, Main Engine | 1 | (Digital Throttle and Shift) | |||||
| 11 | 86-865205 | CLIP, Relay Mounting | 2 | ||||||
| 12 | 54-804352 | CLIP, Fuse Block Mounting | 1 | ||||||
| 13 | 883562 | COVER, Fuse | 1 | ||||||
| 14 | 882751 | RELAY | 5 | ||||||
| 15 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 88-83296920 | |||||
| 16 | 865483T | BRACKET, Circuit Breaker and Relays | 1 | ||||||
| 17 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-865827T | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 18 | 11-826709106 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 19 | 10-830861 | SCREW, (#8-32 x .625) | 2 | ||||||
| 20 | 11-401366 | NUT, (M6) Stainless Steel | 3 | ||||||
| 21 | 16-863439 | STUD | 1 | ||||||
| 22 | 84-865983T01 | HARNESS ASSEMBLY, Injectors | 1 | ||||||
| 23 | 84-865677T01 | HARNESS ASSEMBLY, Transom | 1 | ||||||
| 24 | 84-888416T04 | HARNESS ASSEMBLY, Clean Power | 1 | 84-888416T03 | |||||
| 25 | 862646 | FUSE, Tan - 5 Ampere | 1 | ||||||
| 26 | 828054 | COVER, Fuse | 1 | ||||||
| 27 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | (Bravo) | |||||
| 28 | <88-79091 | FUSE, 20 Ampere | 1 | (Bravo) | |||||
| 29 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | 1 | (Bravo) | |||||
| 30 | 8M6000623 | SENSOR, Pressure | 1 | 881879010 | (Power Steering Cooler) | ||||
| 30 | 881879T11 | SENSOR, Pressure (0 - 100 PSI), Pressure | 1 | 881879011 | (Oil) | ||||
| 31 | 878187 | SENSOR ASSEMBLY, Knock | 2 | ||||||
| 32 | 8M0068784 | SENDER ASSEMBLY, Oil | 1 | 87-815425T | |||||
| 32 | 37293T | SENDER ASSEMBLY, Oil | 1 | (Dual Station) | |||||
| 33 | 816492A15 | ALARM KIT | 1 | ||||||
| 34 | 864337A1 | CONNECTOR, Black, Jumper | 1 | (Black Wire) | |||||
| 35 | 84-865774T01 | HARNESS ASSEMBLY, Trim Pump | 1 | ||||||
| 36 | 11-889664 | NUT, (1.500-18) Black Nylon | 1 |
