5.0L MPI Alpha-Bravo - Serial 1A611928 Thru 1A623184 - Closed Cooling System, AXIUS

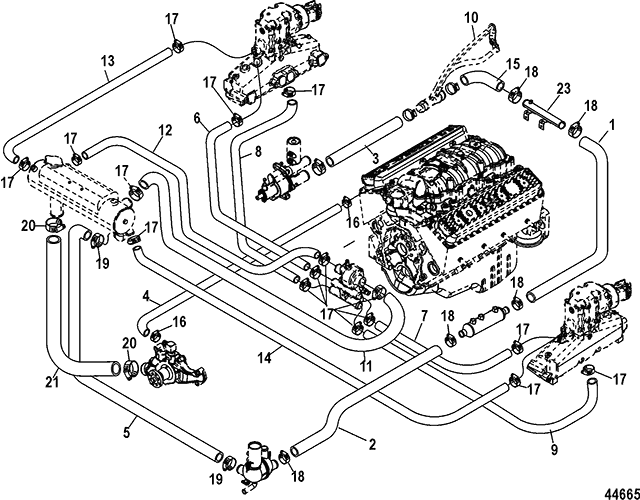

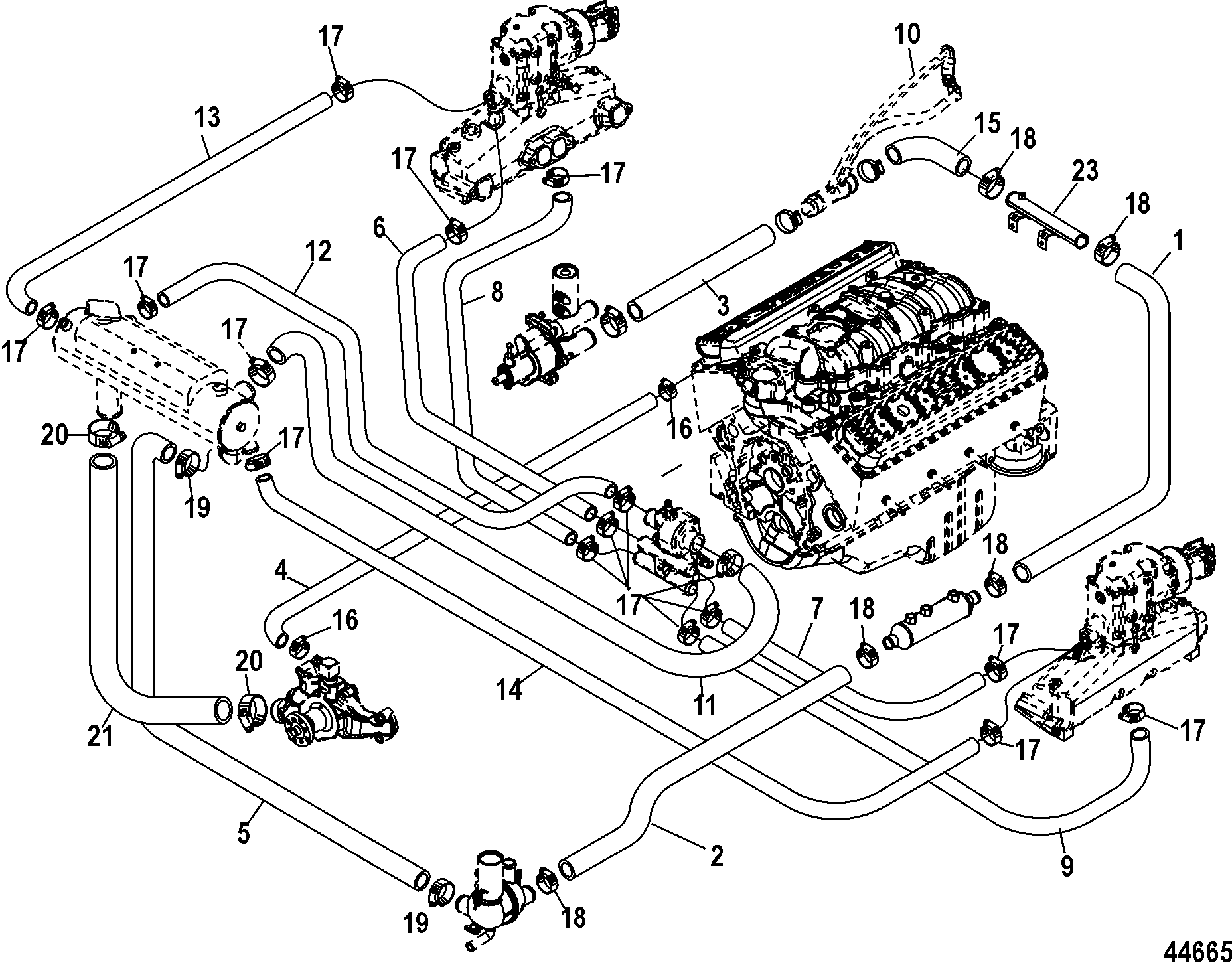

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- AXIUS Steering Components, Hydraulic Pump
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (High Pressure)
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (High Pressure Filter)
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Closed Cooling System, ALPHA
- Closed Cooling System, AXIUS
- Closed Cooling System, BRAVO
- Closed Cooling System, Heat Exchanger
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital
- Electrical Components, Mechanical
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle Shift - Axius
- Standard Cooling System - ALPHA, 7 Point Drain
- Standard Cooling System - ALPHA, Single and 3 Point Drain
- Standard Cooling System - AXIUS
- Standard Cooling System - BRAVO, 7 Point Drain
- Standard Cooling System -BRAVO, Single and 3 Point Drain
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing, 7 Point Drain
- Thermostat and Housing, Single and 3 Point Drain
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-8M2005646 | HOSE, Cooling Tube to Steering Cooler | 1 | ||||||
| 2 | 32-8M2007277 | HOSE, Steering Cooler to Drain Housing | 1 | ||||||
| 3 | 32-865234 | HOSE, Sea Water Pump to Water Orifice | |||||||
| 4 | 32-864551 | HOSE, Intake Bypass to Circulating Pump | 1 | ||||||
| 5 | 32-864431 | HOSE, Distribution Fitting to Heat Exchanger | 1 | ||||||
| 6 | 32-864539 | HOSE, Thermostat Housing to Upper Manifold | 1 | (Starboard) (Non Riser) | |||||
| 6 | 32-864956 | HOSE, Thermostat Housing to Upper Manifold | 1 | (Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) | |||||
| 7 | 32-864552 | HOSE, Thermostat Housing to Upper Manifold | 1 | (Port) (Non Riser) | |||||
| 7 | 32-864954 | HOSE, Thermostat Housing to Upper Manifold | 1 | (Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) | |||||
| 8 | 32-864509 | HOSE, Thermostat Housing to Lower Manifold | 1 | (Starboard) | |||||
| 9 | 32-864508 | HOSE, Thermostat Housing to Lower Manifold | 1 | (Port) | |||||
| 10 | NA | NOT AVAILABLE, Orifice Meter | 1 | (See 'Cool Fuel System -Bravo' Page for Service Part Number | |||||
| 11 | 32-864506 | HOSE, Heat Exchanger to Thermostat Housing | 1 | ||||||
| 12 | 32-864507 | HOSE, Heat Exchanger to Thermostat Housing | 1 | ||||||
| 13 | 32-8M2005027 | HOSE, Heat Exchanger to Starboard Elbow | 1 | (Non Riser, 1.7 Inch and 3 Inch Riser) | |||||
| 13 | 32-864955 | HOSE, Heat Exchanger to Starboard Elbow | 1 | (4.7 Inch and 6 Inch Riser) | |||||
| 14 | 32-864726 | HOSE, Heat Exchanger to Port Elbow | 1 | (Non Riser, 1.7 Inch and 3 Inch Riser) | |||||
| 14 | 32-864953 | HOSE, Heat Exchanger to Port Elbow | 1 | (4.7 Inch and 6 Inch Riser) | |||||
| 15 | 32-865235 | HOSE, Water Orifice to Power Steering Cooler | 1 | ||||||
| 16 | 54-815504212 | CLAMP, Worm Gear | A/R | ||||||
| 17 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | AR | ||||||
| 18 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | AR | ||||||
| 19 | 54-815504232 | CLAMP, Worm Gear | A/R | 54-8M2001490 | |||||
| 20 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | AR | ||||||
| 21 | 32-864886 | HOSE, Heat Exchanger to Circulating Pump | 1 | ||||||
| 22 | 54-815504228 | CLAMP, Worm Gear | AR | ||||||
| 23 | 879312T65 | TUBE, Water Hose | 1 |
