5.7L (2 BBL) GM 350 V-8 1998-2001 - Serial 0L010037 Thru 0M599999 - Flywheel Housing

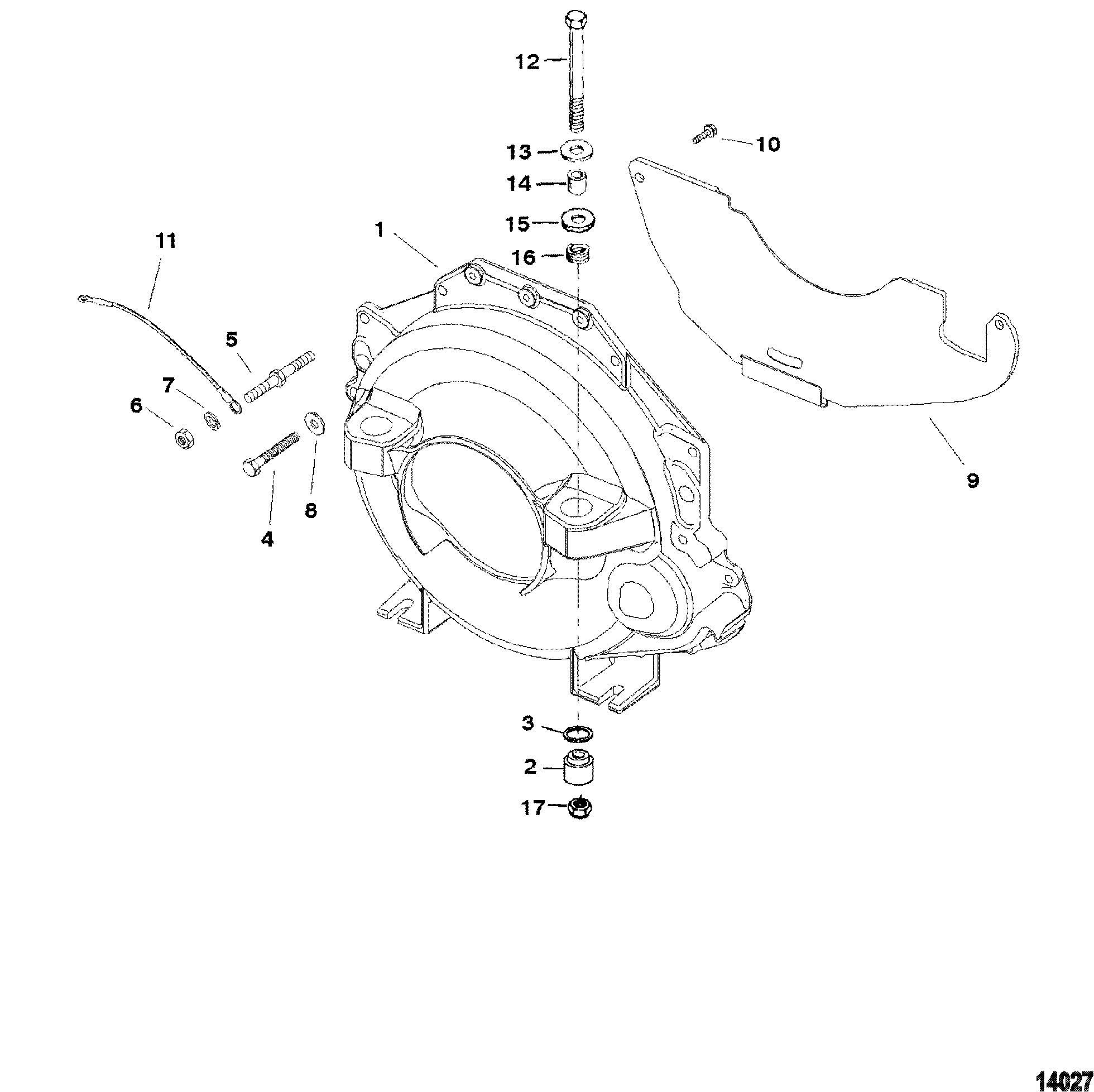

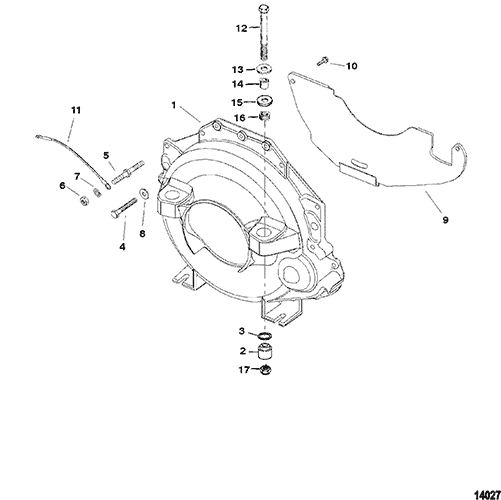

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter (Mando)
- Carburetor (Mercarb)
- Carburetor And Throttle Linkage (Two Barrel)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distibutor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Water Pump And Front Cover
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865657A03 | HOUSING ASSEMBLY, Flywheel | 1 | 12675A5 | |||||
| 2 | 865329A02 | MOUNT ASSEMBLY, Rubber | 2 | 99297A1 | |||||
| 3 | 23-99322 | 700-21050 | SPACER | 2 | |||||
| 4 | 10-37612 | SCREW, (.375-16 x 1.250) | 3 | ||||||
| 4 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | ||||||
| 5 | 16-64066 | STUD, (.375-16 x 2.750) Special | 2 | ||||||
| 6 | 11-32219 | NUT, (.375-16) | 2 | ||||||
| 7 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 2 | |||||
| 8 | 12-20572 | WASHER, (.390 x .750 x .093) | 1 | ||||||
| 9 | 807260A2 | COVER KIT, Flywheel | 1 | ||||||
| 10 | 10-76596 | SCREW, (.250-20 x 1.250) | 2 | ||||||
| 11 | 84-62826A6 | CABLE ASSEMBLY, Ground (13.00 Inches) Black | 1 | ||||||
| 12 | 10-97934 | 700-19310 | SCREW, (.500-20 x 5.370) Special | 2 | |||||
| 13 | 12-35777 | 700-19320 | WASHER, (.5156 x 1.375 x .125) Aluminium | 2 | |||||
| 14 | 23-99299 | 700-19340 | SPACER, (.520 x .870 x .630) | 2 | |||||
| 15 | 12-32834 | 700-30020 | WASHER, (.9375 x 1.750 x .172) | 2 | |||||
| 16 | 13-33734 | 700-19330 | LOCKWASHER, (.500) | 2 | |||||
| 17 | 11-863332 | 700-19350 | NUT, (.500-20) Aluminium | 2 |
