5.7L EFI GM 350 V-8 1998 - Serial 0L010035 Thru 0L339999 - Standard Cooling System

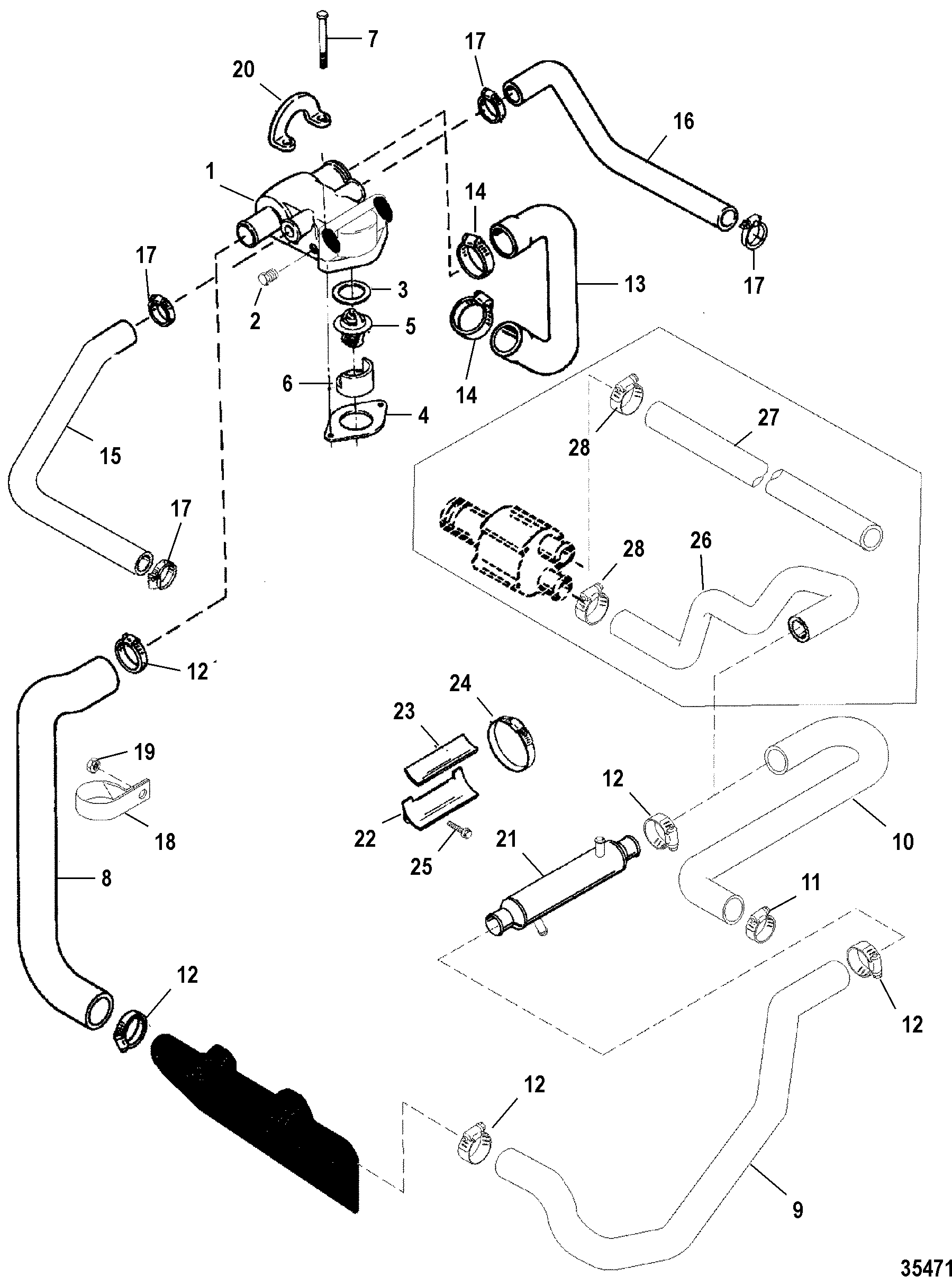

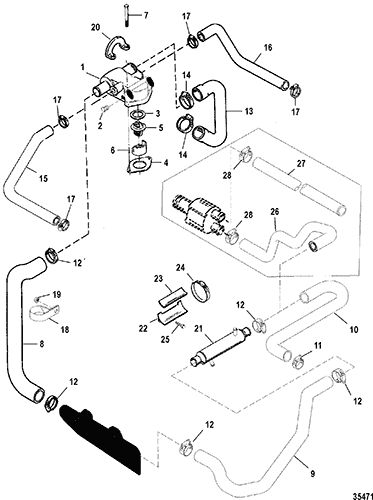

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Blacktrac Transmission
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing (With Blacktrac)
- Flywheel Housing (Without Blacktrac)
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 860256A3 | HOUSING ASSEMBLY, Thermostat | 1 | (ALPHA) | |||||
| 1 | 860256A4 | HOUSING ASSEMBLY, Thermostat | 1 | (BRAVO) | |||||
| 2 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 2 | |||||
| 3 | 27-806871 | GASKET | 1 | 2 | |||||
| 4 | 27-530451 | GASKET | 1 | 2 | |||||
| 5 | 807252T2 | THERMOSTAT, 71°C (160°F) | 1 | 8072522 | |||||
| 6 | 23-806922 | SLEEVE | 1 | ||||||
| 7 | 10-98508 | SCREW, (.375-16 x 3.00) | 2 | ||||||
| 8 | 32-808033 | HOSE, Molded | 1 | ||||||
| 9 | 32-8600891 | HOSE, Molded | 1 | 32-860089 | |||||
| 10 | 32-807661 | HOSE | 1 | ALPHA ENGINES | |||||
| 11 | 54-815504212 | CLAMP, Worm Gear | 1 | ALPHA ENGINES | |||||
| 12 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 5 | ||||||
| 13 | 32-861590A05 | HOSE, Molded | 1 | 32-87108 | |||||
| 14 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 15 | 32-860144 | HOSE, Thermostat Housing To Port Exhaust Manifold | 1 | ||||||
| 16 | 32-807697 | HOSE, Thermostat Housing to Starboard Manifold | 1 | ||||||
| 17 | 54-815504220 | CLAMP, Worm Gear | 4 | ||||||
| 18 | 54-47715 | CLIP | 1 | ||||||
| 19 | 11-29250 | NUT, (.312-24) | 1 | ||||||
| 20 | 12552 | LIFTING EYE | 1 | ||||||
| 21 | <861554T01 | COOLER, Power Steering Oil | 1 | 807292T | |||||
| 22 | 805546A2 | BRACKET, Oil Cooler | 1 | ||||||
| 23 | 772233 | PAD | 1 | ||||||
| 24 | 54-815504224 | CLAMP, Worm Gear | 1 | ||||||
| 25 | 10-816585 | SCREW, (.375-18 x .875) | 1 | ||||||
| 26 | 32-8080441 | HOSE, Molded | 1 | BRAVO ENGINES | |||||
| 27 | 32-865672079 | HOSE, (96.00 Inches Bulk) | 1 | 32-1743579 | BRAVO ENGINES | ||||
| 28 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 2 | BRAVO ENGINES | |||||
| NS | 19-8079923 | COVER, Hose Clamp End | AR | 3,5 | |||||
| - | 27-861246A05 | GASKET SET | 1 | 27-861246A98 |
