5.7L EFI (2 BBL-TBI) GM 350 V-8 1997 - Serial 0K001506 Thru 0K999999 - Intake Manifold And Front Cover

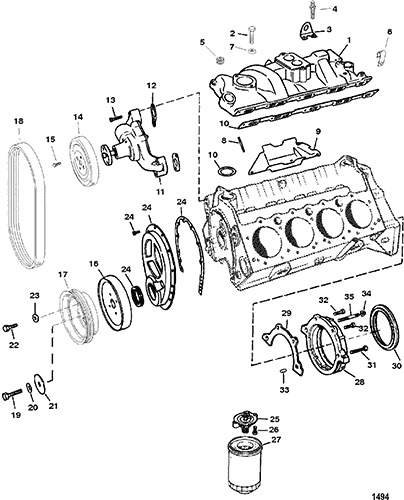

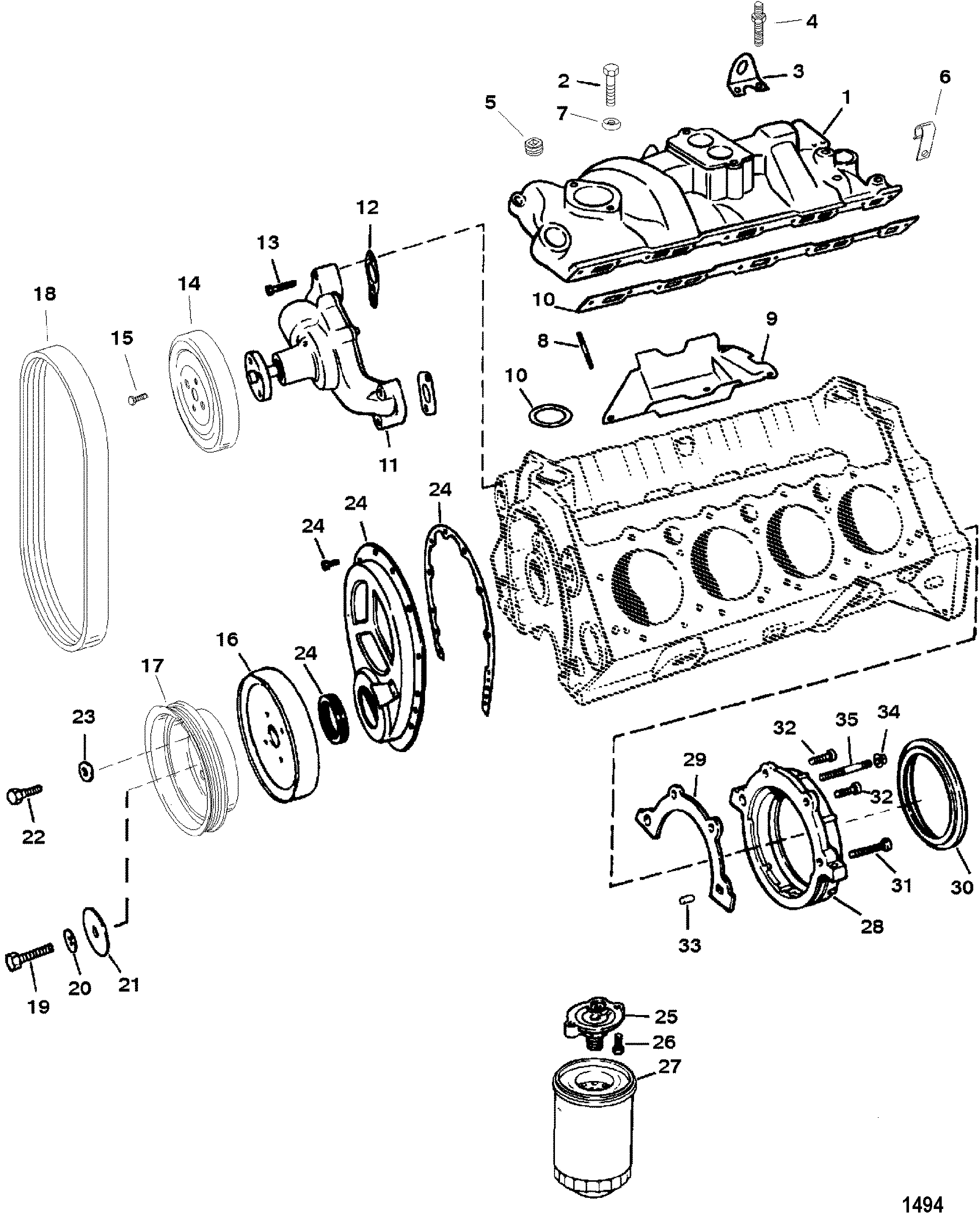

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Lifters)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold - Cast Iron Exhaust Elbow (Alpha)
- Exhaust Manifold - Stainless Steel Exh. Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage (5.7L Alpha And Bravo)
- Throttle Linkage (5.7Lx Alpha And Bravo)
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 17619 | MANIFOLD, Intake | This Part is No Longer Available (2 BBL.) | ||||||
| 1 | 17620 | MANIFOLD, Intake | This Part is No Longer Available (4 BBL. - HI-RISE) | ||||||
| 2 | 10-11976 | SCREW, (.375-16 x 1.00) | |||||||
| 2 | 10-852939 | BOLT (3/8-16 X 1-1/2 IN.) | This Part is No Longer Available | ||||||
| 3 | 54-47512 | LIFTING EYE | |||||||
| 4 | 16-806250 | STUD | |||||||
| 5 | 22-48358T | PLUG, (.375) | 22-48358 | ||||||
| 6 | 54-73668 | J-CLIP | |||||||
| 7 | 12-46132 | WASHER | |||||||
| 8 | NSS | NOT SOLD SEPARATE, STUD (GM#10229247) | This Part is not sold separately 1 | ||||||
| 9 | 72647 | GUARD | This Part is No Longer Available | ||||||
| 10 | 27-17145 | 676-9-61200 |
700-30860 |
GASKET SET | (Use RTV Silicone Sealant for end gasket - See Service Manual) 2 | ||||
| 11 | 8503991 | PUMP ASSEMBLY, Water | 850399 | ||||||
| 12 | 27-34897 | 676-9-60065 | 700-31380 | GASKET | 2 | ||||
| 13 | 10-32132 | SCREW, (.375-16 x 1.750) | |||||||
| 13 | 10-47688 | SCREW, (.375-16 x 2.750) | |||||||
| 13 | 16-35342 | STUD, (.312-24/.375-16 x 2.5625) | |||||||
| 14 | 807729T | PULLEY | |||||||
| 15 | 10-47277 | SCREW, (.312-24 x .750) | |||||||
| 16 | 809892T | BALANCER, Harmonic | 809892 | ||||||
| 17 | 807730T | PULLEY | |||||||
| 18 | 57-861758A1 | BELT, Serpentine | 57-8077552 | (ALPHA) | |||||
| 18 | 57-861757A1 | BELT, Serpentine | 57-8077551 | (BRAVO) | |||||
| 19 | 10-32515 | SCREW, (.437-20 x 2.50) | |||||||
| 20 | 13-39131 | LOCKWASHER, (.437) | |||||||
| 21 | 35332001 | WASHER | 12-35332 | ||||||
| 22 | 10-34352 | SCREW, (.375-24 x .875) | |||||||
| 23 | WASHER | ||||||||
| 24 | 835005 | COVER ASSEMBLY, Timing | (SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.) | ||||||
| 25 | 71920 | VALVE ASSEMBLY, Filter | 53338 | W/O REMOTE OIL FILTER | |||||
| 26 | 10-54786 | SCREW, (.312-18 x 1.250) | W/O REMOTE OIL FILTER | ||||||
| 27 | 35-866340Q03 | 676-9-57825 |
FILTER, Oil | 14957 | W/O REMOTE OIL FILTER | ||||
| 28 | 852940 | HOUSING ASSEMBLY, With Studs, Oil Seal (REAR) | |||||||
| 29 | 27-881715 | 676-9-61511 |
GASKET | 27-14241 | 2 | ||||
| 30 | 26-852941 | 676-9-61625 |
SEAL, Oil (REAR) | 2 | |||||
| 31 | 10-8M0064241 | BOLT, (.250-20 x 1.750) | 10-14243 | ||||||
| 32 | 10-14242 | BOLT, (.250-20 x .875) | |||||||
| 33 | 17-14263 | PIN, Dowel | |||||||
| 34 | 11-8167301 | NUT, (.250-20) | 11-816730 | ||||||
| 35 | 16-14827 | STUD, (.250-20 x 2.180) | |||||||
| - | 27-806871A96 | 700-39018 |
GASKET SET, Overhaul | ||||||
