5.7LX (4 BBL) GM 350 V-8 1997 - Serial 0K001527 Thru 0K999999 - Carburetor-Throttle Linkage (2 Barrel)

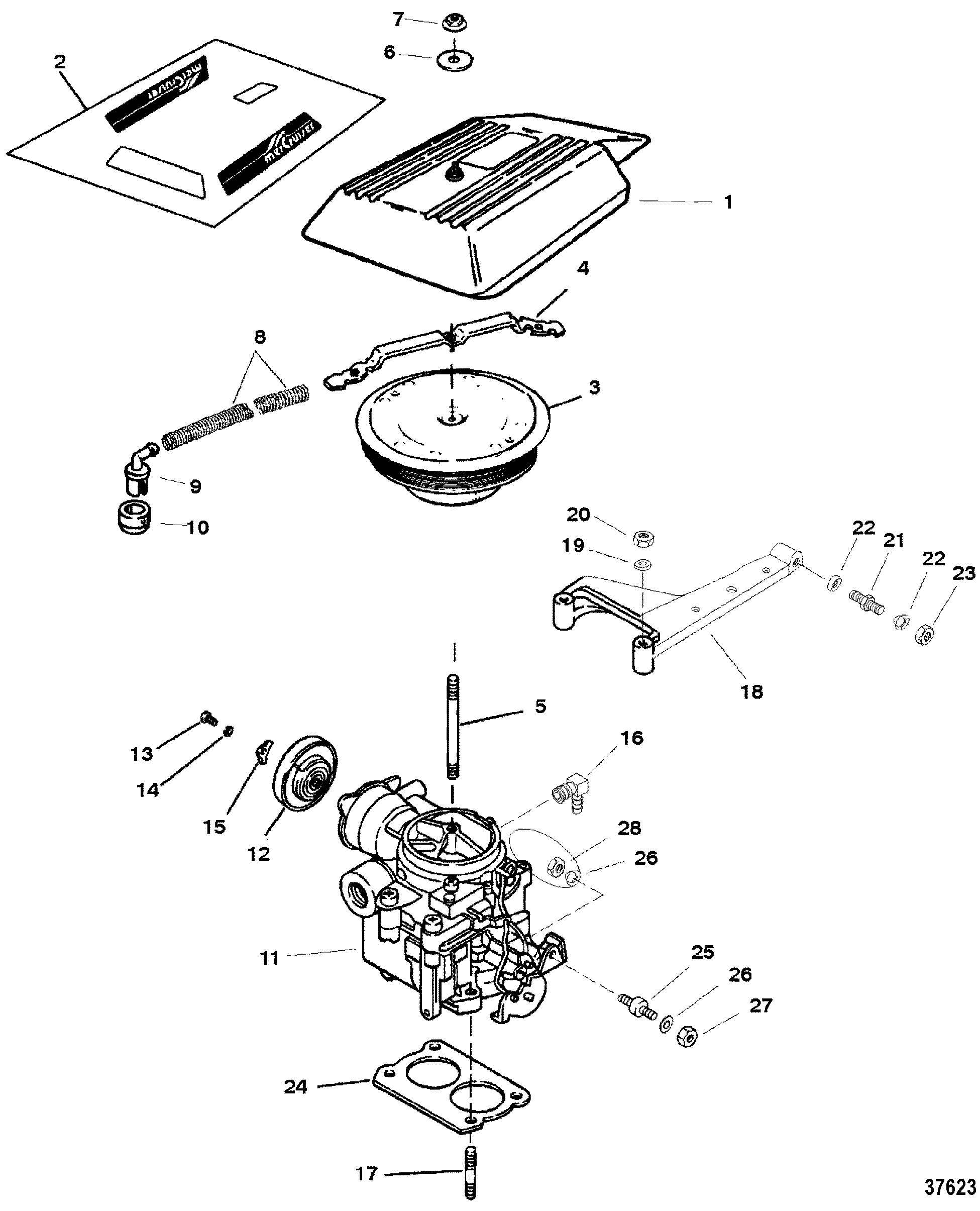

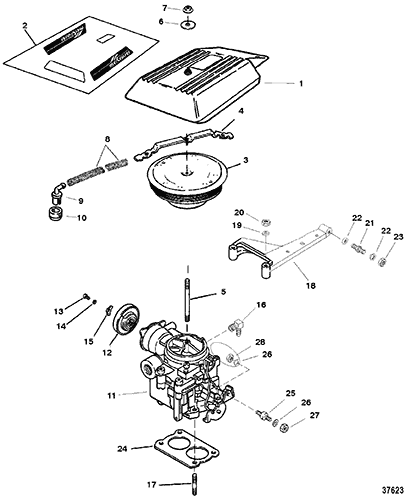

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Carburetor(Mercarb - 2 Barrel)
- Carburetor(Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (350 C.I.D. Flat Lifters)
- Cylinder Block And Camshaft (350 C.I.D. Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Cast Iron Exhaust Elbow
- Exhaust Manifold And Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18484A3 | COVER | 1 | ||||||
| 2 | 37-812776A32 | DECAL SET | 1 | This Part is No Longer Available 5.7L ALPHA/BRAVO | |||||
| 3 | 805016A1 | FLAME ARRESTOR | 1 | ||||||
| 4 | 805313 | RETAINER | 1 | This Part is No Longer Available | |||||
| 5 | 16-805295 | STUD, (.250-20/.250-28 x Special) | 1 | ||||||
| 6 | 12-86400 | WASHER | 1 | ||||||
| 7 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 8 | 32-1589424 | HOSE, Breather | 2 | 32-1589418 | |||||
| 9 | 97850T | ELBOW, 90 Degree, Breather | 2 | 97850 | |||||
| 10 | 25-52188 | GROMMET | 2 | ||||||
| 11 | 3310-807312A1 | CARBURETOR ASSEMBLY | 1 | (SEE "CARBURATOR (MERCARB - 2 BARREL)" FOR BREAKDOWN) | |||||
| 12 | 70125A02 | COVER, Choke | 1 | 70125A1 | |||||
| 13 | 10-33047 | SCREW | 3 | This Part is No Longer Available | |||||
| 14 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 3 | ||||||
| 15 | 54-33036 | RETAINER | 3 | ||||||
| 16 | 22-54090 | ELBOW (90 DEG.) | 1 | ||||||
| 17 | 16-70237 | STUD, (.312-18/.312-24 x 2.620) | 2 | ||||||
| 17 | 16-70236 | 700-22482 | STUD, (.312 x 1.500) | 2 | |||||
| 18 | 805489T | BRACKET | 1 | ||||||
| 19 | 12-20084 | WASHER, (.328 x .562 x .062) | 4 | ||||||
| 20 | 11-862902 | 700-19354 | NUT, (.9375-24) | 4 | 11-25594 | ||||
| 21 | 16-38525 | STUD | 1 | ||||||
| 22 | 12-24664 | WASHER, (M4 x 20) | 2 | ||||||
| 23 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 24 | 27-8079821 | GASKET | 1 | 27-807982 | 3 | ||||
| 25 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
| 26 | 12-29245 | 602-98-262-25 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | |||||
| 27 | 11-8267089 | NUT, (.250-28) | 1 | 11-20361 | |||||
| 28 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| - | 27-806871A96 | GASKET SET, Overhaul | 1 |
