5.7LX (4 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Engine Mounting

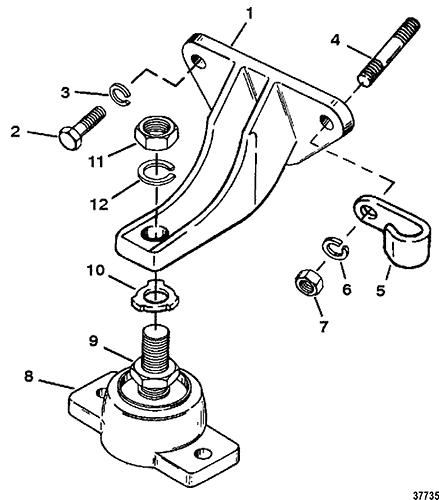

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cyl. Block And Camshaft (5.7Lx Alpha-Bravo)(350 Mag-Alpha)
- Cylinder Block And Camshaft (5.7L Alpha-Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Engine Mounting
- Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
- Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Sea Water Pump Ass'Y (Closed Cooling Sys And Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (5.7L-5.7Lx Alpha)
- Starter Motor
- Starter Motor And Alternator
- Std. Cooling System (5.7L-5.7Lx Bravo) (350 Magnum-Alpha)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 79550A1 | BRACKET (FRONT) | 2 | ||||||
| 2 | 10-68101 | SCREW, (.375-16 x 1.375) | 3 | PORT | |||||
| 3 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 3 | PORT | ||||
| 2 | 10-68101 | SCREW, (.375-16 x 1.375) | 2 | STARBOARD | |||||
| 3 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 2 | STARBOARD | ||||
| 4 | 16-64066 | STUD, (.375-16 x 2.750) Special | 1 | STARBOARD | |||||
| 5 | 54-78945 | J CLAMP, Harness Support | 1 | STARBOARD | |||||
| 6 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 1 | STARBOARD | ||||
| 7 | 11-32219 | NUT, (.375-16) | 1 | STARBOARD | |||||
| 8 | 66284A2 | BASE ASSEMBLY | 2 | 305 C.I.D./350 C.I.D. | |||||
| 9 | 11-20739 | NUT, (.750-16) | 2 | 305 C.I.D./350 C.I.D. | |||||
| 10 | 14-12657 | TAB WASHER | 2 | 305 C.I.D./350 C.I.D. | |||||
| 11 | 11-20739 | NUT, (.750-16) | 2 | 305 C.I.D./350 C.I.D. | |||||
| 12 | 13-68102 | LOCKWASHER, (.750) | 2 | 305 C.I.D./350 C.I.D. | |||||
| 8 | 814263A1 | BASE ASSEMBLY | 2 | 5.7L BRAVO/350 MAGNUM 5.0L BRAVO | |||||
| 9 | 11-816331 | NUT, (.750-16) | 2 | 5.7L BRAVO/350 MAGNUM 5.0L BRAVO | |||||
| 10 | 14-12657 | TAB WASHER | 2 | 5.7L BRAVO/350 MAGNUM 5.0L BRAVO | |||||
| 11 | 11-859126 | NUT | 2 | 11-49252 | 5.7L BRAVO/350 MAGNUM 5.0L BRAVO | ||||
| 12 | 13-68102 | LOCKWASHER, (.750) | 2 | 5.7L BRAVO/350 MAGNUM 5.0L BRAVO |
