5.7LX Bravo EFI (Gen +) GM 350 V-8 1996 - Serial 0F800300 Thru 0K001508 - Cylinder Block And Camshaft

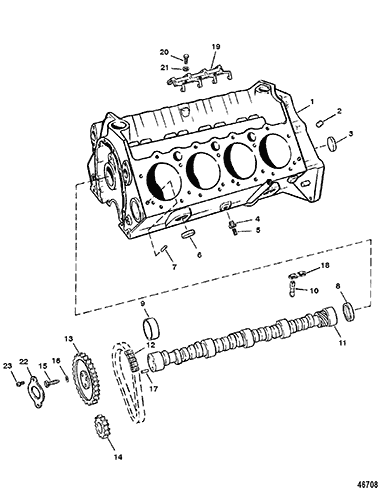

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | NSS | NOT SOLD SEPARATE | 1 | This Part is not sold separately (ORDER LONG BLOCK 807447A1) 1 | |||||
| 2 | 22-48340 | PLUG, (.250-18 x .41) (1/4") | 3 | ||||||
| 3 | 19-816565 | PLUG, Pipe(.468) (15/32") | 5 | ||||||
| 4 | 22-48556 | BUSHING , Reducer (.250 To .125) | 2 | ||||||
| 5 | 22-328022 | PLUG, Pipe (.125-27) | 2 | 22-328021 | |||||
| 6 | 19-34270 | EXPANSION PLUG, (1.625), Expansion (1-5/8" DIA.) | 8 | ||||||
| 7 | 17-35465 | PIN, Dowel (.312), Dowel (5/16" DIA.) | 4 | ||||||
| 8 | 22-72640 | PLUG, Expansion | 1 | ||||||
| 9 | 23-85674 | BEARING SET (SET) | 1 | ||||||
| 10 | 17340T1 | LIFTER, Roller | 16 | 173401 | |||||
| 11 | 431-811658 | CAMSHAFT | 1 | ||||||
| 12 | 17161T | CHAIN, Timing | 1 | 17161 | |||||
| 13 | 43-8116591 | SPROCKET, Camshaft | 1 | ||||||
| 14 | 43-17160 | SPROCKET, Crankshaft | 1 | ||||||
| 15 | 10-845942 | SCREW, (.312-18 x .750) (3/4") | 3 | 10-35339 | |||||
| 16 | 12-848136 | WASHER, (.328 x .680 x .190) | 3 | ||||||
| 17 | 17-843378 | PIN, Dowel (1/4 In. Diameter) | 1 | 17-35312 | |||||
| 18 | 17341T | GUIDE, Lifter | 8 | 17341 | |||||
| 19 | 811662 | RETAINER, Lifter Guide | 1 | ||||||
| 20 | 10-34500 | SCREW, (.312-18 x .625) | 3 | ||||||
| 21 | 12-811664 | WASHER, (.3125 Inch) | 3 | This Part is No Longer Available | |||||
| 22 | 845941 | RETAINER | 1 | 811663 | |||||
| 23 | 10-17343 | SCREW, (.250-20 x .500) | 2 | No longer made, limited availability | |||||
| - | 860186R5 | MARINE LONG BLOCK ENGINE (4 BBL TBI) | 1 | 860186A2 | (MARINE LONG BLOCK ENGINES INCLUDE: INTERNAL PARTS AND CYLINDER HEAD) | ||||
| - | 92-809825 | RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE) | 1 | ||||||
| - | 34227Q02 | SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE) | 1 | 92-342271 |
