5.7LX Bravo EFI (Gen +) GM 350 V-8 1997 - Serial 0K001509 and Up - Intake Manifold And Front Cover

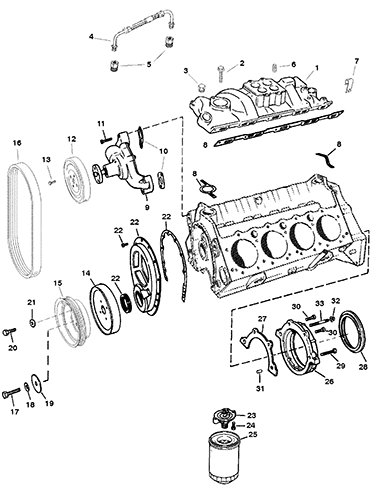

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage
- Wiring Harness (Efi)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807289A1 | MANIFOLD-INTAKE | 1 | This Part is No Longer Available | |||||
| 2 | 10-808010 | BOLT (5/16-18 X 1-3/8 IN.) | 8 | ||||||
| 3 | 22-860075 | PLUG-PIPE (1/2 IN.) | 2 | ||||||
| 4 | 32-807727A2 | TUBE-VENT | 1 | ||||||
| 5 | 22-805563 | FITTING | 2 | ||||||
| 6 | 22-48358T | PLUG-INTAKE (3/8 IN.) | 1 | 22-48358 | |||||
| 7 | 54-73668 | J-CLIP | 1 | ||||||
| 8 | 27-807473A1 | 676-9-61213 | GASKET SET-INTAKE MANIFOLD | 1 | 2 | ||||
| 9 | 8503991 | PUMP ASSEMBLY-WATER | 1 | 850399 | |||||
| 10 | 27-34897 | 676-9-60065 | 700-31380 | GASKET-WATER PUMP | 2 | 2 | |||
| 11 | 10-32132 | SCREW (3/8-16 X 1-3/4 IN.) | 1 | ||||||
| 11 | 10-47688 | SCREW (3/8-16 X 2-3/4 IN.) | 1 | ||||||
| 11 | 16-35342 | STUD | 2 | ||||||
| 12 | 807729T | PULLEY-WATER PUMP | 1 | ||||||
| 13 | 10-47277 | SCREW (5/16-24 X 3/4 IN.) | 4 | ||||||
| 14 | 852946001 | HARMONIC BALANCER | 1 | 852946 | |||||
| 15 | 807730T | PULLEY-CRANKSHAFT | 1 | ||||||
| 16 | 57-861758A1 | BELT-SERPENTINE | 1 | 57-8077552 | (ALPHA) | ||||
| 16 | 57-861757A1 | BELT-SERPENTINE | 1 | 57-8077551 | (BRAVO) | ||||
| 17 | 10-32515 | BOLT (7/16-20 X 2-1/2 IN.) | 1 | ||||||
| 18 | 13-39131 | LOCKWASHER | 1 | ||||||
| 19 | 35332001 | WASHER | 1 | 12-35332 | |||||
| 20 | 10-34352 | BOLT (3/8-24 X 7/8 IN.) | 3 | ||||||
| 21 | WASHER | 3 | |||||||
| 22 | 835005 | TIMING COVER ASSEMBLY | 1 | (SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.) | |||||
| 23 | 71920 | VALVE-FILTER | 1 | 53338 | W/O REMOTE OIL FILTER | ||||
| 24 | 10-54786 | SCREW (5/16-18 X 1-1/4 IN.) | 2 | W/O REMOTE OIL FILTER | |||||
| 25 | 35-866340Q03 | FILTER-OIL | 1 | 14957 | W/O REMOTE OIL FILTER | ||||
| 26 | 852940 | RETAINER-OIL SEAL (REAR) | 1 | ||||||
| 27 | 27-881715 | GASKET | 1 | 27-14241 | 2 | ||||
| 28 | 26-852941 | SEAL-OIL (REAR) | 1 | 2 | |||||
| 29 | 10-8M0064241 | BOLT (1/4-20 X 1-3/4 IN.) | 1 | 10-14243 | |||||
| 30 | 10-14242 | BOLT (1/4-20 X 7/8 IN.) | 2 | ||||||
| 31 | 17-14263 | PIN-DOWEL | 1 | ||||||
| 32 | 11-8167301 | NUT (1/4-20) | 1 | 11-816730 | |||||
| 33 | 16-14827 | STUD | 1 | ||||||
| - | 27-75611A96 | GASKET SET-ENGINE OVERHAUL | 1 |
