Bravo Three - Serial 0F730000 Thru 0M100000 - Gear Housing (Bravo I)

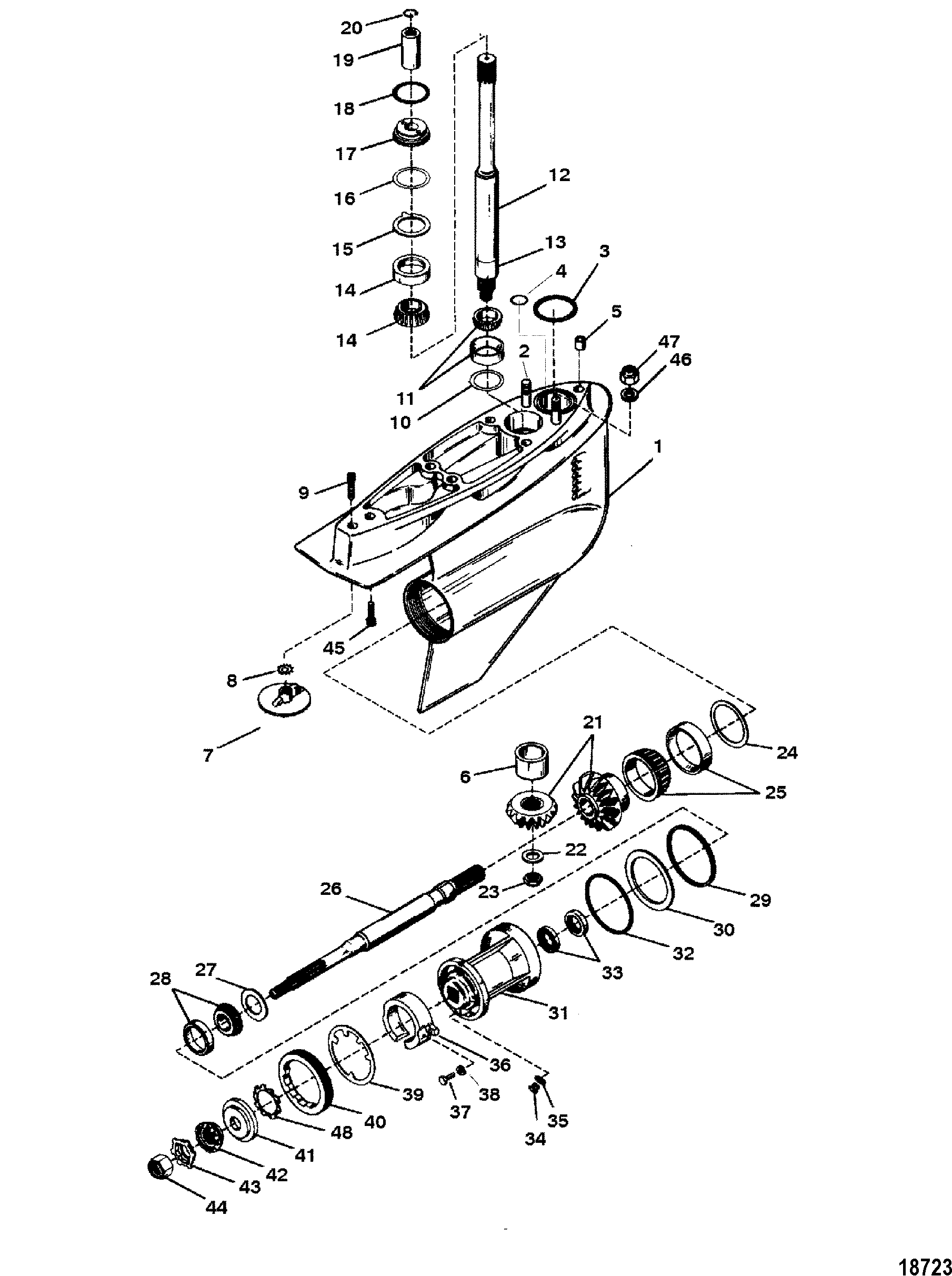

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears (Diesel Engine)
- Driveshaft Housing And Drive Gears (Gasoline Engine)
- Driveshaft Housing Chart (Bravo I Performance)
- Driveshaft Housing Chart (Diesel)
- Driveshaft Housing Chart (Gasoline With Black Trac)
- Driveshaft Housing Chart (Gasoline)
- Gear Housing (Bravo I)
- Gear Housing (Bravo II)
- Gear Housing (Bravo III)(One Piece Housing)
- Gear Housing (Bravo III)(Two Piece Housing)
- Gear Housing Chart (Bravo I Performance)
- Gear Housing Chart (Gasoline and Diesel)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Bravo I)
- Special Tools-Gear Housing (Bravo II)
- Special Tools-Gear Housing (Bravo III)
- Special Tools-Transom
- Stern Drive Unit Chart (Bravo I Performance)
- Stern Drive Unit Chart (Diesel)
- Stern Drive Unit Chart (Gasoline With Black Trac)
- Stern Drive Unit Chart (Gasoline)
- Transom Plate And Shift Cable
- Trim Cylinder Components
- Trim Cylinders And Hydraulic Hoses
- Universal Joint - Shifter Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1656-8866A63 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1656-8866A15 | (STANDARD) | ||||
| - | 1656-8866A55 | GEAR HOUSING ASSEMBLY, Complete | 1 | (BRAVO I PERFORMANCE) | |||||
| 1 | 1656-8866A64 | GEAR HOUSING ASSEMBLY | 1 | 1656-8866A17 | (STANDARD) | ||||
| 1 | 1656-8866A54 | GEAR HOUSING ASSEMBLY | 1 | (BRAVO I PERFORMANCE) | |||||
| 2 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 2 | ||||||
| 3 | 25-33465 | O-RING | 1 | 4 | |||||
| 4 | 26-455771 | SEAL | 1 | 4 | |||||
| 5 | 26-805344 | SEAL, (.625 Outside Diameter) | 1 | ||||||
| 6 | 31-86754T | BEARING, Roller | 1 | 31-86754 | |||||
| 7 | 76214Q5 | ANODE KIT | 1 | 76214A5 | |||||
| 8 | 13-806210 | LOCKWASHER, (.437) | 1 | ||||||
| 9 | 10-806327 | SCREW, (.437-14 x 1.750) | 1 | ||||||
| 10 | 15-92914A1 | SHIM KIT | AR | 6 | |||||
| 11 | 31-99328A1 | BEARING ASSEMBLY, Tapered Roller | 1 | 31-66668A1 | |||||
| 12 | 45-858517A3 | DRIVESHAFT ASSEMBLY | 1 | 45-41629A2 | |||||
| 13 | 31-815901 | RACE, Bearing | 1 | ||||||
| 14 | 31-86748A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 15 | 14-86739 | TAB WASHER | 1 | ||||||
| 16 | 15-86749A1 | SHIM KIT | AR | 6 | |||||
| 17 | 23-92916 | SPACER | 1 | ||||||
| 18 | 25-20826 | 700-82280 | 525-25-20826 | O-RING, (2.230 x .139) | 1 | 4 | |||
| 19 | 88243A3 | COUPLING ASSEMBLY | 1 | ||||||
| 20 | 53-88242 | RING, Retaining | 1 | ||||||
| 21 | 43-14063A1 | GEAR SET, (15/19) | 1 | ||||||
| 22 | 12-86746 | WASHER | 1 | ||||||
| 23 | 11-20739 | NUT, (.750-16) | 1 | ||||||
| 24 | 15-87157A1 | SHIM KIT | AR | 6 | |||||
| 25 | 31-86752A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 26 | 44-41630T | PROPELLER SHAFT | 1 | ||||||
| 27 | 12-90886 | WASHER | 1 | ||||||
| 28 | 31-99328A1 | BEARING ASSEMBLY, Tapered Roller | 1 | 31-66668A1 | |||||
| 29 | 67440T | LOAD RING | 1 | ||||||
| 30 | 12-42256 | THRUST WASHER, (.105 Inch Thick) | 1 | ||||||
| 31 | 41641A8 | CARRIER ASSEMBLY, Bearing | 1 | ||||||
| 32 | 25-31534 | O-RING | 1 | 4 | |||||
| 33 | 26-76868 | SEAL | 2 | 4 | |||||
| 34 | 22-8M0058389 | FITTING KIT, Magnetic, Plug Fill/Drain | 1 | 22-67892A1 | |||||
| 35 | 12-191833 | WASHER, Fiber | 1 | 12-19183 | 4 | ||||
| 36 | 806188Q01 | ANODE ASSEMBLY | 1 | 806188A1 | |||||
| 37 | 10-806290 | SCREW, (#10-32 x .625) | 2 | ||||||
| 38 | 13-69432 | 700-21491 | 525-13-69432 | LOCKWASHER, External (#10) |
2 | ||||
| 39 | 14-18323 | TAB WASHER | 1 | ||||||
| 40 | 8M2011027 | RETAINER | 1 | 79448 | |||||
| 41 | 12-835467Q01 | 700-21301 | THRUST HUB | 1 | 12-8354671 | ||||
| 42 | 12-31211Q03 | WASHER, Splined | 1 | 12-31211A2 | |||||
| 43 | 14-816629Q | 700-21200 | TAB WASHER | 1 | 14-816629 | ||||
| 44 | 11-52707Q1 | PROP NUT | 1 | 11-827614 | |||||
| 45 | 10-90084 | 525-10-90084 | SCREW, (.437-14 x 1.500) | 1 | |||||
| 46 | 12-861854 | WASHER | 2 | 12-91964 | |||||
| 47 | 11-35053 | NUT, (.437-20) | 2 | ||||||
| 48 | 13-423511 | LOCKWASHER, Toothed | 1 | ||||||
| - | 26-76868A04 | SEAL KIT | - | 26-76868A2 |
