Bravo X One - Serial 0M100001 Thru 0W249999 - Universal Joint-Shifter Components (X-Drive)

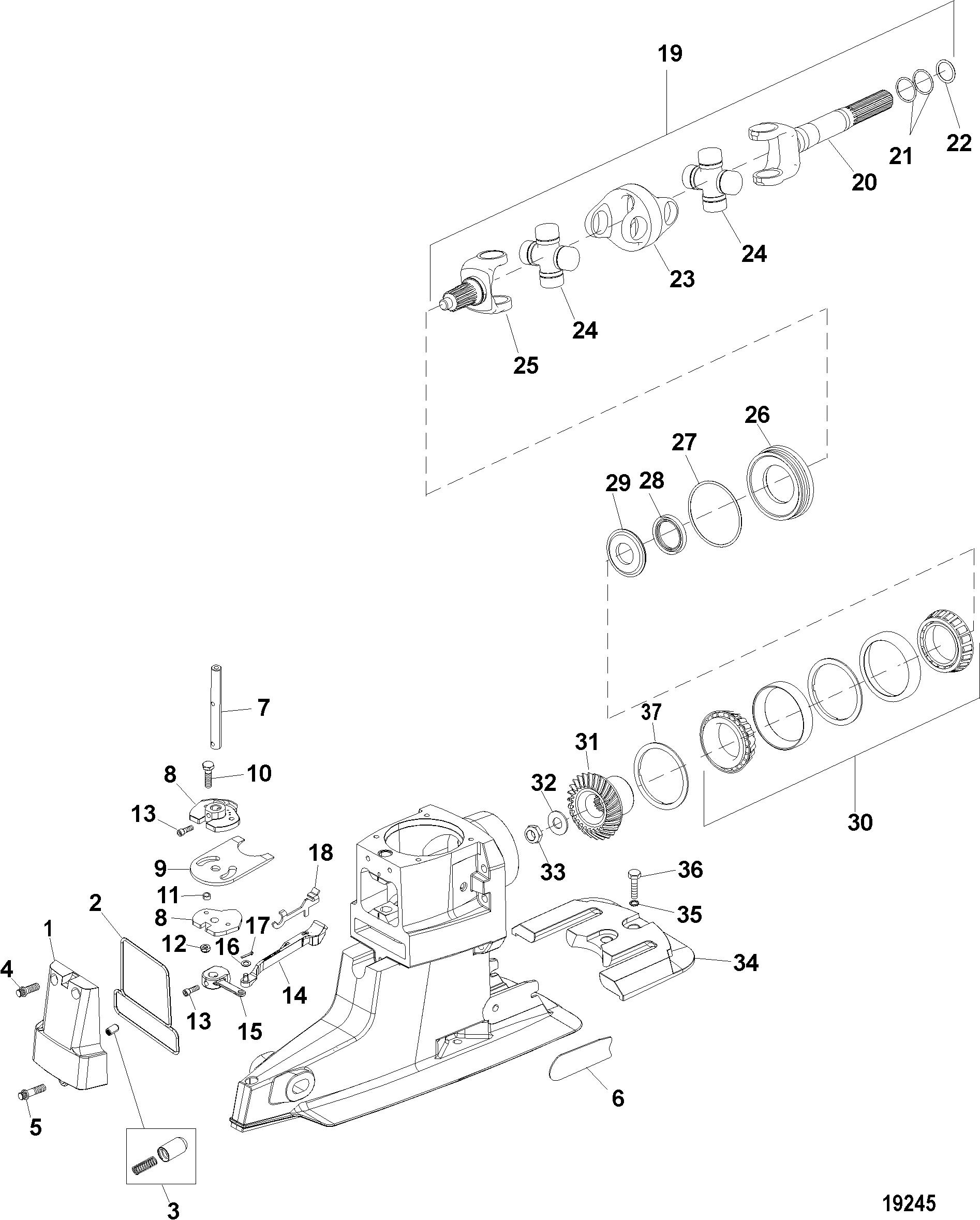

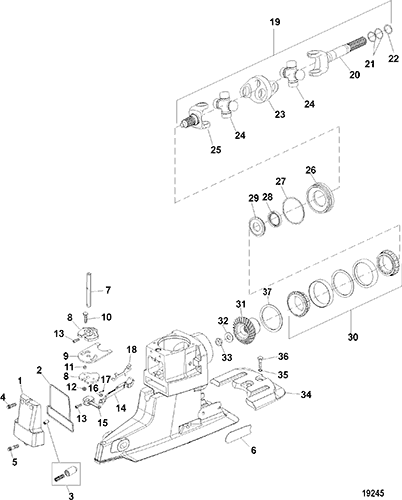

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Drive Shaft Housing And Drive Gears (X-Drive)
- Gear Housing (Bravo One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Mercathode Kit
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom MT Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mount Reservoir) (Design III - 14336A31)
- Pump-Motor (Top MT Reservoir) (Design I - 14336A20)
- Pump-Motor (Top MT Reservoir) (Design II - 14336A25)
- Special Tools - Gear Housing(Bravo One)
- Special Tools - Gear Housing(Bravo Three)
- Special Tools - Gear Housing(Bravo Two)
- Special Tools Drive Shaft Housing
- Speical Tools - Transom
- Sterndrive Unit Chart (Diesel) Bravo X (I-II-III)
- Sterndrive Unit Chart (Gasoline) Bravo X (I-II-III)
- Transom Assembly Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
- Trim Pump Assembly (Complete)
- Universal Joint-Shifter Components (X-Drive)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 12717A1 | 525-12717A1 | COVER ASSEMBLY, Back | 1 | |||||
| 2 | 12708 | 676-9-78001 | 525-12708 | SEAL | 1 | ||||
| 3 | 865711A02 | 525-865711A02 | DETENT ASSEMBLY | 1 | 14497A2 | ||||
| 4 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 2 | |||
| 5 | 10-87158 | 525-10-87158 | SCREW, (.375-16 x 1.875) | 1 | |||||
| 6 | 805261A1 | 525-805261A1 | WEAR PAD KIT | 1 | |||||
| 7 | 12711 | 700-21418 | 525-12711 | SHAFT, Shifter | 1 | ||||
| 8 | 806552A1 | 525-806552A1 | YOKE AND CAM ASSEMBLY | 1 | |||||
| 9 | 806552 | 525-806552 | YOKE, Shifter, Shifter | 1 | |||||
| 10 | 10-805733 | SCREW, (.250-28 x 1.00) | 2 | ||||||
| 11 | 23-12706 | 525-23-12706 | SPACER, (.194 x .375) | 2 | |||||
| 12 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) Stainless Steel | 2 | |||||
| 13 | 10-38615 | 525-10-38615 | SCREW, (.250-28 x .750) | 1 | |||||
| 14 | 861175A2 | 525-861175A2 | SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever | 1 | |||||
| 15 | NSS | NOT SOLD SEPARATE, Lever, Shift | 1 | This Part is not sold separately | |||||
| 16 | 12-20583 | 525-12-20583 | WASHER | 1 | |||||
| 17 | 18-26953 | 525-18-26953 | COTTER PIN | 1 | |||||
| 18 | 86776 | 525-86776 | LATCH | 1 | |||||
| 19 | 865425A03 | 525-865425A03 | UNIVERSAL JOINT ASSEMBLY, Gray | 1 | 862129A1 | (Meritor Assembly) SN# 0M750174 & Below | |||
| 19 | 865425A03 | 525-865425A03 | UNIVERSAL JOINT ASSEMBLY, Black | 1 | (GKN Assembly) SN# 0M750175 & Up | ||||
| 20 | NSS | NOT SOLD SEPARATE, Yoke Assembly, Coupler End | 1 | This Part is not sold separately (Meritor Assembly) SN# 0M750174 & Below | |||||
| 20 | 866133A01 | YOKE, Splined, Yoke Assembly, Coupler End | 1 | (GKN Assembly) SN# 0M750175 & Up | |||||
| 21 | 25-29845 | 525-25-29845 | O-RING, (.924 x .103) | 2 | |||||
| 22 | 25-35027 | 676-9-76507 | 700-81180 | 525-25-35027 | O-RING, (1.046) | 1 | |||
| 23 | NSS | NOT SOLD SEPARATE, Socket, Center | 1 | This Part is not sold separately (Meritor Assembly) SN# 0M750174 & Below | |||||
| 23 | 866137T | SOCKET, Center, Socket, Center | 1 | (GKN Assembly) SN# 0M750175 & Up | |||||
| 24 | 862132T | 525-862132T | CROSS AND BEARING | 2 | (Meritor Assembly) SN# 0M750174 & Below | ||||
| 24 | 866136A01 | CROSS AND BEARING | 2 | (GKN Assembly) SN# 0M750175 & Up | |||||
| 25 | NSS | NOT SOLD SEPARATE, Yoke, Gear End | 1 | This Part is not sold separately (Meritor Assembly) SN# 0M750174 & Below | |||||
| 25 | 866134T | YOKE, Yoke, Gear End | 1 | (GKN Assembly) SN# 0M750175 & Up | |||||
| 26 | 11-862118A2 | RETAINER/SEAL KIT | 1 | ||||||
| 27 | 25-861844 | 525-25-861844 | O-RING | 1 | |||||
| 28 | 26-807006 | 700-86730 | 525-26-807006 | SEAL, Oil | 1 | ||||
| 29 | 12-862134 | 525-12-862134 | WASHER | 1 | |||||
| 30 | 31-86763A3 | 525-31-86763A3 | BEARING ASSEMBLY, Tapered | 1 | SN# 0M198372 & Below | ||||
| 30 | 31-86763A04 | 525-31-86763A04 | BEARING ASSEMBLY, Tapered Roller | 1 | SN# 0M198373 & Up | ||||
| 31 | 43-887906A1 | 525-43-887906A1 | GEAR SET, (29/27) | 1 | 43-883476A1 | ||||
| 31 | 43-887903A1 | 525-43-887903A1 | GEAR SET, (32/27) | 1 | 43-883473A1 | ||||
| 31 | 43-887909A1 | GEAR SET, (30/23) | 1 | 43-883479A1 | |||||
| 31 | 43-883479A1 | GEAR, Pinion (23 Tooth) | 1 | 43-858334T | (Bravo One X 1.65:1 Ratio) | ||||
| 32 | 12-861832 | 525-12-861832 | WASHER | 1 | |||||
| 33 | 11-22339 | 700-28360 | 525-11-22339 | NUT, (.625-18) | 1 | 11-97522 | |||
| 34 | 821630Q1 | 700-12712 | 525-821630Q1 | ANODE ASSEMBLY | 1 | ||||
| 35 | 13-35479 | 525-13-35479 | LOCKWASHER, (.375) | 2 | |||||
| 36 | 10-65210 | 525-10-65210 | SCREW, (.375-16 x 1.00) | 2 | |||||
| 37 | 15-888927028 | 525-15-888927028 | SHIM, (.028) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927029 | 525-15-888927029 | SHIM, (.029) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927030 | 525-15-888927030 | SHIM, (.030) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927031 | 525-15-888927031 | SHIM, (.031) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927032 | 525-15-888927032 | SHIM, (.032) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927033 | 525-15-888927033 | SHIM, (.033) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927034 | 525-15-888927034 | SHIM, (.034) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927035 | 525-15-888927035 | SHIM, (.035) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927036 | 525-15-888927036 | SHIM, (.036) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927037 | 525-15-888927037 | SHIM, (.037) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927038 | 525-15-888927038 | SHIM, (.038) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927039 | 525-15-888927039 | SHIM, (.039) | AR | SN# 0M198373 & Up | ||||
| 37 | 15-888927040 | 525-15-888927040 | SHIM, (.040) | AR | SN# 0M198373 & Up | ||||
| NS | 26-16709A2 | 700-87480 | 525-26-16709A2 | SEAL KIT, Driveshaft Housing | 1 |
