Bravo XR Three - Serial 0W240000 and Up - Gimbal Ring and Steering Lever

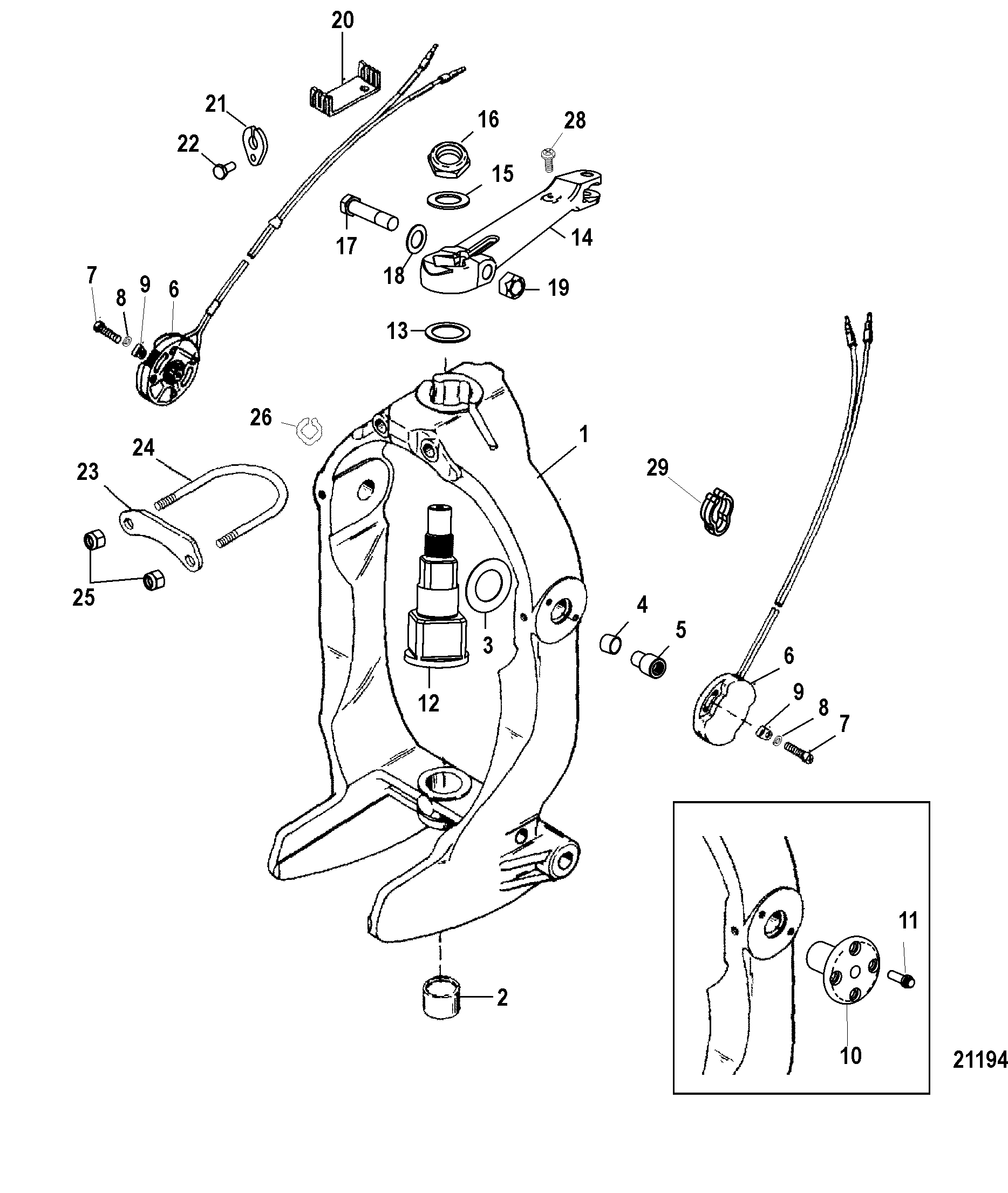

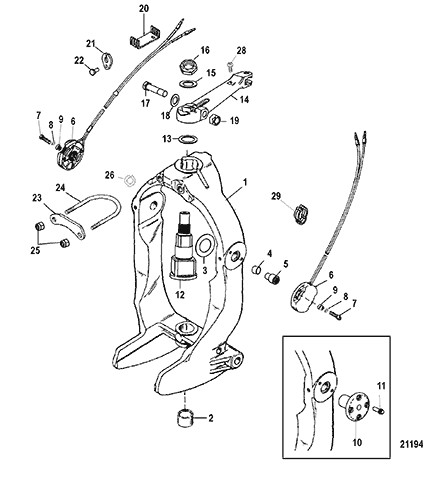

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Bell Housing (Integrated and Hi Performance Transom)
- Continuity Kit
- Driveshaft Housing and Drive Gears
- Gear Housing (Bravo I XR)
- Gear Housing (Bravo I XR-SportMaster)(0M955633 and Below)
- Gear Housing (Bravo I XR-SportMaster)(0M955634 and Up)
- Gear Housing (Bravo III)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing (Integrated Transom)
- Gimbal Housing Cover
- Gimbal Ring (Integrated Transom)
- Gimbal Ring and Steering Lever
- Mercathode Kit
- Mercathode Kit (Integrated Transom)
- Power Steering Actuator (Integrated Transom)
- Power Steering Actuator (Magnum And Hi-Performance Transom)
- Special Tools (Driveshaft Housing)
- Special Tools (Gear Housing Bravo I)
- Special Tools (Transom)
- Sterndrive Unit Chart, Bravo And Bravo I XR (SportMaster)
- Sterndrive Unit Chart, Bravo I-III XR (Integrated Transom)
- Sterndrive Unit Chart, Bravo I-III XR (Standard Transom)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0062440 | GIMBAL RING ASSEMBLY | 1 | 822374A4 | (Magnum Transom)(SmartCraft) SN# 0W465664 & Below | ||||
| 1 | 822374A17 | GIMBAL RING ASSEMBLY | 1 | 822374A3 | (Hi Performance With Or Without Trim Sender) SN# 0W168455 & Below | ||||
| 1 | 8M0062440 | GIMBAL RING ASSEMBLY | 1 | 822374A14 | (Magnum Transom)(SmartCraft) SN# 0W465665 & Up | ||||
| 1 | 8M0063519 | GIMBAL RING ASSEMBLY | 1 | 866456A01 | (Magnum Transom)(SEACORE) | ||||
| 1 | 822374A17 | GIMBAL RING ASSEMBLY | 1 | (Hi Performance With Or Without Trim Sender) SN# 0W168456 & Up | |||||
| 2 | 23-847638 | BUSHING | 1 | ||||||
| 3 | 12-41721 | WASHER | 2 | ||||||
| 4 | 23-847637 | BUSHING | 2 | (Magnum Transom Only) | |||||
| 5 | 10-86801 | SCREW, Hinge Pin | 2 | (Magnum Transom) | |||||
| 6 | 805320A03 | SWITCH ASSEMBLY, Trim Sender/Trim Limit | 1 | 805320A1 | (Magnum Series Transom) (SmartCraft with Analog Gauges) | ||||
| NS | 805134A4 | ROTOR KIT, Trim Sender | AR | (For Use With Magnum Trim Sender) | |||||
| 7 | 10-37978 | SCREW, (#10-32 x .750) Stainless Steel | 4 | (Magnum Transom) | |||||
| 8 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 4 | (Magnum Transom) | |||||
| 9 | 57008 | RETAINER | 4 | (Magnum Transom) | |||||
| 10 | 8219971 | PIN, Hinge | 2 | (Hi Performance) | |||||
| 11 | 10-840907 | SCREW, (.250-20 x .750) | 8 | (Hi Performance) | |||||
| 12 | 98230A1 | SHAFT ASSEMBLY, Upper Swivel | 1 | ||||||
| 12 | 866718A01 | SHAFT ASSEMBLY, Upper Swivel | 1 | SEACORE | |||||
| 13 | 12-98548 | WASHER, (1.125 ) | 1 | ||||||
| 14 | 866322A01 | LEVER ASSEMBLY, Steering | 1 | 98262A1 | |||||
| 15 | 12-85344 | WASHER, (.750 Inside Diameter) | 1 | ||||||
| 16 | 11-8M2014641 | NUT, (.750-16) | 1 | 11-82671323 | |||||
| 17 | 10-807204 | SCREW, (.437-20 x 2.00) | 1 | ||||||
| 18 | 12-861854 | WASHER, (.453 x .750 x .032) Stainless Steel | 1 | ||||||
| 19 | 11-8M2008293 | NUT, (.437-20) | 1 | ||||||
| 20 | 79146 | RETAINER | 1 | ||||||
| 21 | 54-12078 | CLAMP | 1 | ||||||
| 22 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 23 | 816510T | BRACKET | 1 | ||||||
| 24 | 10-805164 | U BOLT | 1 | (Magnum Transom)(SmartCraft) SN# 0W465664 & Below | |||||
| 24 | 10-805164 | U BOLT | 1 | (Hi Performance With Or Without Trim Sender) SN# 0W168455 & Below | |||||
| 24 | 10-866324 | U BOLT | 1 | (Magnum Transom)(SmartCraft) SN# 0W465665 & Up | |||||
| 24 | 10-866324 | U BOLT | 1 | (Hi Performance With Or Without Trim Sender) SN# 0W168456 & Up | |||||
| 25 | 11-862903 | NUT, (.375-24) | 2 | (Magnum Transom)(SmartCraft) SN# 0W465664 & Below | |||||
| 25 | 11-862903 | NUT, (.375-24) | 2 | (Hi Performance With Or Without Trim Sender) SN# 0W168455 & Below | |||||
| 25 | 11-859116 | NUT, (.437-20) | 2 | (Magnum Transom)(SmartCraft) SN# 0W465665 & Up | |||||
| 25 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 2 | (Magnum Transom)(SEACORE) | ||||
| 25 | 11-859116 | NUT, (.437-20) | 2 | (Hi Performance With Or Without Trim Sender) SN# 0W168456 & Up | |||||
| 26 | 54-818557 | CLAMP | 1 | ||||||
| 28 | 10-45742 | SCREW, (.190-32 x .312) | 1 | ||||||
| 28 | 10-807754 | SCREW, (#10-24 x .38) | 1 | ||||||
| 29 | 54-818557001 | CLAMP | 1 | ||||||
| NS | 805130A6 | SENDER KIT, Dual Station | 1 |
